31061103 Metz

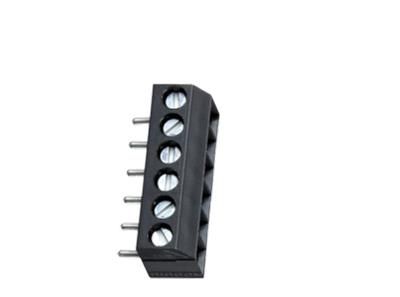

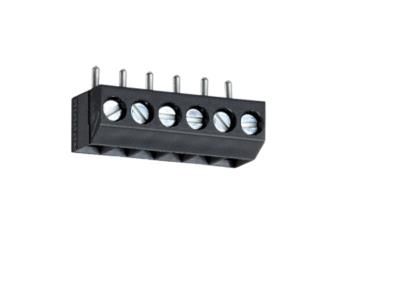

1/5Page P/N Data Sheet 310611xx RT063xxVBWC xx=number of poles 2017/01/24 Illustration see enlarged drawing at the end of the document Product specification screw type terminal block, solderable centerline 3.50 mm, direction of connection vertical 0 wire protector, fittable without loss of poles color black 2/5Page P/N Data Sheet 310611xx RT063xxVBWC xx=number of poles 2017/01/24 Technical Data General Data Tightening torque SEV 0.15 Nm 3 lb-in Tightening torque UL 3.4 mm Solder pin length 2 min. number of poles 16 max. number of poles CTI 600 Insulating material class clearance/creepage dist. 2.1 mm IP 00 protection category Overvoltage category III III II Pollution degree 3 2 2 Rated voltage 160 V 400 V 400 V Rated test voltage 2.5 kV 2.5 kV 2.5 kV Connection data 0.33 - 1.5 mm / AWG 22 - 16 Rated wiring solid wire 0.5 - 2.0 mm / AWG 20 - 14 Rated wiring stranded wire Approvals V / A / AWG 150 / 10 / 28 - 16 125 V / 13.5 A / T60 1.0 mm Material PA66 insulating material flammability class V0 960 Glow-Wire Flammability GWFI 775 Glow-Wire Flammability GWIT CuZn terminal body material Ni + Sn terminal body surface Zn Cr(VI)-frei/free screw surface wire protector material CuSn Sn wire protector surface M2 screw thread Climatic properties 105 C upper limit temperature lower limit temperature -40 C
