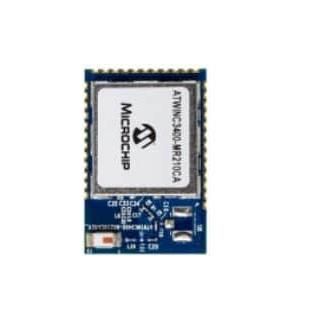

ATWINC3400-MR210CA122-T Microchip

ATWINC3400-MR210xA IEEE 802.11 b/g/n Network Controller with Integrated Bluetooth Low Energy Module Introduction The ATWINC3400-MR210xA is an IEEE 802.11 b/g/n RF/Baseband/Medium Access Control (MAC) network controller with Bluetooth Low Energy module. The ATWINC3400-MR210xA modules are Bluetooth 5.0 certified. This module is optimized for low power and high performance mobile applications. This module features small form factor with integrated Power Amplifier (PA), Low-Noise Amplifier (LNA), Transmit/Receive (T/R) switch (for Wi-Fi and Bluetooth) and Power Management Unit (PMU). The ATWINC3400-MR210CA integrates a chip antenna while the ATWINC3400-MR210UA adds a micro co-ax (u.FL) connector for connecting to an external antenna. The ATWINC3400-MR210xA module requires a 32.768 kHz clock for sleep operation. The ATWINC3400-MR210xA module utilizes highly optimized IEEE 802.11 Bluetooth coexistence protocols, and provides Serial Peripheral Interface (SPI) to interface with the host controller. The references to the ATWINC3400-MR210xA module include the following devices: ATWINC3400-MR210CA Integrates a chip antenna ATWINC3400-MR210UA Adds a micro co-ax (u.FL) connector for connecting to an external antenna Features Wi-Fi features: IEEE 802.11 b/g/n RF/PHY/MAC IEEE 802.11 b/g/n (1x1) with Single Spatial Stream, up to 72 Mbps PHY Rate in a 2.4 GHz ISM Band Integrated Chip Antenna or Micro Co-ax (U.FL) Connector for an External Antenna Superior Sensitivity and Range via Advanced PHY Signal Processing Advanced Equalization and Channel Estimation Advanced Carrier and Timing Synchronization Supports Soft-AP Supports IEEE 802.11 WEP, WPA and WPA2 Personal and WPA2 Enterprise (firmware version 1.3.1 or later) Superior MAC Throughput through Hardware Accelerated Two-Level A-MSDU/A-MPDU Frame Aggregation and Block Acknowledgment On-Chip Memory Management Engine to Reduce the Host Load Operating Temperature Range from -40C to +85C Input/Output voltage ranges from 2.7V to 3.6V Power supply (VBAT) ranges from 3.0V to 4.2V Wi-Fi Alliance Certified for Connectivity and Optimizations ID: WFA62065 Integrated On-Chip Microcontroller SPI Host Interface Integrated Flash Memory for Wi-Fi and Bluetooth System Software Low Leakage On-Chip Memory for State Variables Fast AP Re-Association (150 ms) Datasheet DS70005350D-page 1 2021 Microchip Technology Inc. ATWINC3400-MR210xA On-Chip Network Stack to Offload MCU Network Features: Firmware version 1.2.0 or later TCP, UDP, DHCP, ARP, HTTP, TLS, DNS and SNTP Bluetooth features: ATWINC3400-MR210xA Bluetooth Low Energy Certification (end product) QD ID: 112092 Adaptive Frequency Hopping (AFH) Superior Sensitivity and Range DS70005350D-page 2 Datasheet 2021 Microchip Technology Inc.
