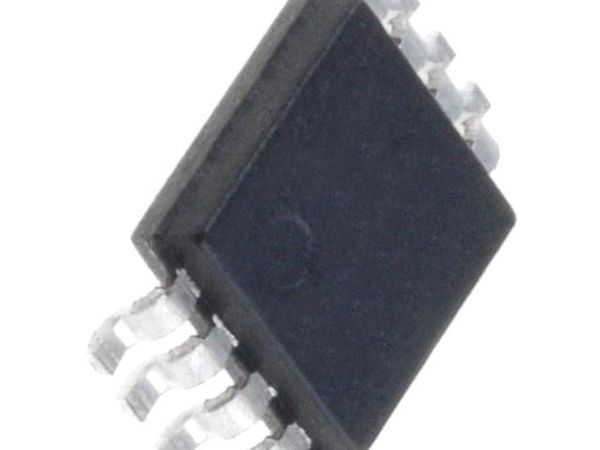

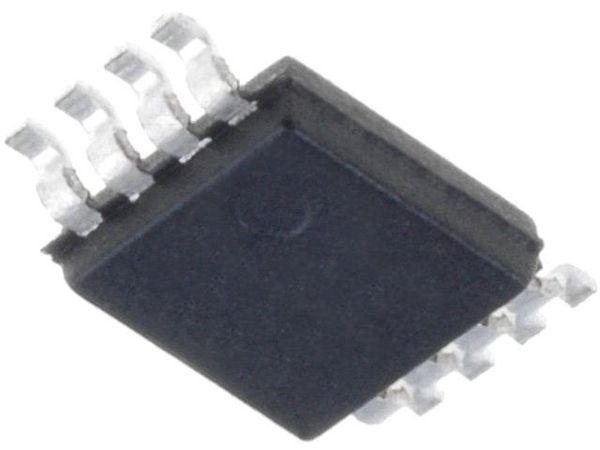

MCP9808-EMS Microchip

MCP9808 0.5C Maximum Accuracy Digital Temperature Sensor Features Description Accuracy: Microchip Technology Inc.s MCP9808 digital temperature sensor converts temperatures between - 0.25 (typical) from -40C to +125C -20C and +100C to a digital word with - 0.5C (maximum) from -20C to 100C 0.25C/0.5C (typical/maximum) accuracy. - 1C (maximum) from -40C to +125C The MCP9808 comes with user-programmable registers User-Selectable Measurement Resolution: that provide flexibility for temperature sensing - +0.5C, +0.25C, +0.125C, +0.0625C applications. The registers allow user-selectable User-Programmable Temperature Limits: settings such as Shutdown or Low-Power modes and - Temperature Window Limit the specification of temperature Alert window limits and critical output limits. When the temperature changes - Critical Temperature Limit beyond the specified boundary limits, the MCP9808 User-Programmable Temperature Alert Output outputs an Alert signal. The user has the option of setting Operating Voltage Range: 2.7V to 5.5V the Alert output signal polarity as an active-low or active- Operating Current: 200 A (typical) high comparator output for thermostat operation, or as a Shutdown Current: 0.1 A (typical) temperature Alert interrupt output for microprocessor- 2 2-wire Interface: I C/SMBus Compatible based systems. The Alert output can also be configured as a critical temperature output only. Available Packages: 2x3 DFN-8, MSOP-8 This sensor has an industry standard 400 kHz, 2-wire, 2 Typical Applications SMBus/I C compatible serial interface, allowing up to eight or sixteen sensors to be controlled with a single General Purpose serial bus (see Table 3-2 for available Address codes). Industrial Applications These features make the MCP9808 ideal for Industrial Freezers and Refrigerators sophisticated, multi-zone, temperature-monitoring applications. Food Processing Personal Computers and Servers Package Types PC Peripherals Consumer Electronics 8-Pin 2x3 DFN* 8-Pin MSOP Handheld/Portable Devices V SDA 1 8 SDA 1 8 V DD DD 2 7 A0 Temperature Accuracy SCL SCL 2 7 A0 EP 9 3 6 A1 Alert A1 Alert 3 6 40% T = -20C, 25C, 85C, 100C 4 5 A2 A GND A2 GND 4 5 V = 3.3V DD 854 units 30% * Includes Exposed Thermal Pad (EP) see Table 3-1. 20% 10% 0% Temperature Accuracy (C) 2011 Microchip Technology Inc. DS25095A-page 1 Occurrences -0.5 -0.4 -0.3 -0.2 -0.1 0.0 0.1 0.2 0.3 0.4 0.5MCP9808 Functional Block Diagram Hysteresis Shutdown Critical Trip Lock Alarm Window Lock Clear Alert Alert Status Output Control Critical Alert only Band Gap Alert Polarity Temperature Sensor Alert Comp./Int. Configuration Temperature ADC T Limit UPPER T Limit LOWER +0.5C T Limit CRITICAL +0.25C +0.125C Manufacturer ID +0.0625C Device ID/Rev Resolution Register Pointer 2 SMBus/Standard I C Interface V GND Alert SDA SCL A0 A1 A2 DD DS25095A-page 2 2011 Microchip Technology Inc.
