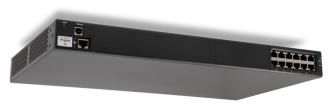

PD-95xx-10GC Family Multi-port IEEE802.3bt Compliant 60W PoE Midspan Family with Network Management Specifications Summary Feature Description Microchips PD-95xx-10GC is a family Number of Ports 6/12/24 of Power over Ethernet (PoE) mid- Data Rate 10/100/1000 Mbps, 2.5/5/10 Gbps spans offering 60W power per the AC Input Voltage: 100 to 240 Vac IEEE802.3bt standard. The family is AC Input Current: available in 6-, 12- and 24-port con- AC Input Power 6 port 450W unit - 5A 100 Vac Requirement 12 port 950W unit - 9A 100 Vac figurations. Input power is provided 24 port 950W unit - 12A 100 Vac AC Frequency: 50/60 Hz through a universal AC voltage con- User Port Power: 60 Watts nector. The product is designed for Output Power Aggregate Power: 450W (6 port), 950W (12 port) or 950W (24 port) use with a standard 10/100/1000 and Spare Pair: 4/5(+), 7/8(-) 10G BaseT Ethernet network over a Power over Ethernet Output Data Pair: 3/6(+), 1/2(-) Nominal output voltage: 54 Vdc standard category 6A or better cabling L x W x H plant, according to the IEEE802.3bt Dimensions 435 mm x 271 mm x 44 mm standard. 17.2 in. x 10.7 in. x 1.75 in 6 Port - 4.54 Kg Net Weight 12 Port - 5.34 Kg The PD-95xx-10GC family incorpo- 24 port - 5.48 Kg rates power management through Ports - 6 port Gang Shielded RJ-45, EIA 568A and 568B Microchips Powerview Pro software AC connector - IEC 69320 type C14 Connectors DC connector - Terminal Block Connector. two positive (+) and two allowing the user to monitor and negative. (-) terminals control the PD95xx-10GC via a remote Communication Port - USB Type A and Shielded RJ45 network management station. System indicator: AC Power Green User indicator: Valid Load -Green (4 Pair) Indicators User indicator: Valid Load -Yellow (2 Pair) User indicator: Overload or Short circuit - Green blinks 0.5 Hz Management PowerView Pro included Features Operating Ambient Temperature: 32F to 104F (0C to +40C) Supports IEEE802.3bt type 3 standard PDs Operating Humidity: Maximum 90%, Non-Condensing Environmental Conditions Storage Temperature: 4F to +158F (20C to +70C) IEEE 802.3af/at backward compatible Storage Humidity: Maximum 95%, Non-condensing Legacy and pre-standard support Operating Altitude -1312 to 10,000ft (-400 to 3048m) 6, 12 and 24 ports Hazardous Substances CE, WEEE Supports 10/100/1000 Mbps, Warranty 3 years 2.5/5/10 Gbps Extended Warranty Contact Microchip Available PowerView Pro, remote web-based Reliability MTBF: 100,000hrs 25C SNMPv3 power management 234 BTU/Hr (6 Port) environment Thermal Rating 432 BTU/Hr (12 Port) 525 BTU/Hr (24 Port) Regulatory Compliance IEEE 802.3bt FCC Part 15, Class B Electromagnetic Emission EN 55032 Class B and Immunity EN 55024 VCCI UL/IEC/EN 62368-1 Safety Please contact Microchip for a complete list of certifications microchip.comTechnical Support For technical support please visit the Microchip Technical Support Portal www.microchip.com/support. Management Software PowerView Pro software is available on Microchips Software Library. Ordering Information Part Number Name Ports PD-9506-10GC/AC/-xx PD-9506-10GC/AC-AU - Australia Power Cord 6-port BT midspan, 4-pairs 60W/port, PD-9506-10GC/AC-EK - European Union and United Kingdom Power Cord PD-9506-10GC managed, 10/100/1000/10G BaseT, AC input PD-9506-10GC/AC-JP - Japan Power Cord PD-9506-10GC/AC-US - United States Power Cord PD-9512-10GC/AC/-xx PD-9512-10GC/AC-AU - Australia Power Cord 12-port BT midspan, 4-pairs 60W/port, PD-9512-10GC/AC-EK - European Union and United Kingdom Power Cord PD-9512-10GC managed, 10/100/1000/10G BaseT, AC input PD-9512-10GC/AC-JP - Japan Power Cord PD-9512-10GC/AC-US - United States Power Cord PD-9524-10GC/AC/-xx PD-9524-10GC/AC-AU - Australia Power Cord 24-port BT midspan, 4-pairs 60W/port, PD-9524-10GC/AC-EK - European Union and United Kingdom Power Cord PD-9524-10GC managed, 10/100/1000/10G BaseT, AC input PD-9524-10GC/AC-JP - Japan Power Cord PD-9524-10GC/AC-US - United States Power Cord Contact Microchip for other options About Microchip mPoE Microchip multi-Power over Ethernet (mPoE) is a technology that powers any wired network device seamlessly and efficiently, making it the ideal solution for Ethernet-based applications. Leveraging a uniquely designed algorithm, this technology solves interoperability issues between different PoE standards and legacy solutions to provide an international network power standard. As a pioneer in PoE technology, we offer a comprehensive end-to-end portfo - lio of PoE solutions comprised of PoE ICs and PoE systems (midspans/injectors and switches). The Microchip name and logo and the Microchip logo are registered trademarks and XpressConnect is a trademark of Microchip Technology Incorporated in the U.S.A. and other countries. All other trademarks mentioned herein are property of their respective companies. 2021, Microchip Technology Incorporated. All Rights Reserved. 6/21 DS00003967B
