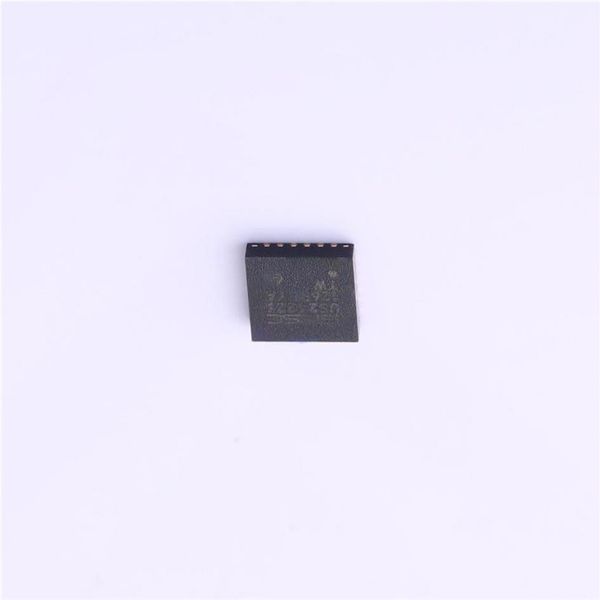

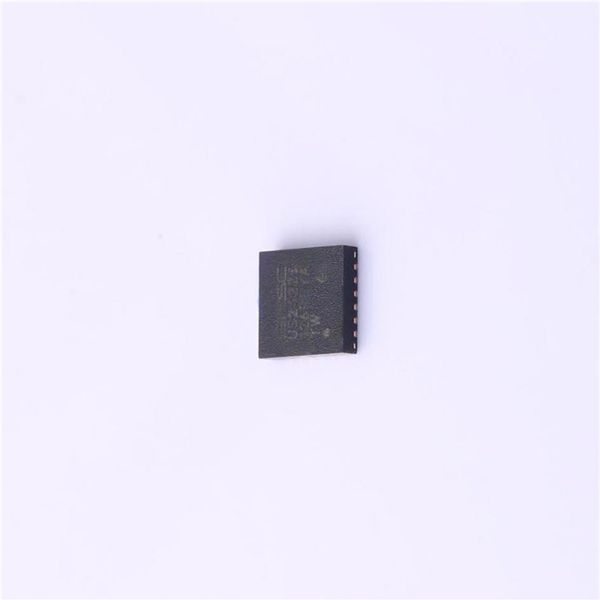

USB2422 2-Port USB 2.0 Hi-Speed Hub Controller General Description Highlights The Microchip USB2422 hub is a low-power, single High performance, low-power, small footprint hub transaction translator, hub controller IC with two down- controller IC with two downstream ports stream ports for embedded USB solutions. The hub Fully compliant with the USB 2.0 Specification controller can attach to an upstream port as a Hi-Speed Optimized for minimal bill-of-materials and low- and Full-Speed hub or as a Full-Speed only hub. The cost designs hub supports Low-Speed, Full-Speed, and Hi-Speed (when configured as a Hi-Speed hub) downstream Applications devices on the enabled downstream ports. LCD monitors and TVs All required resistors on the USB ports are integrated into the hub. This includes all series termination resis- Multi-function USB peripherals tors on D+ and D- pins and all required pull-down and PC motherboards pull-up resistors on D+ and D- pins. The over-current Set-top boxes, DVD players, DVR/PVR sense inputs for the downstream facing ports have Printers and scanners internal pull-up resistors. PC media drive bay Portable hub boxes Features Mobile PC docking Supports the USB Battery Charging Specification, Embedded systems Revision 1.1 Gaming consoles Fully integrated USB termination and pull-up/pull- Cable/DSL modems down resistors HDD enclosures Supports a single external 3.3 V supply source KVM switches internal regulators provide 1.2 V internal core volt- age Server front panels On-chip driver for 24 MHz crystal resonator or Point-of-Sale (POS) systems external 24 MHz clock input IP telephony ESD protection up to 6 kV on all USB pins Automobile/home audio systems Supports self-powered operation Thin client terminals The hub contains a built-in default configuration no external configuration options or components are required Downstream ports as non-removable ports Downstream port power control and over-current detection on an individual or ganged basis Supports compound devices on a port-by-port basis 24-pin SQFN (4x4 mm), RoHS-compliant pack- age Commercial temperature range support: 0C to +70C Industrial temperature range support: -40C to +85C 2013 - 2015 Microchip Technology Inc. DS00001726B-page 1USB2422 TO OUR VALUED CUSTOMERS It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced. If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-mail at docerrors microchip.com. We welcome your feedback. Most Current Data Sheet To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
