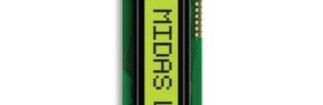

MC11609A6W-SPTLY-V2 Midas

Electra House, 32 Southtown Road Telephone +44 (0)1493 602602 Great Yarmouth, Norfolk Fax +44 (0)1493 665111 NR31 0DU, England Email:sales midasdisplays.com www.midasdisplays.com M C11609A6W-SPTLY-V2 1 x 16 9mm Character Height LCD Module Specification Version: 1 Date: 29/09/2016 Revision Display Features Operating Temp. Range -20C - +70C Viewing Direction 6 OClock STN Yellow/Green Transflective Backlight LED Yellow/Green Controller SPLC780D Characters 1 x 16 Box Quantity Weight / Display Voltage 5V 30 pcs 60 grams Module Size 122.00 x 33.00 x 15.20 mm Character Height 9mm Display Construction Chip on Board * - For full design functionality, please use this specification in conjunction with the SPLC780D specification. (Provided Separately) Optional Variants Display Accessories Physical Fonts Voltage Part Number Description Aspects LCD interconnect board, can be driven from either a MCCMDB-16SIL PC or a single board computer with a USB output. English/Japanese 16 Way, Dual in-line to MCCBL1A16SILP N/A N/A Dual In-line connector -16DILS-150 Cable. 16 Way, Single in-line MCCBL1A16SILP to Single In-line -16SILS-150 connector Cable. Mechanical Specifications Module Size 122.00 x 33.00 x 15.20 ( With Backlight) W x H x D mm Viewing Area W x H mm Hole-to-Hole 115.00 x 25.00 W x H mm Character Size W x H mm Character Pitch 1.16 W mm Dot Size W x H mm Dot Pitch 0.06 x 0.06 W x H mm MC11609A6W-SPTLY-V2 1 x 16 9mm Character Height LCD Module Specification Version: 1 Date: 29/09/2016 Revision
