X-On Electronics has gained recognition as a prominent supplier of 1404KL-04W-B50-B00 DC Fans across the USA, India, Europe, Australia, and various other global locations. 1404KL-04W-B50-B00 DC Fans are a product manufactured by MinebeaMitsumi. We provide cost-effective solutions for DC Fans, ensuring timely deliveries around the world.

1404KL-04W-B50-B00 MinebeaMitsumi

Name: 1404KL-04W-B50-B00
Brand: MinebeaMitsumi
SKU: 1404KL04WB50B00_MinebeaMitsumi
Availability: OutOfStock
Rating: 5 (11 reviews)

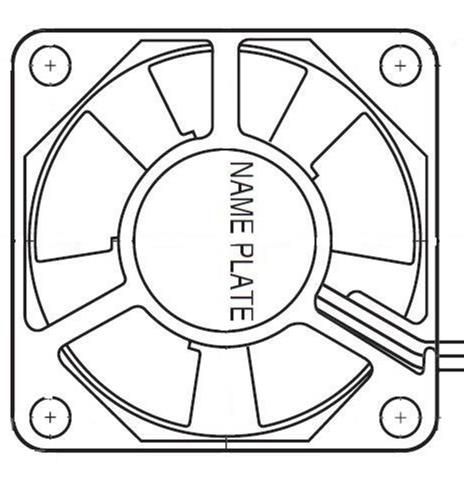

1404KL-04W-B50-B00 electronic component of MinebeaMitsumi

Images are for reference only
See Product Specifications

Part No.	1404KL-04W-B50-B00
Manufacturer:	MinebeaMitsumi
Category:	DC Fans
Description:	DC Fan Axial Ball Bearing 12V 8V to 13.8V 5.6CFM 27dB 35 X 35 X 10mm
Datasheet:	1404KL-04W-B50-B00 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

N/A

Obsolete

1404KL-04W-B50-B00 More Buying Options & Price Grid(s)

Availability	Price	Quantity
0 MOQ : 1 Multiples : 1	1 : USD 11.6325	N/A Obsolete

0 MOQ : 1 Multiples : 1	1 : USD 20.2242 5 : USD 18.3572 10 : USD 17.9934 20 : USD 17.3191	N/A Obsolete

0 MOQ : 600 Multiples : 600	600 : USD 7.0744	N/A Obsolete

0 MOQ : 7 Multiples : 1	7 : USD 13.4296	N/A Obsolete

Specifications

Manufacturer MinebeaMitsumi MinebeaMitsumi
Product Category DC Fans DC Fans
Supply Voltage 12 VDC 12 VDC
Operating Supply Voltage 12 VDC 12 VDC
Airflow 5.6 Cfm 5.6 Cfm
Bearing Type Ball Ball
Frame Dimensions - mm 35 Mm L X 10 Mm W X 35 Mm H 35 Mm L X 10 Mm W X 35 Mm H
Product Range 1404Kl Series 1404Kl Series
Fan Frame Size 35 mm 35 mm
External Depth 10 mm 10 mm
Flow Rate - Imperial 5.6Cu.Ft/Min 5.6Cu.Ft/Min
Flow Rate - Metric 0.16M³/Min 0.16M³/Min
Noise Rating 27Dba 27Dba
Power Connection Type W ire le A ded W ire le A ded
Current Rating 80 mA 80 mA
Case Material Plastic Plastic
Colour Black Black
Current Type DC DC
External Height 35 mm 35 mm
External Width 35 mm 35 mm
Flammability Rating Ul 94V - 0 Ul 94V - 0
Frame Dimensions 35Mm X 35Mm X 10Mm 35Mm X 35Mm X 10Mm
Material Plastic Plastic
Operating Temperature Max 70 C 70 C
Operating Temperature Min - 10 C - 10 C
Power Consumption 0.96 W 0.96 W
Pressure Max 41.0Pa 41.0Pa
Speed Range Max 9000Rpm 9000Rpm
Supply Voltage Dc Max 13.8 VDC 13.8 VDC
Supply Voltage Dc Min 8 VDC 8 VDC
Length 35 mm 35 mm
Brand MinebeaMitsumi MinebeaMitsumi
Cnhts 8414599050 8414599050
Hts Code 8414596590 8414596590
Product Type Dc Fans Dc Fans
Factory Pack Quantity : 400 400
Subcategory Fans, Blowers & Accessories Fans, Blowers & Accessories
Taric 8414592590 8414592590
Tradename Nmb - Mat Nmb - Mat

We are delighted to provide the 1404KL-04W-B50-B00 from our DC Fans category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 1404KL-04W-B50-B00 and other electronic components in the DC Fans category and beyond.
