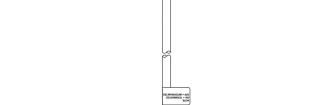

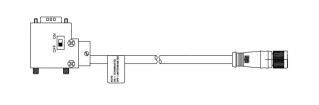

This document was generated on 11/19/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: 1200980057 Status: Active Overview: PROFIBUS Solutions Description: PROFIBUS Straight D-Dub to Micro-Change (M12) Double-Ended Cordset, 5 Poles, Female (Straight), 24 AWG, PUR Cable, 1.0m (3.28 ) Length Documents: Drawing (PDF) RoHS Certificate of Compliance (PDF) Test Summary TS-120065-004-001 (PDF) Series image - Reference only General Product Family Industrial Cordsets Series 120098 EU ELV Connector End A D-Sub (9-pin) Not Relevant Connector End B Micro-Change (M12) EU RoHS China RoHS IP Rating IP40, IP67 Not Reviewed Material - Contact Copper Alloy REACH SVHC Overview PROFIBUS Solutions Not Contained Per - Product Name Micro-Change (M12) ED/30/2017 (7 July Protocol EtherNet 2017)* Region America, Asia, Europe Halogen-Free Type Double Ended Status UPC 78678851471 Not Reviewed Physical For more information, please visit Contact US Cable Diameter 8.00mm (.315 ) CUST NOTE *Product contains Cable Length 1.0m (3.28 ) part(s) with customer Color - Cable Jacket Purple managed Coupling Style Threaded CUST NOTE1 EHS data. These part(s) Gender Female-Male are excluded from Keyway N/A CUST NOTE2 product compliance LED Indicator No status evaluation. Material - Cable Jacket PUR China ROHS 50 Image Material - Connector Body TPU ELV Not Relevant Material - Coupling Nut Nickel-plated Brass RoHS Phthalates Not Contained Material - Plating Mating Gold Net Weight 125.030/g Orientation 90 to Straight Poles 5 Search Parts in this Series Temperature Range - Operating -20 to +80C 120098 Series Wire Size AWG 24 Wire/Cable Type Twisted Pair Electrical Current - Maximum per Contact 4.0A Voltage - Maximum 30V AC/DC Material Info Engineering Number BM5S32PP4M010 Reference - Drawing Numbers Sales Drawing SD-120098-033-001 Test Summary TS-120065-004-001 This document was generated on 11/19/2021 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATIONX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for D-Sub Cables category: Click to view products by Molex manufacturer: Other Similar products are found below : 1200980218 1200980067 RB09P09P-006 RB09P09P-012 RB15P15P-006 RB25P25P-006 RB37P37P-024 172-0906 SHD15P15S-012 SHD15P15S-036 SHD15P15S-060 ACL-10137-2MM RB09P09P-024 319285-3 RS422-OM2 SHD26P26S-060 SHD44P44S-036 73- 6210MM-6 C200H-CN320-EU 49725A 060S2 73231-1321 SDB-50AFFM-SL7A02 49760A 060S2 HDB-26AFFM-SL7A02 30-9503P 30- 9522P 73-6220MM-6 1200980058 1200980066 1200980078 1200980052 1200980093 1200980028 1200980021 1200980127 SDB- 09AFFM-SL7A02 SDB-15AMMM-SL7A01 BB-LDVYCBL 83421-9286 MLDM2L-21P-6K7-18B KSFD1 MM-2J2-021-SS1-41WN HDB- 78AMMM-SL7A05 SDB-37AMMM-SL7A03 SDB-15AFFM-SL7A05 ACC-500-163-R 172-1910 2900907/21.4 VS-25-DSUB-20-LI-2,0 VS-25-DSUB-20-LI-5,0
