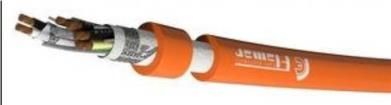

Flamar Standard Cables for Industrial Automation Available in multiple packaging sizes with small minimum order quantities, Flamar provides a complete selection of cables for all industrial automation applications while utilizing in-house design and manufacturing to meet and exceed the most stringent quality requirements at a competitive cost Features and Benefits All cables are UL AWM/CSA recognized or UL listed Delivers a complete selection of cables that adhere to the de-facto reliability standard for industrial automation cables Several jacket materials available Enhances design and application flexibility. (PVC, WSOR*, PUR and TPE) Ensures the correct cable for the required application features is available Cables designed for Flexible or Drag-Chain Solves almost all installation issues installation Flamar Standard Cables (from top to bottom): Temperature ranges for multiple applications down Withstands wide temperature range. Delivers Signal & Control, Servo Motor, Network to -40C (-40F) and up to 105C (221F) operational flexibility 2 Cross sections range from 0.25mm (AWG 24) to Ensures the most common cross sections for 2 2 2.5mm (AWG 14) for Signal & Control, 1.5mm industrial automation applications are available in 2 (AWG 16) to 6.0mm (AWG 10) for Servo Motor, the cable offering 2 2 and from 0.14mm (AWG 26) to 0.5mm (AWG 20) for Network Cables Flame-retardant compliance with UL Vertical Flame Ensures safety for out-of-the-cabinet use Test, UL VW-1, and CSA FT-1 up to CSA FT-4 Flamar standard cables for industrial automation brochure English 987651-3992 Chinese 987651-4141 Applications Industrial Automation Line and Machine Builders Sensors: Brad M8 and M12 Connectors Valves: mPm DIN Valve Connectors Ethernet: Brad M12 Connectors Servo Motors: Brad M23 Connectors Control Cabinets: GWconnect Heavy Duty Connectors Auxiliary Power: Brad Mini-Change Industrial Factory Automation Sensors, valves and Servo Motors Smart I/O modules control cabinets Material Handling Non Automotive/Commercial Vehicles *Weld-Slag and Oil-ResistantFlamar Standard Cables for Industrial Automation Specifications SIGNAL AND CONTROL Temperature Rating Series Environment Installation Halogen Free Voltage Bending Radius Jacket Material Shielded Approval (Min Max) 155210 No UL AWM Standard Flexible +5C 300V > 15xOD PVC 2464/CSA 155211 Yes No 155220 No UL AWM Severe -25C 600V WSOR* +80C 21215/CSA 155221 Yes > 7.5xOD 155230 No UL AWM Harsh Drag Chain Yes 1000V PUR 21223/CSA 155231 Yes -40C 155240 No UL Listed Severe No +105C 300V > 10xOD TPE PLTC 155241 Yes SERVO MOTOR Temperature Rating Bending Jacket Series Environment Installation Halogen Free Voltage Shielded Approval (Min Max) Radius Material 155311 Standard Flexible +5C PVC UL AWM 2570/CSA No > 15xOD 1000V Power UL AWM 21939/CSA (Power) 155321 Severe -25C +80C WSOR* Yes 600V Feedback UL AWM 21215/CSA (Feedback) Drag Chain 155331 Harsh Yes -40C > 10xOD PUR UL AWM 21223/CSA NETWORK Temperature Rating Bending Jacket Series Environment Installation Halogen Free Voltage Shielded Approval (Min Max) Radius Material 155411 Standard Flexible +5C 300V PVC UL AWM 2464/CSA +60C (CC-Link) No +60C (PROFIBUS) 155421 Severe -10C 600V > 15xOD WSOR* Yes UL AWM 21215/CSA +70C (PROFINET) Drag Chain +60C (EtherNet/IP) 155431 Harsh Yes -20C 300V PUR UL AWM 20233/CSA *Weld-Slag and Oil-Resistant Packaging Options www.molex.com/link/flamar Order No. 987651-4581 EUR/0k/GF/2016.04 2016 Molex
