500402

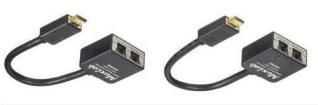

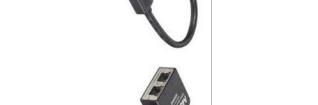

Specifications Environment HDMI 1.4 Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI. Transmission Transparent to the user Bandwidth 225 MHz Signals HDMI 1.4 protocol Connectors HDMI receptacle. Two (2) RJ45S for Cat 5e unshielded or shielded twisted pair. Maximum Distance 480i/p: Cat5e: 150 ft (45 m) Cat6: 200 ft (60 m) HDMI Passive Extender Kit (500402) 720p, 1080i: Cat5e: 150 ft (45 m) Cat6: 200 ft (60 m) 1080p: Cat5e: 100 ft (30 m) Cat6: 150 ft (45 m) Quick Installation Guide STP is recommended where EMI/RFI may be an issue. Usage of patch panels is not recommended. When connected to Deep Color equipment, the 500402 removes the Deep Color content to Overview support greater cable length than would normally be achieved. RJ45 Pin Configuration RJ45 A (Video) The HDMI Passive Extender Kit (500402) allows HDMI equipment to be Pin 1 (R) Pin 2 (T) Reverse Polarity Sensitive connected up to 150 ft (45m) 1080i via two (2) Cat5e unshielded twisted pair Pin 3 (R) Pin 6 (T) Use EIA/TIA 568 A or B cables in a point-to-point configuration. The product also works with 1080p up to Pin 4 (R) Pin 5 (T) straight-through wiring. 150 ft (45m) via Cat6 cable. The kit comes with one (1) Transmitter and one (1) Pin 7 (R) Pin 8 (T) Receiver. Applications include commercial and residential AV systems, classroom RJ45 B (DDC) projector systems, digital signage, boardroom systems, collaborative PC systems, Pin 1 (R) Pin 2 (T) medical information systems. Pin 3 (R) Pin 6 (T) Pin 4 (R) Pin 5 (T) Pin 7 (R) Pin 8 (T) Pre-Installation Check Two (2) Cat5e/6 or better solid core twisted pair cables required Cable Temperature Operating: 0 to 55C Storage: -20 to 85C Identify the connectors on the Source Side and Display Side as indicated on the Humidity: up to 95% non-condensing product. Enclosure Metal enclosure, PVC sleeve 10.6 x 1.9 x 0.8 (27.0 cm x 4.8 cm x 2.0 cm) Dimensions Weight 10.8 oz. (307 g) Compliance Regulatory: FCC, CE, RoHS Flammability: 94V1 Warranty 2 years Order Information 500402 HDMI Passive Extender Kit 8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease muxlab.com URL: www.muxlab.com MuxLab Inc. 2011 94-000714-A SE-000714-A Installation Troubleshooting Verify that the distance between the HDMI Transmitter and Receiver are within The following tables describe some of the symptoms, probable causes and possible solutions MuxLab specifications (see Specifications table). in respect to the installation of the HDMI Passive Extender Kit. If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International). In order to install the HDMI Passive Extender Kit, please follow the steps below: Picture/ Probable Cause Possible Solution Sound 1. Connect two (2) lengths of Cat5e (or higher) grade UTP cables to the A and B No Image Wiring Check continuity connectors on Transmitter (identified as HDMI Passive Extender Source Check correct wiring Side). Verify that A and B Cat5e cables are not inverted. 2. Connect the two (2) Cat5e (or higher) grade UTP cables to the A and B No Image Synchronization Power off the source and the connectors of the Receiver (identified as HDMI Passive Extender Display display. Power on the Side). devices. Flickering Synchronization Check cable length Note: Verify that the cables are connected straight-through (i.e. A to A, Image B to B) and not inverted. Choppy Synchronization Check cable length Sound Noise in Weak signal Check cable length 3. Connect the Transmitter directly to the HDMI video source. image Green or Cable Check cables and replace. 4. Connect the Receiver directly to the HDMI display equipment. pink hue Image Interference Use STP cables. 5. Power on the HDMI equipment and verify the image quality. Flicker when powering up 6. The following diagram shows the final configuration. equipment nearby MuxLab Inc. 2011
