MC5023 BLK Nexans

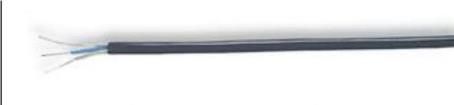

Contact Nexans - Electronic cables Phone: + 33 1 69 83 78 60 electronic.products nexans.com EHE & EHEA - Wires and cables for low frequency applications EHE 2 PR GAINE BlackE Cou.100M Nexans ref.: 10037690 EAN 13: 3427620030779 Screened and jacketed hook-up wires and multicore cables for low frequency applications Description CARACTERISTIQUES These exible cables are designed mainly for use in applications requiring high efciency screening at low frequencies. The screen is made up of a continuous high conductive thermoplastic sheath and provides a shielding efciency inversely proportional to the frequency. So a very high efciency is obtained at industrial frequencies. For a reduced overall diameter, use EHEA serie. Easy stripping, as well as grounding, because of the drain wire placed under the thermoplastic sheath. They are ame retardant (to NFC 32070/C2 French specication). STANDARDS NEXANS specication. CONSTRUCTION 1. CONDUCTOR Standards stranded tinned copper wires National NF C 32-070/C2 2. INSULATION polyethylene (Pe) 3. DRAIN WIRE 4. SCREEN high conductive sheath 5. OUTER JACKET exible polyvinyl chloride (PVC) Cable exibility Operating temp. range RoHS conform Electro magnetic interference Flexible -20 .. 80 C Yes resistance Yes Generated 8/23/13 - Contact Nexans - Electronic cables Phone: + 33 1 69 83 78 60 electronic.products nexans.com EHE & EHEA - Wires and cables for low frequency applications EHE 2 PR GAINE BlackE Cou.100M Nexans ref.: 10037690 Characteristics Construction characteristics Conductor material Tinned copper Insulation PVC Electrical characteristics Maximum operating voltage 750 V Mechanical characteristics Cable exibility Flexible Usage characteristics Operating temperature, range -20 .. 80 C RoHS conform Yes Electro magnetic interference resistance Yes Cable exibility Operating temp. range RoHS conform Electro magnetic interference Flexible -20 .. 80 C Yes resistance Yes Generated 8/23/13 -
