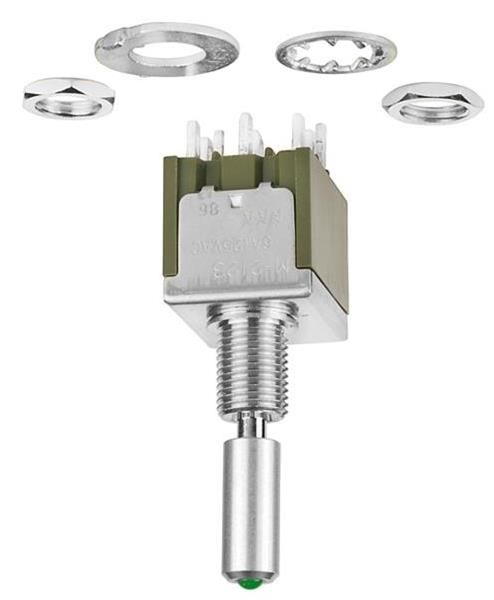

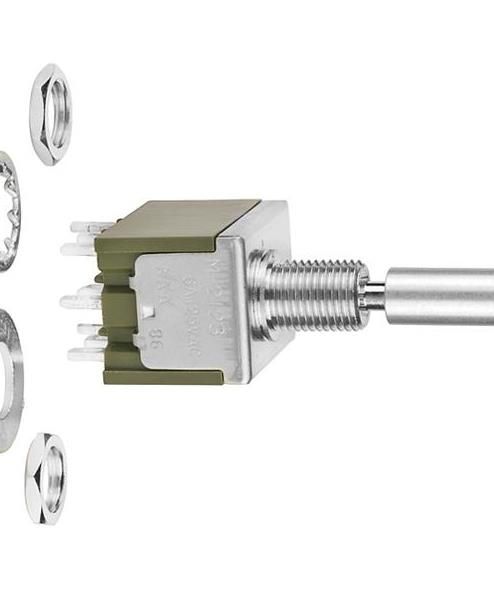

Series M2100 LED Tipped Toggles A General Specifications Electrical Capacity (Resistive Load) Power Level (silver): 6A 125V AC or 3A 250V AC or 3A 30V DC Logic Level (gold): 0.4VA maximum 28V AC/DC maximum (Applicable Range 0.1mA ~ 0.1A 20mV ~ 28V) Note: Find additional explanation of operating range in Supplement section. Other Ratings Contact Resistance: 10 milliohms maximum for silver 20 milliohms maximum for gold Insulation Resistance: 1,000 megohms minimum 500V DC Dielectric Strength: 1,000V AC minimum between contacts for 1 minute minimum 1,500V AC minimum between contacts & case for 1 minute minimum Mechanical Life: 50,000 operations minimum Electrical Life: 25,000 operations minimum Nominal Operating Force: On-to-On Position Off-to-On Position Single Pole 3.19N 3.92N Double Pole 4.41N 7.06N Angle of Throw: 20 Materials & Finishes Bushing: Brass with nickel plating Housing: Stainless steel Mounting Bracket: Steel with tin plating Movable Contacts: Silver alloy or silver alloy with gold plating Stationary Contacts: Silver with silver plating or copper or brass with gold plating Lamp Contacts: Phosphor bronze Base: Diallyl phthalate (UL94V-0) Switch Terminals: Copper with silver or gold plating Lamp Terminals: Brass with silver or gold plating Environmental Data Operating Temp Range: 10C through +55C (+14F through +131F) Humidity: 90 ~ 95% humidity for 96 hours 40C (104F) Vibration: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning in 1 minute 3 right angled directions for 2 hours 2 Shock: 50G (490m/s ) acceleration (tested in 6 right angled directions, with 5 shocks in each direction) Installation Mounting Torque: 1.47Nm (13 lbin) for double nut .67Nm (6 lbin) for single nut Soldering Time & Temp: Wave Soldering (PC version): See Profile B in Supplement section. Manual Soldering: See Profile B in Supplement section. Note: Lever must be in center position while soldering. Cleaning: PC mountable device is not process sealed. Hand clean locally using alcohol based solution. Standards & Certifications Flammability Standards: UL94V-0 base UL: File No. E44145 - Recognized only when ordered with marking on switch. Add /U to end of part number to order UL recognized switch. Single pole with synchronous circuits & single color LEDs & solder lug or PC recognized at 6A 125V AC. CSA: File No. 023535 0 000 - Certified only when ordered with marking on switch. Add /C to end of part number to order CSA certified switch. All single pole with synchronous circuits & single color LEDs certified at 6A 125V AC. A80 www.nkkswitches.com 3/13/17 Supplement Accessories Indicators Touch Tilt Tactiles Slides Rotaries Keylocks Programmable Illuminated PB Pushbuttons Rockers TogglesLED Tipped Toggles Series M2100 A Distinctive Characteristics Industrys first LED illumination at tip of toggle switches. Single color LEDs of red, yellow, and green, plus bicolor red/green, to meet varied design requirements. LEDs can operate independently from or synchronously with switching operation. Antijamming feature to protect contacts from damage due to excessive downward force on the toggle. High torque bushing prevents the bushing from rotating or separating from the metal frame during installation. Stainless steel frame resists corrosion. Silver contacts are of specially composed alloy for hardness. High insulating barriers protect against crossover in double pole devices. Terminals are molded in and epoxy sealed to lock out flux, dust, and other contaminants. 1,500V dielectric strength between switch contacts and case is accomplished by clinching the frame away from the terminals. Actual Size www.nkkswitches.com A81 Supplement Accessories Indicators Touch Tilt Tactiles Slides Rotaries Keylocks Programmable Illuminated PB Pushbuttons Rockers Toggles
