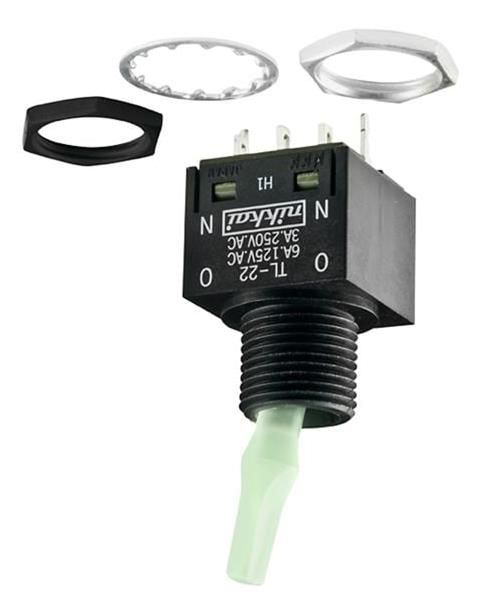

Series TL Fully Illuminated Toggles A General Specifications Electrical Capacity (Resistive Load) Power Level (silver): 6A 125V AC or 3A 250V AC or 6A 12V DC for silver Logic Level (gold): 0.4VA maximum 28V AC/DC maximum for gold (Applicable Range 0.1mA ~ 0.1A 20mV ~ 28V) Note: See Supplement Index for explanation of operating range. Other Ratings Contact Resistance: 10 milliohms maximum for silver 20 milliohms maximum for gold Insulation Resistance: 1,000 megohms minimum 500V DC Dielectric Strength: 1,000V AC minimum between contacts for 1 minute minimum 1,500V AC minimum between contacts & case for 1 minute minimum Mechanical Life: 50,000 operations minimum Electrical Life: 25,000 operations minimum for silver 50,000 operations minimum for gold Static Capability: Withstands 20 kilovolts ESD minimum Nominal Operating Force: 1.9N for .689 (17.5mm) toggle 2.5N for .433 (11.0mm) toggle Angle of Throw: 25 Materials & Finishes Toggle: Polycarbonate Housing: Glass fiber reinforced polyamide Sealing Ring: Nitrile butadiene rubber Base: Diallyl phthalate (UL94V-0) Movable Contactor: Phosphor bronze with silver or gold plating Movable Contacts: Silver alloy or copper with gold plating Stationary Contact: Silver plus copper with silver plating or copper with gold plating Lamp Contacts: Beryllium copper with silver plating Power Terminals: Copper with silver or gold plating Lamp Terminals: Brass with silver plating Environmental Data Operating Temperature Range: 10C through +55C (+14F through +131F) Humidity: 90 ~ 95% humidity for 240 hours 40C (104F) Vibration: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning in 1 minute 3 right angled directions for 1.75 hours 2 Shock: 50G (490m/s ) acceleration (tested in 6 right angled directions, with 5 shocks in each direction) Installation Mounting Torque: .98Nm (8.67 lb in) maximum Soldering Time & Temperature: Manual Soldering: See Profile B in Supplement section. Standards & Certifications Flammability Standards: UL94V-0 base A118 www.nkk.com Supplement Accessories Indicators Touch Tilt Tactiles Slides Rotaries Keylocks Programmable Illuminated PB Pushbuttons Rockers TogglesFully Illuminated Toggles Series TL A Distinctive Characteristics Choice of long or short toggles in translucent colors combine with bright LEDs available in red, amber, and green, plus super bright LEDs available in white, green, and blue. Black face nut enhances front panel appearance. Antistatic material used for toggle withstands 20 kilovolts electrostatic discharge. Panel seal, achieved with use of optional exterior o-ring, conforms to IP65 of IEC60529 Standards. Interior o-ring protects contacts from oil, dust, water, and other contaminants. UL94V-0 flammability rated for base. High insulating barriers protect against crossover. Terminals are molded in and epoxy sealed to lock out flux, dust, and other contaminants. Actual Size www.nkk.com A119 Supplement Accessories Indicators Touch Tilt Tactiles Slides Rotaries Keylocks Programmable Illuminated PB Pushbuttons Rockers Toggles
