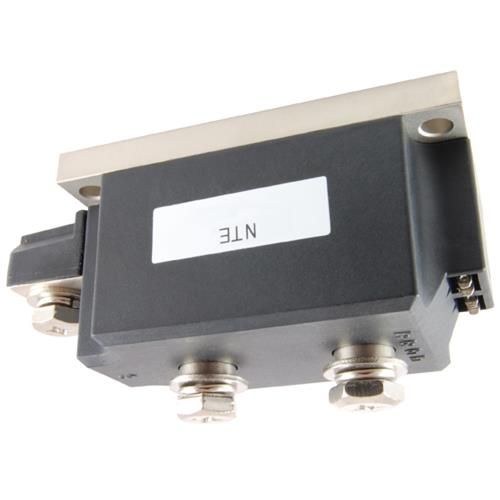

NTE5728 Powerblock Thyristor Module Features: Electrically Isolated Base Plate Pressure Contact Technology with Increased Power Cycling Capability Space and Weight Savings Applications: AC/DC Motor Drives Various Rectifiers DC Supply for PWM Inverter Ratings and Characteristics: (T = +125C unless otherwise specified) J Maximum Mean On State Current, I T(AV) (T = +70C, 180, Half Sine Wave, 50Hz, Single Side Cooled) ................... 250A C Maximum RMS On State Current, I ............................................ 393A T(RMS) Maximum Repetitive Peak OffState Voltage (V = 1800V, t = 10ms), V .......... 1600V DSM p DRM Maximum Repetitive Peak Reverse Voltage (V = 1800V, t = 10ms), V ........... 1600V RSM p RRM Maximum Repetitive Peak Current, I , I ....................................... 30mA DRM RRM Maximum Surge On State Current (10ms Half Sine Wave, V = 960V), I ............. 8.5KA R TSM 2 2 2 3 Maximum I t for Fusing Coordination (10ms Half Sine Wave, V = 960V), I t ....... 360A s * 10 R Maximum Threshold Voltage, V ................................................... 0.9V TO OnState Slope Resistance, r ................................................... 0.93m T Maximum Peak On State Voltage (I = 750A), T = +25C), V ...................... 1.73V TM J TM Critical Rate of Rise of OffState Voltage (V = 1072V), dv/dt ....................... 800V/s DM Critical Rate of Rise of On State Current, di/dt (I = 500A, Gate Source 1.5A, t 0.5s Repetitive) ......................... 100A/s TM r RMS Isolation Voltage (50Hz, t = 1s Min, I = 1mA Max), V ........................ 3600V ISO ISO Storage Temperature Range, T .......................................... 40 to +125C stg Thermal Resistance, Junction toCase (Single Side Cooled), R ................. 0.12C/W thJC Thermal Resistance, Case toSink (Single Side Cooled), R ..................... 0.04C/W thCS Typical Thermal Connection Torque, F .......................................... 4.0N m m Typical Mounting Torque, F .................................................... 6.0N m m Rev. 111Electrical Specifications: Parameter Symbol Test Conditions Min Typ Max Unit Gate Trigger Current I V = 12V, I = 1A, T = +25C 30 180 mA GT A A J Gate Trigger Voltage V 1 3 V GT Holding Current I 20 150 mA H Non Trigger Gate Voltage V V = 1072V, T = +125C 0.2 V GD DM J Circuit Diagram G2 K2 AC + K1 G1 AC + K2 G2 G1 K1 M8 x 1.25 Screw 1.380 1.120 (28.0) (3 Places) (35.0) .240 (6.0) 1.500 .790 (38.0) (20.0) 1.970 (50.0) .350 (9.0) .240 (6.0) 3.150 (80.0) 4.530 (115.0) 2.010 (51.0) 1.260 (32.0) .390 3.620 (92.0) (10.0)
