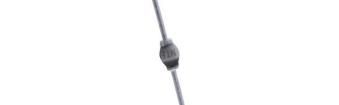

NTE580 General Purpose Silicon Rectifier Fast Recovery Features: High Temperature Metallurgically BondedNo Compression Contacts Fast Switching for High Effeciency 3A Operation at T = +25C with No Thermal Runaway A Maximum Ratings and Electrical Characteristics: (T = +25C unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. A For capacitive load, derate current by 20%) Maximum Recurrent Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V Maximum RMS Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420V Maximum DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V Maximum Average Forward Rectified Current (.375 (9.5mm) Lead Length, T = +75C) . . . . . . 3A A Peak Forward Surge Current (8.3ms Single Half SineWave Superimposed on Rted Load) . 100A Maximum Instantaneous Forward Voltage (I = 3A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3V F Maximum DC Reverse Current (V = 600V, T = +25C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 A DC A Maximum Average Reverse Current (P = 600V) RV T = +25C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 A A T = +100C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 A A Maximum Reverse Recovery Time (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150ns Typical Junction Capacitance (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65pF Operating Junction Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +175C J Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +175C stg Lead temperature (During Soldering, .375 (9.5mm) from case, 10sec), T . . . . . . . . . . . . . . +350C L Note 1. Reverse Recovery Test Conditions: I = 0.5A, I = 1.0A, I = 0.25A. F R RR Note 2. Measured at 1MHz and applied reverse voltage of 4V. 1.000 .300 (7.6) Max (25.4) Min .042 (1.07) Max .180 (4.6) Max Color Band Denotes CathodeX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for nte manufacturer: Other Similar products are found below : 747 797 868 1724 NEH680M50FE NEHH1.0M450CB NTE48 NTE526A 228A 231 954 2023 510 R04-11A30-120 04-SLPE3750A 5615 591 7056 7448 NEH.10M50AA NEH2.2M63AA NEH330M35DD NEH33M10AA NEV.22M100AA NTE528 NTE542 NTE74154 04-SCBW25L-BK 04-SCBW32L-BK 04-SCW10C-BK 04-SCBW19L-GR 04-SCW19L-WH 04-SCW19L-OR 04-SCW38L-WH 04- SCBW50L-OR 04-SCBW50L-GR 04-SCW10C-GR 04-SCW10C-OR 04-SCBW32L-GR 04-SCBW32L-WH 04-SCBW32L-OR 04- SCBW6C-WH 04-SCBW6C-GR 04-SCBW6C-OR 04-SCBW25L-GR 04-SCBW25L-WH 04-ESNF-500L 04-SL.625-R-5 04-SCW5C-WH 04-ESNF-1000L
