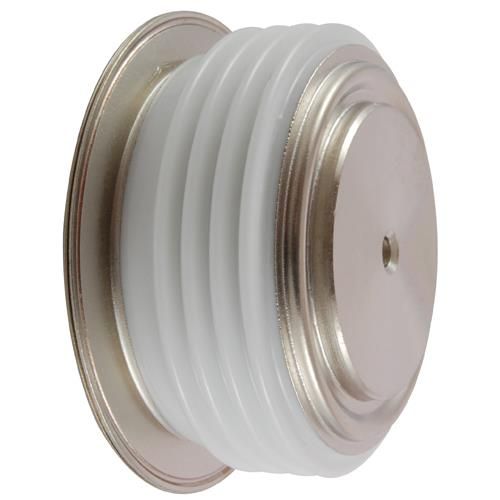

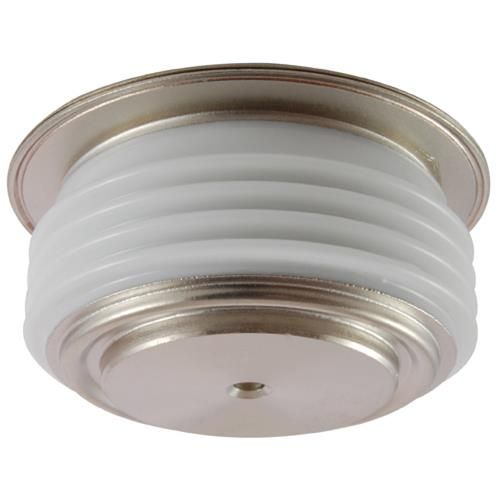

NTE6129 Silicon Power Rectifier Diode 700 Amp, DO200AB Features: High Power, Fast Recovery Time High Current Capability Low Forward Recovery Applications: Snubber Diode for GTO High Voltage Free Wheeling Diode Fast Recovery Rectifier Applications Ratings and Characteristics: Average Forward Current (T = +55C Max), I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700A C F(AV) Maximum Repetitive Peak Reverse Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600V RRM Maximum Non Repetitive Peak Reverse Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1700V RSM Maximum Reverse Current (T = +150C), I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA J RRM Maximum Forward Surge Current, I FSM 50Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9300A 60Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9730A Operating Junction Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +150C J Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +150C stg Thermal Resistance, Junction toCase (DC Operation, single side cooled), R . . . . 0.092C/W thJC Thermal Resistance, Case toSink (DC Operation, double side cooled), R . . . . . . . 0.46C/W thCS Maximum Mounting Force (10%), F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9800 (1000) N (Kg) Electrical Specifications: Parameter Symbol Test Conditions Rating Unit Maximum Average Forward Current I 180 Double side cooled, T = +55C 700 A F (AV) C condition, Half sine Single side cooled, T = +85C 365 A C waveParameter Symbol Test Conditions Rating Unit Maximum RMS Forward Current I +25C heatsink temperature double side cooled 1320 A F(RMS) Maximum Peak OneCycle I t = 10ms Half sinewave current, rated V 7820 A FSM RRM NonRepetitive Surge Current reapplied, initial T = +150C J t = 8.3ms 8190 A t = 10ms Half sinewave current, no voltage 9300 A reapplied, initial T = +150C J t = 8.3ms 7820 A Electrical Specifications (Contd): Parameter Symbol Test Conditions Rating Unit 2 2 2 Maximum I t for Fusing I t Rated V reapplied, initial t = 10ms 306 A s RRM T = +150C J 2 t = 8.3ms 279 A s 2 t = 10ms No voltage reapplied, initial 432 A s T = +150C J 2 t = 8.3ms 395 A s 2 2 2 t = 0.1 to 10ms, no voltage reapplied 4320 Maximum I t I t A t Maximum Peak Forward Voltage V T = +150C, I = 1500A, t = 10ms 2.2 V FM J pk p Recovery Characteristics: Test Conditions Max Values T = +150C J T = +25C J I t typical t pk rr rr Square Pulse di/dt V 25% I Q T 25% I r RRM rr rr RRM 2.0s 1000A 50A/a 50V 3.5s 240C 110A
