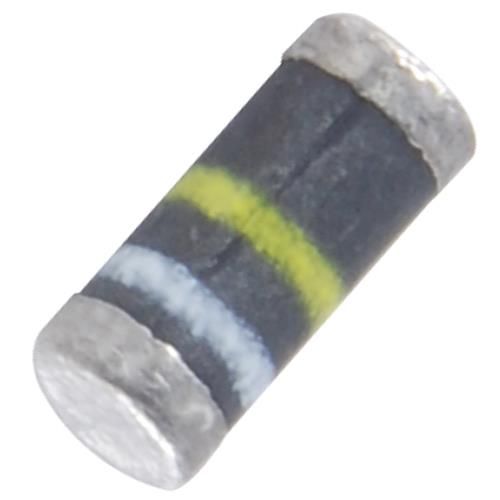

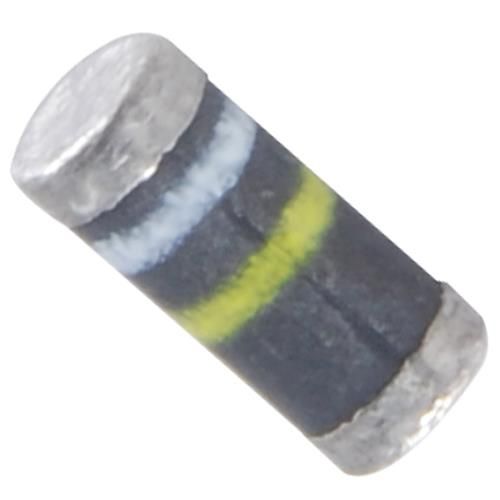

NTE621 Silicon Rectifier, General Purpose, High Voltage, Standard Recovery DO213AB Surface Mount Type Case Features: High Temperature Metallurgically Bonded Glass Passivated Junction High Temperature Soldering Guaranteed: +450C/5 Seconds at Terminals. Complete Device Submersible Temperature of +260C/10 Seconds in Solder Bath. Maximum Ratings and Electrical Characteristics: (T = +25C unless otherwise specified. A 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.) Maximum Recurrent Peak Reverse Voltage, V ..................................... 400V RRM Maximum RMS Voltage, V ...................................................... 280V RMS Maximum DC Blocking Voltage, V ................................................. 400V DC Maximum Average Forward Rectified Current, I ..................................... 1A T(AV) Peak Forward Surge Current, I FSM (8.3ms Single Half Sine Wave Superimposed on Rated Load) ..................... 30A Maximum Instantaneous Forward Voltage (I = 1A), V ................................ 1.1V T F Maximum DC Reverse Current (V = 400V), I DC R T = +25C ................................................................. 10A A T = +125C ................................................................ 50A A Maximum Full Load Reverse Current (Full Cycle Average at T = +75C), I ........... 30A A R(AV) Typical Junction Capacitance (Note 1), C ............................................ 15pF J Operating Junction Temperature Range, T .................................. 65 to +175C J Storage Temperature Range, T .......................................... 65 to +175C stg Maximum Thermal Resistance, Junction toTerminal (Note 2), R .................. 30C/W thJL Maximum Thermal Resistance, Junction toAmbient (Note 3), R .................. 75C/W thJA Note 1. Measured at 1MHz and applied reverse voltage of 4V . DC 2 Note 2. Thermal resistance, junction toterminal, 6.0mm copper pads to each terminal. 2 Note 3. Thermal resistance, junction toambient, 6.0mm copper pads to each terminal. Rev. 111Solderable Ends 1st Band (Device Type) 2nd Band (Voltage Type) .105 (2.667) Max Dia .022 (.559) Max .022 (.559) Max .205 (5.207) Max Two Bands Indicates Cathode
