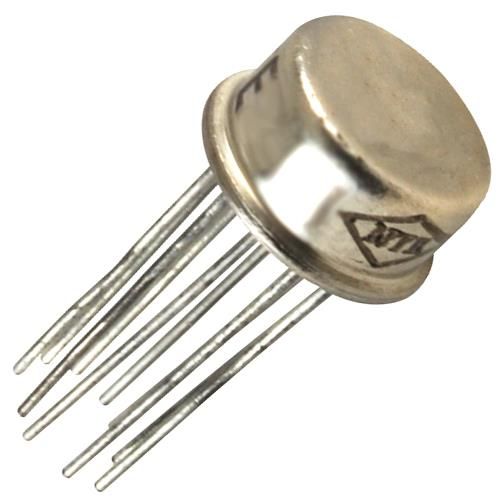

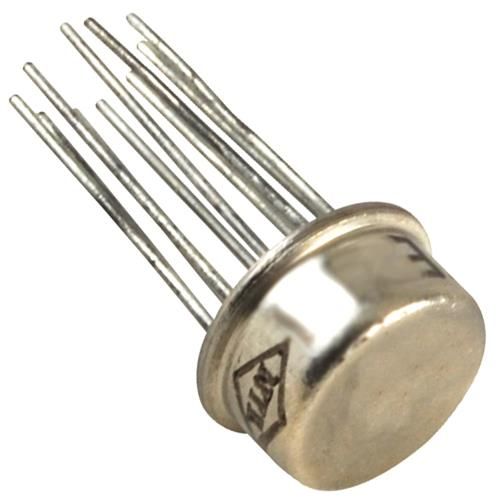

NTE927 Integrated Circuit Differential Video Amplifier Description: The NTE927 is a twostage, differential input, differential output, wideband video amplifier. The use of internal seriesshunt feedback gives wide band bandwidth with low phase distortion and high gain stability. Emitterfollower outputs provide a high current drive, low impedance capability. Its 120MHz bandwidth and selectable gains of 10, 100, and 400, without need for frequency compensation, make it a very useful circuit for memory element drivers, pulse amplifiers, and wide band gain stages. Features: 120MHz Bandwidth 250k Input Resistance No Frequency Compensation Required Selectable Gains of 10, 100 and 400 High Common Mode Rejection Ratio at High Frequencies Applications: Magnetic Tape Systems Disk File Memories Thin and Thick Film Memories Woven and Plated Wire Memories Wide Band Video Amplifiers Absolute Maximum Ratings: Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V Common Mode Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V Supply Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8V CC Output Current, I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA O Power Dissipation (Note 1), P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW D Junction Temperature, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +100C J Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +150C stg Operating Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to +70C opr Lead Temperature (Soldering, 10sec), T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +260C L Note 1. For operation at elevated temperatures, derate device based on a thermal resistance of +150C/W junction to ambient or +45C/W junction to case.Electrical Characteristics: (T = +25C, unless otherwise specified, V = 6V) A S Parameter Test Conditions Min Typ Max Unit Differential Voltage Gain Gain 1 (Note 2) 250 400 600 Gain 2 (Note 3) 80 100 120 Gain 3 (Note 4) R = 2k , V = 3V 8.0 10 12 L OUT pp Bandwidth MHz Gain 1 40 Gain 2 90 Gain 3 120 Rise Time ns Gain 1 10.5 Gain 2 4.5 Gain 3 2.5 Propagation Delay V = 1V ns OUT pp Gain 1 7.5 Gain 2 6.0 10 Gain 3 3.6 Input Resistance k Gain 1 4.0 Gain 2 10 30 Gain 3 250 Input Capacitance Gain 2 2.0 pF Input Offset Current 0.4 5.0 A Input Bias Current 9.0 30 A Input Noise Voltage BW = 1kHz to 10MHz 12 Vrms Input Voltage Range 1.0 V Common Mode Rejection Ratio dB Gain 2 V = 1V, f 100kHz 60 86 CM Gain 2 V = 1V, f = 5MHz 60 CM Supply Voltage Rejection Ratio dB Gain 2 V = 0.5V 50 70 S Output Offset Voltage V Gain 1 R = 0.6 1.5 L Gain 2 and 3 0.35 1.5 Output Common Mode Voltage R = 2.4 2.9 3.4 V L Output Voltage Swing R = 2k 3.0 4.0 L Output Sink Current 2.5 3.6 mA Output Resistance 20 Power Supply Current R = 18 24 mA L
