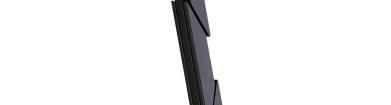

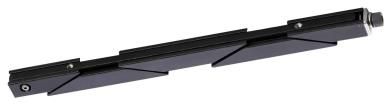

A265HC-6.80ET2 nVent

Series 265HC Card Lok Series 265HC Card Lok RECOMMENDED GAP WIDTH PCB + 6.35 mm (.250 in) RECOMMENDED TORQUE COLD PLATE 68 N-cm (6 in-lbs) With option 90 N-cm (8 in-lbs) WEIGHT .89 g/cm (.080 oz/in) MATERIALS AND FINISH BODIES AND WEDGES Material: Aluminum alloy 6061-T6 per per ASTM- B221 or AMS-QQ-A-200/8 RECOMMENDED GAP: Finish: BOARD MODULE ASSEMBLY THICKNESS See finish table on opposite page PLUS 6.35 .250 SHAFT ROLL PIN Material: Alluminum alloy 7075-T6 per BOARD MODULE ASSEMBLY ASTMB221 or AMS-QQ-A-200/11 Finish: See finish table on opposite page SHAFT MAY BE RIVETED OR SCREWED SCREW ONTO BOARD MODULE ASSEMBLY .09-in. or 2.5-mm hex. socket head Material: 300 series stainless steel with dry film lube per MIL-L-46010 ROLL PINS AND FLAT WASHER Material: 400 series stainless steel ROLL PIN Finish: WEDGES Passivated per AMS2700 INDEXING PIN (INSTALLED ONTO LOCK WASHER SHAFT) SQUARE FLAT WASHER Material: LOCK WASHER MS35338-135 SCREW Finish: Passivated per AMS2700 INDEXING PINS Material: Aluminum alloy 6061-T6 Finish: See finish table on opposite page pentairprotect.com 1-800-854-7086 Series 265HC Card Lok 8.9 5.8 (.35) (.23) REF 4.65 (.183) Lock element per 5.72 Unlocked Locked (.225) MIL-F-18240 applied to thread of screw Detail V Detail L Provides prevailing torque for resistance to Provides visual lock indication loosening from shock and vibration. Adds 22 N-cm (2 in-lbs) torque to assembly. CENTER HOLE LOCATION OPTION ONLY 5.715 5.842 MAX 5.308 (.225) (.230 MAX) (.230) + 0.127 1.016 - 0.025 + .005 .040 - .001 20.320 M/2 .13 (.005) (.800) M = PN CODE LENGTH - 48.26 (1.90) .13 (.005) ASSEMBLY LENGTH PN CODE LENGTH + 2.54 (.100) 12.432 (.489) 7.366 MAX (.290 MAX) ONE THREADED HOLE AND INDEXING PIN STANDARD 1.575 EXTRA THREADED HOLE WITH OPTION (.062) INDEXING PIN Part Number Code FINISH TABLE Code Series 265HC Card-Lok Five Piece Letter Finish M V A 265HC - 3.80 E H L A Black Anodize per Mil-A-8625 Type II, Class 2 Prefix options HA Hard Black Anodize per Mil-A-8625 Type III, Class 2 Metric Screw Head M2.5 Hex Drive M EN Standard Screw Head 3/32 Hex Drive blank Electroless Nickel per Mil-C-26074 Class 4, Grade B, Bright Visual Indicator V No Visual Indicator blank Black Anodize A or choose from Finish Table see table MOUNTING METHOD TABLE Suffix options Code Length in 12.7 (.50) increments 96.52 (3.80) Letter Method to 172.72 (6.80) H 1.73/1.85 (.068/.073) dia. through holes countersink Additional Center Mounting Hole E 100 x 1.50 (.060) deep None blank T0 0-80 tapped hole Mounting Options - through mounting holes H T2 2-56 tapped hole or choose from Mounting Method Table see table TM2 M2 x 0.40 tapped hole Lock Element L TM2.5 M2.5 x 0.45 tapped hole None blank Part Number Code Example: MVA265HC-3.80ET2L Series 265HC Card-Lok five piece 96.52 (3.80) long black anodized with M2.5 hex drive, visual indicator, mounting holes tapped for 2-56 thread, with locking element. pentairprotect.com 1-800-854-7086
