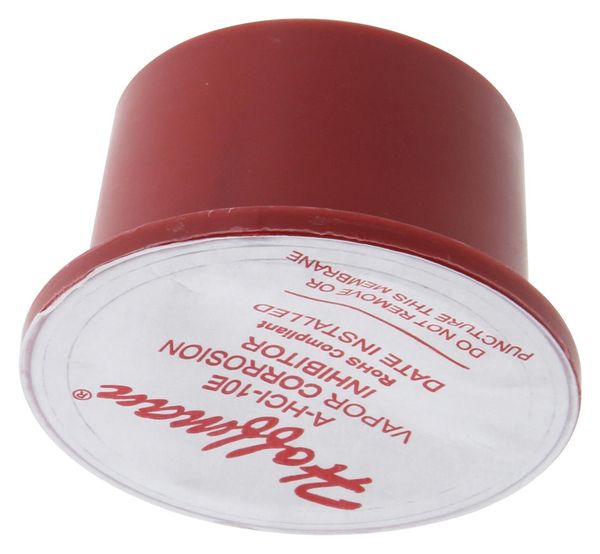

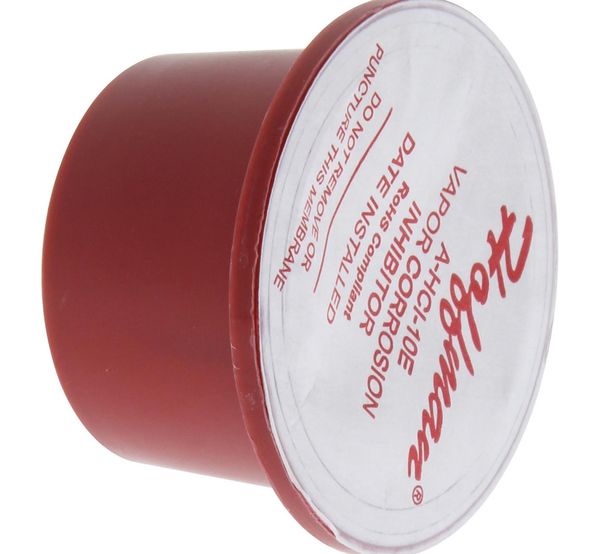

Corrosion i nhibitors Corrosion i nhibitors S77F66pec-330..0445226226..22621010 ACCessories Corrosion i nhibitors Corrosion i nhibitors industri Al Corrosion i nhibitors l ife expectancy and u sage The normal useful life-span of Hoffman corrosion inhibitors is in excess of one year. However, inhibitor life expectancy is shortened by approximately 25 percent when exposed to temperatures above 104 F (40 C). This product is not recommended for use where temperature exceeds 199 F. Since Hoffman corrosion inhibitors are vapor-phase protective, all surfaces to be protected should be accessible to the vapors. The maximum distance the vapors can travel is approximately 1.50 ft. (.46 m). Protection of long, narrow enclosures can be achieved with tape or multiple inhibitors. storage and h andling Each Hoffman corrosion inhibitor is individually packaged in a resealable bag for maximum effectiveness at the time of usage. Corrosion inhibitors should be stored at temperatures not exceeding 120 F (45 C ). Hoffman corrosion inhibitors are not returnable. When determining the proper corrosion inhibitor for your application, assume the enclosure volume to be protected is greater than calculated if (1) cabinet doors are opened frequently, (2) cabinet is located in an extremely corrosive area and/or (3) cabinet length divided by depth is greater than four. Ah Ci1dV Foam device protects one cubic foot (28 liters) of enclosure volume for approximately one year. Size: .25 x 1.25 x 3.00 in. (6 x 32 x 76 mm) Ah Ci5e 3 Emitter protects 5 ft. (142 liters) of enclosure volume for Hoffman corrosion inhibitors protect approximately two years from the date of manufacture. Emitters Interior components of electrical enclosures, boxes, consoles contain additional red metal (non-ferrous) inhibitors. and wireways Size: 2.31 in. (diameter) x 0.81 in. (high) (59 mm x 21 mm) Interior components of electronic enclosures Ah Ci10e 3 Electrical and electronic equipment and controls Emitter protects 10 ft. (283 liters) of enclosure volume for P arts and components that are packaged in crates during approximately two years from the date of manufacture. Emitters shipping and storage contain additional red metal (non-ferrous) inhibitors. S witch gear and relay cabinets Size: 2.31 in. (diameter) x 1.38 in. (high) (59 mm x 35 mm) Interiors of pipes, conduits and fuse boxes Ah Ci60r 3 Process control computers, instruments and recording devices Tape protects 60 ft. of enclosure volume per roll. Use Tool chest interiors and contents approximately 2.50 in. (63 mm) of tape per cubic foot (28 liters) of Equipment stored at construction sites enclosure volume to be protected. Each roll of tape is packaged Chief Advantages individually in a resealable bag. P rotects against salt and high humidity Size: .25 in. x .75 in. x 12.00 ft. (6 mm x 19 mm x 3.6 m) Eliminates the need of oiling, plating or dipping metal Ah Ci240r 3 P uts protected equipment to use immediately without degreasing Tape protects 240 ft. of enclosure volume per roll. Use or coating removal approximately 1.00 in. (25 mm) of tape per cubic foot (28 liters) of h ow t hey Work enclosure volume to be protected. Each roll of tape is packaged Each inhibitor contains a special chemical combination that individually in a resealable bag. vaporizes and condenses on all surfaces in an enclosed area. Size: .25 in. x 2.00 in. x 20.00 ft. (6 mm x 51 mm x 6.1 m) Vapors will redeposit as needed in the event of condensation Ah Ci238s of moisture on surfaces. These vapors reach every part of an Spray is a non-conductive, nonflammable, vapor-phase film and is enclosure, protecting all interior components. Spraying, wiping non-toxic. It has essentially neutral pH value. Application provides or greasing are not required. This eliminates precoating, special instant protection against corrosion. Spray is water soluble and can wraps and drying agents. Protection is effective even in salt-water be easily flushed away with water if desired. This product should atmospheres. The AHCI5E and AHCI10E emitters have additional be kept from freezing and has a shelf life of 2+ years in normal red-metal inhibitors for further protection. Enclosures containing warehouse conditions. corrosion inhibitors must be reasonably sealed. Bulletin: A80 Standard Product 3 Catalog Number Enclosure Volume Protected (ft. ) Enclosure Volume Protected (liters) Package Qty. AHCI1DV 1 28.32 50 AHCI5E 5 141.6 25 AHCI10E 10 283.2 12 AHCI60R 60 per roll 1699 per roll 3 AHCI240R 240 per roll 6797 per roll 1 AHCI238S Corrosion Inhibitor Spray Corrosion Inhibitor Spray 6 Metal Protection Chart Metal Protected by Chemical Unprotected by Chemical Aluminum Marked reduction of surface attack no pitting Severe surface attack tarnish pitting a Brass Decreased tarnish very minor surface attack Surface discoloration pitting Steel, Iron No change Severe corrosion a Copper Slight staining Heavy corrosive attack Zinc Plate Slight discoloration Severe corrosion Tin Plate Slight discoloration Moderate corrosive attack a AHCI5E and AHCI1OE emitters are recommended for these materials 1 ACCessories SUBJECT TO CHANGE WITHOUT NOTICE EQUIPMENT PROTECTION SOLUTIONS Spec-00566 FCorrosion i nhibitors Corrosion i nhibitors epoxy pA t Ch Kit Applications include sealing Catalog Number Description rivets, bolts, metal joints, seams A307 Epoxy Patch Kit and welds, cement cracks, pipe couplings, joints and tees. Each kit has two tubes of material, application instructions and a mixing stick. When the resin and hardener are mixed, a gray epoxy is formed which cures at room temperature, has high adhesion and will not sag. It is resistant to oils, acids and chemicals. Bulletin: A80 t ou Ch- u p pA int Catalog Number Color ATPLI RAL 1015 Light Ivory ATPDLB Hoffman 78T DesignLine Beige Enamel ATPG7035 RAL 7035 Light Gray (T012) ATPPG RAL 7032 Pebble Gray ATPOF RAL 9002 Gray White (S065) ATPLGGMW GMW-01 Light Gray ATPLG RAL 7035 Light Gray (S052) ATPAG RAL 7038 Agate Gray ATPLGA70 ANSI 70 Light Gray ATPPY61 ANSI 61 Hoffman Standard Gray ATPDG ANSI 49 Dark Gray ATPBG RAL 7012 Basalt Gray ATPSG Satin Gray Enamel ATPMG Hoffman 82 Slate Gray Enamel ATPHS61 High Solids ANSI 61 Gray ATPFG Light Gray for fiberglass ATPG7032 RAL 7032 Gray ATPSY 5. YB.0/12 OSHA Safety Yellow Hoffman touch-up paint is used to repair the finish of enclosures ATPR RAL 3001 Signal Red and panels. Furnished in 12-oz. spray cans. ATPO RAL 2004 Pure Orange ATPSB RAL 5015 Sky Blue Bulletin: A80, DA cc Y, p 20 ATPSAB 2.5PB3.5/10 OSHA Safety Blue Catalog Number Color ATPPB 96Y-23665 Precaution Blue ATPWE Hoffman 60 White ATPB RAL 5005 Signal Blue ATPRG RAL 6011 Reseda Green ATPW RAL 9003 Signal White ATPOG RAL 6003 Olive Green ATPTW RAL 9016 Traffic White (S094) ATPPW RAL 9010 Pure White ATPMGN PSPL350001 Munsell Green ATPBS F63VXW8736 SW Cream ATPMB 2.5Y 5/2 Munsell BrownB ATPB9005 RAL 9005 Black ATPC RAL 9001 Cream ATPB7021 RAL 7021 Black ATPOW RAL 1013 Oyster White ATPBL Black Lava (S109) ATPGW RAL 9002 Gray White (IH148) ATPBM RAL 9005 (Jet Black (T009) ATPJB RAL 9005 Jet Black (S067) Hoffman touch-up paint pens are used to repair the finish of t ou Ch- u p pA int p ens enclosures and panels. Furnished in .33-oz. pens. Bulletin: A80 Catalog Number Paint Color ATPG7035LP RAL 7035 Light Gray ATPW60HGP Hoffman 60 White ATPG20GLP ANSI 61 Gray EQUIPMENT PROTECTION SOLUTIONS PH 763.422.2211 FAX 763.422.2600 HOFFMANONLINE.COM ACCessories 2 Spec-00566 F
