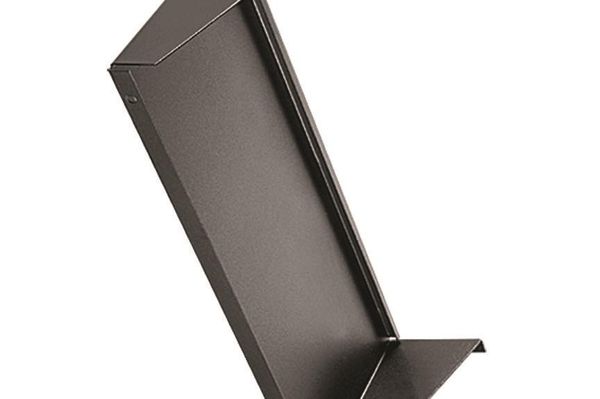

Shelve S, Keyboard Tray S and Gland Pla TeS Folding Shelve S Spec-00035 STainle SS STeel FoldinG Shel F Maximum Maximum Size AxB Distributed Distributed Catalog Number in./mm Load Rating (lb.) Load Rating (kg) ACSHELF1212SS 12.00 x 12.00 150 68 305 x 305 ACSHELF1818SS 18.00 x 18.00 150 68 457 x 457 ACSHELF2424SS 24.00 x 24.00 150 68 610 x 610 Supports instruments and test equipment used to install and maintain electrical components in an enclosure. Also ideally suited for supporting laptop computers, monitoring units and other equipment used with programmable controllers. The shelf can be installed on the inside or outside surface of larger Hoffman industrial enclosures (except PROLINE). Automatically locks in the horizontal position when raised. When not in use, the shelf folds down and projects only 1 in. (25 mm) from the mounting surface. Constructed of 304 stainless steel with a brushed finish. Maintains UL/CSA Type 4, 4X and 12 rating when properly installed on a Hoffman enclosure. Bulletin: A80 l arG e FoldinG Shel F Maximum Maximum Size AxB Distributed Distributed Catalog Number in./mm Load Rating (lb.) Load Rating (kg) Finish AASHLF1218 18.00 x 12.00 150 68 White 457 x 305 AA61SHLF1218 18.00 x 12.00 150 68 Gray 457 x 305 AA35SHLF1218 18.00 x 12.00 150 68 Light gray 457 x 305 AASHLF1818 18.00 x 18.00 150 68 White 457 x 457 AA61SHLF1818 18.00 x 18.00 150 68 Gray 457 x 457 Supports instruments and test equipment used to install and AA35SHLF1818 18.00 x 18.00 150 68 Light gray maintain electrical components in an enclosure. Also ideally 457 x 457 suited for supporting laptop computers, monitoring units and AASHLF2424 24.00 x 24.00 150 68 White other equipment used with programmable controllers. The shelf 610 x 610 can be installed on the inside or outside surface of larger Hoffman AA61SHLF2424 24.00 x 24.00 150 68 Gray industrial enclosures (except PROLINE). Automatically locks in the 610 x 610 horizontal position when raised. When not in use, the shelf folds AA35SHLF2424 24.00 x 24.00 150 68 Light gray to 1.73 in. (44 mm) from the mounting surface. All parts are heavy 610 x 610 gauge steel. Maintains UL/CSA Type 4 and 12 when properly intalled on a Hoffman enclosure. Bulletin: A34Y 1 a cceSS orieS SUBJECT TO CHANGE WITHOUT NOTICE EQUIPMENT PROTECTION Spec-00035 SShelve S, Keyboard Tray S and Gland Pla TeS Shelve S For o pen Frame r ack S d ouble-Sided Solid a luminum Shel F Mounts on 19-in. open frame rack. Two shelves form double-sided shelf. Uses 4U rack space. Made of 0.090-in. thick aluminum with brushed finish. Maximum load rating: 100 lb. (45.4 kg) per side, 200 lb. (90.7 kg) total Bulletin: DA cc Y H x W x D in./mm Fits Rack Includes Catalog Number Rack Units ESHDA19 5.62 x 19.31 x 9.37 19 in. 2 shelves 4 143 x 490 x 238 d ouble-Sided, Solid a luminum, h eavy d u Ty Shel F Mounts on open frame rack. Two shelves form double-sided shelf. Uses 4U rack space. Made of 0.090-in. thick aluminum with brushed finish. Maximum Load Rating: 150 lb. (68.0 kg) per side, 300 lb. (136.1 kg) total Bulletin: DA cc Y H x W x D in./mm Fits Rack Includes Catalog Number Rack Units ESHDHDA19 6.37 x 19.31 x 10.00 19 in. 2 shelves 4 162 x 490 x 254 Sin Gle-Sided Solid a luminum Shel F Mounts in a cabinet or on a 19-in. open-frame rack and can be wall mounted. Made of 0.090-in. thick aluminum with brushed finish. Maximum load rating: 100 lb. (45.4 kg) Bulletin: DA cc Y H x W x D in./mm Fits Rack Catalog Number Rack Units ESHA19 5.25 x 18.31 x 15.00 19 in. 3 133 x 465 x 381 Sin Gle-Sided Solid-S Teel Shel F Solid shelf mounts to either front or rear flange of open-frame rack. Uses 3U of rack space. Steel with textured black finish. Load rating: 150 lb. (68.0 kg) Bulletin: DA cc Y H x W x D Catalog Number in./mm Fits Rack Rack Units ESH19S 4.85 x 19.00 x 10.50 19 in. 3 123 x 483 x 267 ESH23S 4.85 x 23.00 x 10.50 23 in. 3 123 x 584 x 267 EQUIPMENT PROTECTION PH 763.422.2211 FAX 763.422.2600 Pent Air Protect.com a cceSS orieS 2 Spec-00035 S
