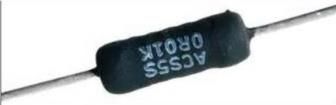

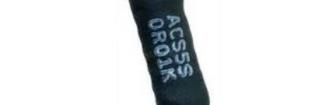

ACS5S ACS10S Silicone Coated Axial Resistors The design of the ACS resistor provides a good balance of power density, stability and resistance to environment for a broad range of industrial power applications, such as drives and controls. Good ratio between power capability and physical size Wound to maximise high pulse capability Low inductive versions available RoHS Compliant Characteristics Tolerance (Code): 1% (F), 5% (J) Temperature coefficient: Resistance wire 20ppm Insulation resistance: 100V > 1000MR Dielectric withstand voltage: 500V Short time overload: (0.5% +0.1) R, 5 times power 5 seconds Load life: (1% +0.05) R, 1000 hours at rated load Preferred value range: E24 series standard, E12 for values >10K Electrical Specicfi ations Max Resistance Wattage Working Type Operating Temperature (W) Voltage Inductive Non-inductive (V) ACS5S 5W -55C to +275C 157 R05 - 22K R05 - 2K ACS10S 10W -55C to +350C 700 R1 - 30K R1 - 5K Dimensions (mm) C BC D B (1.5) E (0.8) D (0.02) C (1) ACS5S 12.7 4.78 0.8 35 ACS10S 44.2 8.52 1.0 35 E Ordering Procedure Standard Resistor: Series, N for Non-inductive style, Resistance Value, Tolerance, Packaging Style (TA or BULK for ACS5S) eg. ACS5S 4K7 J / ACS5SN 2K J ARCOL UK Limited, The information contained herein does not form part of a Threemilestone Ind. Estate, contract and is subject to change without notice. ARCOL Truro, Cornwall, TR4 9LG, UK. operate a policy of continual product development, therefore, T +44 (0) 1872 277431 specifications may change. F +44 (0) 1872 222002 It is the responsibility of the customer to ensure that the E sales arcolresistors.com component selected from our range is suitable for the intended www.arcolresistors.com application. If in doubt please ask ARCOL. Page 1 of 2 1/13.11ACS5S ACS10S Silicone Coated Axial Resistors Derating Curve 100 80 60 40 20 ACS10S ACS5S 0 -55 25 75 125 175 225 275 350 Ambient Temperature (C) ARCOL UK Limited, The information contained herein does not form part of a Threemilestone Ind. Estate, contract and is subject to change without notice. ARCOL Truro, Cornwall, TR4 9LG, UK. operate a policy of continual product development, therefore, T +44 (0) 1872 277431 specifications may change. F +44 (0) 1872 222002 It is the responsibility of the customer to ensure that the E sales arcolresistors.com component selected from our range is suitable for the intended www.arcolresistors.com application. If in doubt please ask ARCOL. Page 2 of 2 1/13.11 Power Rated %
