SMPW-CC-J-F Omega

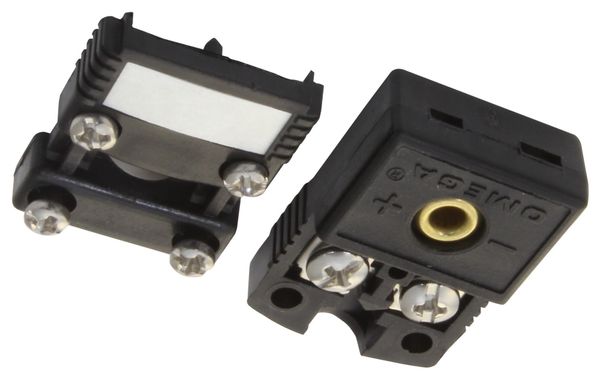

Side Load Equal to Stainless Steel Ultimate Miniature Size Connector with Integral Cable Clamp Cap SMPW-CC Series Terminate straight wire, wire loop not necessary. U Integral Cap+Cable Clamp U Strain Relief With Grommet 1 Back plate 8 supplied adjustable to hold U Captive Cover Screws 40 AWG to 5.5 mm U Captive Clamp Screws (0.22 ) OD. U Accepts Stranded or Solid Wire as Small as Grommets included, For grommet options 40 AWG Up to 20 AWG, or visit us online. Overbraid, TWSH, Armored Contact Up to 5.5 mm (0.22 ) OD washers. U Contact Washers for Quick Connect Wire Termination Use Straight Wire All screws are No Wire Loop Required combination head. U Internal Wire Divider U Write-On Window SMPW-CC-K-M shown larger than actual size. U Combination Phillips/ Slot Screws Actual size. U 100% Top Side Assembly U Glass Filled Nylon Rated From -29 to 180C (-20 to 356F) Note: Minor discoloration of connector may occur between 150C (302F) and 180C (356F). Electrical properties are not affected. SMPW-CC-K-F shown larger than actual size. G-25 Incredible Labor Saver No Loose Screws, All Cover Screws Are Captive Reduce Assembly Time From 3 Minutes to Less Than 1 Minute SMPW-CC-K-M Male shown actual Connector size. SMPW-CC-K-F shown actual 29.57 12.7 (0.5) (1.2) size. 2.5 (0.10) 4.8 2.4 WILL CLAMP FROM (0.19) 40 AWG WIRE UP TO (0.09) 5.5 (0.22) SOFT OR ARMORED CABLE 20.6 3.17 8 4.9 (0.19) WIRE ACCESS 3.17 0.8 (0.81) (0.13) (0.31) IN CONNECTOR BODY (0.03) (0.13) 34.11 (1.3) Female Discount Schedule 8 17 Connector (0.31) (0.66) 1-10 .................................... Net 11-49 ...................................5% 7.1 50-99 .................................10% (0.28) = diameter 100-999 .............................15% Dimensions: mm (inch) 25.4 1000-4999 .........................20% (1.0) 5000 and over....................25% G To Order Compensating Alloy ANSI Alloy Used in Connector Color Glass-Filled Nylon Model Number Code (+) (-) Code Male Female CHROMEGA ALOMEGA Yellow SMPW-CC-K-M SMPW-CC-K-F Copper Constantan Blue SMPW-CC-T-M SMPW-CC-T-F Iron Constantan Black SMPW-CC-J-M SMPW-CC-J-F U W U CHROMEGA Constantan Purple SMPW-CC-E-M SMPW-CC-E-F U U W Copper RNX/SNX Green SMPW-CC-R/S-M SMPW-CC-R/S-F U U W CPX CNX Red SMPW-CC-C-M SMPW-CC-C-F UU W Copper Copper White SMPW-CC-U-M SMPW-CC-U-F U U W OMEGA-P OMEGA-N Orange SMPW-CC-N-M SMPW-CC-N-F Ordering Example: SMPW-CC-K-M clamp cap, Type K, flat pin male. U W U UU W U W Quick Assembly Tool U SMP-CC-TOOL shown smaller than actual size. 3. Tighten 1. Place back plate captive screws and SMPW body 2. Terminate straight wire G-26 Pull Test Highest Rating
