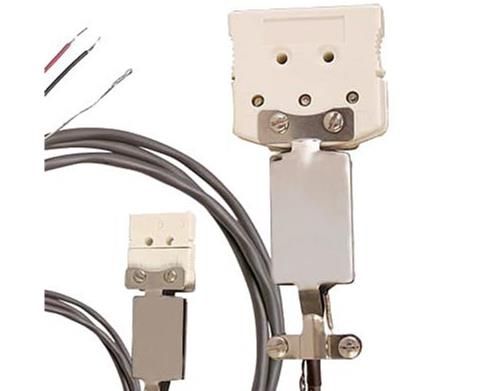

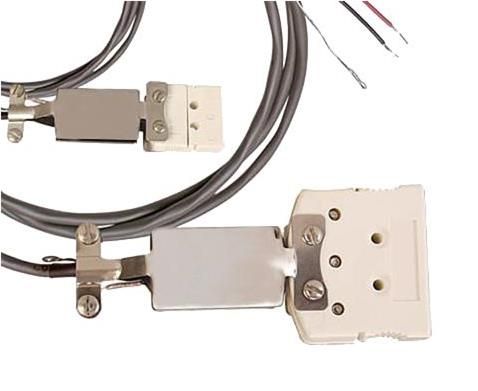

Contact Sales for Quantity Discounts Just Plug Your Probe in and Youre Wired Connector-Transmitter for RTDs and Thermocouples Replace Other Style Transmitters SPRTX Series with a Connector-Transmitter TM The Smart Connector Dual locking Shown actual size. clips included. PR-13-2-100-(3/16)-12-E RTD probe sold separately, visit OMEGA Exclusive OMEGA for details. U 2-Wire, 4 to 20 mA Output U Models for 100 , 0.00385 3-Wire RTDs and J, K, or T Thermocouples Miniature 2-wire RTD U Encapsulated Electronics connector-transmitter, shown close to actual size. Housing U High Accuracy, Each connector-transmitter comes fully assembled, Repeatability, and complete with connector, Stability built-in transmitter and 3 m (10 ) of cable. U Factory CalibratedNo Adjustments Required U Provides Open Sensor Wire Signal Indication U RTD Model Compensates Max Input Lead Resistance: 50V for Long Lead Wires Transmitter Operating Temp: or probe across a dedicated -40 to 85C (-40 to 185F) temperature range, providing an Loop Powered amplified, industry-standard, 2-wire Output Connection: 2-wire, The OMEGA 2-wire connector- 4 to 20 mA analog output. shielded cable 3 m (10 ) included transmitters are high-performance, Approvals: CE marked low-cost, industrial RTD and Specifications Weight: 110 g (0.25 lb) max with cable thermocouple transmitters. Both SPRTX Series feature an encapsulated micro Supply voltage: miniature signal conditioner built 9 to 24 Vdc 30 mA max UNIvERSAL CONNECTOR into the connector housing. The Output: Linearized 4 to 20 mA ON THERMOCOUPLE MODELS SPRTX signal conditioner converts Accuracy: 0.5% of FS 23C the resistive change of a 100 , Female connector fits (73F) ambient 0.00385 RTD sensor or probe both standard and across a dedicated temperature miniature probe Repeatability: 0.25C (0.5F) connectors. range into an industry-standard Temperature Effect: 2-wire, 4 to 20 mA analog output. 0.0022 mA/C (0.0012 mA/F) FiTS All The STCTX signal conditioner Max Load: amplifies the non-linear millivolt Actual size. Rmax() = (Vsupply 9V)/0.02 A output of a thermocouple sensor N-33 Standard-Size RTD Connector- TransmitterTwo-Wire Transmitter Built into a Thermocouple Connector STCTX Series PATEnTED Dual locking clips included. Shown actual size. 3 m (10 ) cable KQXL-14U-12 Super included. OMEGACLAD XL Probe, Universal connector- visit OMEGA for details. transmitter with write-on window included. Input Connection: Universal SPRTX Series for RTDs thermocouple connector (UST Series) Range: Supply voltage: 9 to 24 Vdc 30 mA SPRTX-M1, SPRTX-S1: Output: 4 to 20 mA (2-wire) -99 to 208C (-146 to 406F) SPRTX-M2, SPRTX-S2: Accuracy: 0.5% of full scale millivolt 2 to 569C (36 to 1056F) input 23C (73F) plus the non-linearity of the thermocouple Input: 3-wire, PT100 (a = 0.00385) type (Note: The STCTX does not Open Sensor Wire Indication: compensate for thermocouple Leg 1: Open = 27 mA non-linearity) Interfaces with Standard Leg 2: Open = 2.2 mA Ambient Temp Effect: 0.015 mA/C 4 to 20 mA Instrumentation Leg 3: Open = 2.2 mA Max Loop Load: Model DPi8 shown smaller than actual size, Input Connection: visit OMEGA for details. V = (Vsupply 9V)/0.020 A SPRTX-M1, SPRTX-M2: Transmitter Operating Temp: 3-prong miniature connector -40 to 85C (-40 to 185F) (MTP-U-F) Output Connection: 2-wire shielded SPRTX-S1, SPRTX-S: cable 3 m (10 ) included 3-prong standard-size connector Response Time: 120 ms (OTP-U-F) (0 to 63% FS) Dimensions: SPRTX-M1, SPRTX-M2: To Order 24 H x 18 W x 79 mm L Model No. Description (0.96 x 0.70 x 3.12 ) SPRTX-S1, SPRTX-S2: SPRTX-(*)1 RTD connector-transmitter, range: -99 to 208C (-146 to 406F) 36 H x 18 W x 83 mm L SPRTX-(*)2 RTD connector-transmitter, range: 2 to 569C (36 to 1056F) (1.43 x 0.70 x 3.25 ) N STCTX-(**) Thermocouple connector-transmitter, with universal connector Approvals: CE marked Insert M for miniature RTD connector or S for standard-size RTD connector. * Add range, J1, J2, K1, K2, K3, T1 or T2. ** STCTX Series for Accessories Thermocouples Model No. Description Range by Model: STCTX-J1, -K1, -T1: -18 to 121C TX2-100 2-conductor shielded cables, 30 m (100 ) (0 to 250F) PSR-24S Regulated power supply, 24 Vdc, 400 mA, screw terminal STCTX-J2, -K2: -18 to 538C PSR-24L Regulated power supply, 24 Vdc, 400 mA, UL, stripped leads (0 to 1000F) PSR-24L-230 Regulated power supply, 2stripped leads, 230 Vac input, CE STCTX-K3: -18 to 1093C (0 to 2000F) CAL-3 NIST-traceable calibration with data STCTX-T2: -18 to 399C CAL-3-SYSTEM CAL-3 calibration with probe (0 to 750F) Each connector-transmitter comes fully assembled, complete with connector, built-in Input: Thermocouple signal transmitter and 3 m (10 ) of cable. (ungrounded sensors only) Note: The SPRTX and STCTX Series are not for use in medical or nuclear applications, nor in Type J, K or T by model flammable or explosive environments. Ordering Example: SPRTX-S2, RTD standard size connector-transmitter with high Open Sensor Indication: 22 to 27 mA temperature range, PSR-24L power supply. N-34
