TH-44031-40-T Omega

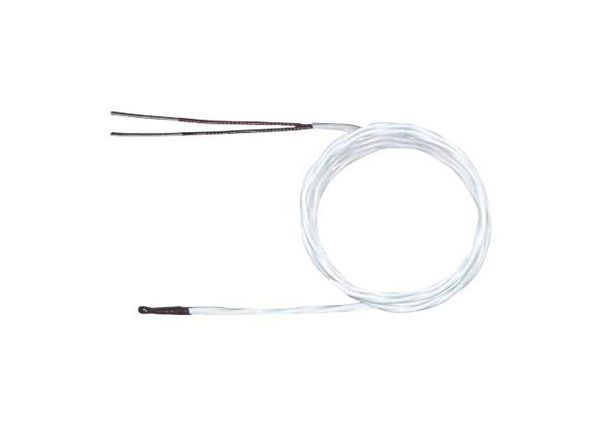

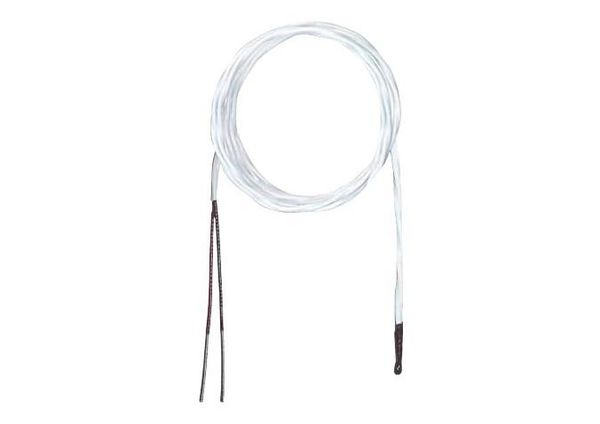

Fast Response Thermistor Sensors Exposed Element with Lead Wires Thermistor Bead Enlarged View TH-44000 Series TH-44004-40-T shown actual size. 1 13 ( 2) 2.5 (0.098) U Fast Response (1 Second Max) U Interchangeability of 0.2C Standard (0.1C Optional) U Operating Range of -80 to 120C (-110 to 250F) Standard -80 to 75C (-110 to 167F) Optional U 1 m (40 ) of 26 AWG Stripped leads Stranded PFA Insulated standard. and Jacketed Cable with Stripped Leads Standard These elements are not intended for Dimensions: mm (inch) U Optional Phone Plug direct immersion into liquids. Connector To Order Visit omega.com/th-44000 for Pricing and Details Resistance Maximum Storage and Working 25C Working Interchangeability Temp for Best Model No. () Temp 0 to 70C Stability TH-44004-40-T 2252 150C 0.2C -80 to 120C (-110 to 250F) TH-44005-40-T 3000 150C 0.2C -80 to 120C (-110 to 250F) TH-44007-40-T 5000 150C 0.2C -80 to 120C (-110 to 250F) TH-44006-40-T 10000 150C 0.2C -80 to 120C (-110 to 250F) TH-44008-40-T 30000 150C 0.2C -80 to 120C (-110 to 250F) Notes: For additional cable length, add required length to end of the model number for additional cost. For a phone plug, add suffix -PP to the model number for additional cost. For tighter interchangeability, substitute the thermistor part number from the table below. Optional Thermistors Resistance Maximum Storage and Working 25C Working Interchangeability Temp for Best Model No. () Temp 0 to 70C Stability 44033 2252 75C (167F) 0.1C -80 to 75C (-110 to 167F) 44030 3000 75C (167F) 0.1C -80 to 75C (-110 to 167F) 44034 5000 75C (167F) 0.1C -80 to 75C (-110 to 167F) 44031 10,000 75C (167F) 0.1C -80 to 75C (-110 to 167F) 44032 30,000 75C (167F) 0.1C -80 to 75C (-110 to 167F) Ordering Examples: TH-44004-40-T-PP, thermistor sensor with a resistance of 2252 at 25C, interchangeability of 0.2C, 1 m (40 ) of PFA insulated and jacketed cable and a phone plug connector. TH-44034-80-T-PP, thermistor sensor with a resistance of 5000 at 25C, interchangeability of 0.1C, 2 m (80 ) of PFA insulated and jacketed cable and a phone plug connector. D-15X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Omega manufacturer: Other Similar products are found below : DPG409-100DWU OM-DAQXL-1-NA CASS-116U-12 DH-1-20-J-12 GG-J-24-SLE-1000 HPC-AU-P HPC-IR-P JMQSS-062U-6 KHSS- 18G-RSC-12 KHXL-18G-RSC-12 KMQIN-125U-6 KMQXL-125G-12 KMQXL-125U-6 KQSS-18G-6 KQXL-14U-36 KQXL-18G-12 KQXL-18U-12 NB1-CAXL-14U-12 NB3-CAXL-14U-18 P-M-1/10-1/4-6-0-P-3 PX309-015A5V PX309-1KGI PX309-10KGV PX309- 100AI PX309-100AV PX309-100GI PX309-100GV PX309-3KG5V PX319-V050G5V PX319-005AI PX319-050A5V PX319-050GI PX319-10KGI PX319-100GV PX319-2KGI PX319-200AV PX319-200A5V PX319-300G5V PX319-5KG5V PX319-500G5V PX319- 7.5KGI PX319-7.5KG5V PX329-1KG5V PX329-10KGI PX329-2KGI PX409-015DWUI PX409-015VUSBH PX409-015VV PX409- 050A5V PX409-10WDWU5V
