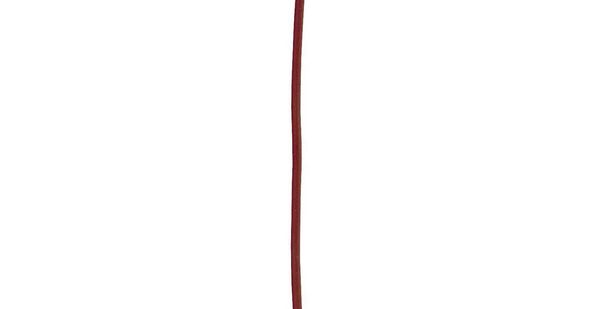

TT-K-24-25 Omega

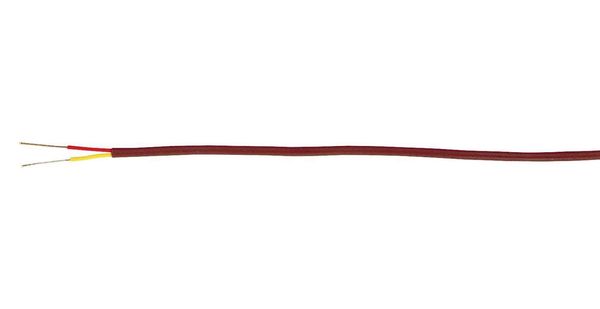

SLE Special Limits of Error Available Thermocouple Wire Duplex Insulated Duplex Insulated CHROMEGA -ALOMEGA Duplex ANSI Type K ANSI To order IEC color color ANSI Color Code: Positive Wire, Yellow Negative Wire, Red Overall, Brown code code visit shown us online OMEGA Engineering does not use reprocessed PFA or PVC in manufacturing thermocouple wire Insulation Max. Temp Nominal Size AWG Type Wt. kg/300 m Insulation No. Model Number Wire mm (inch) (lb/1000 ) Conductor Overall C F 14 XC-K-14 Solid 1090 2000 3.6 x 5.0 (0.140 x 0.200) 18 (38) 20 XC-K-20 Solid 980 1800 3.4 x 4.8 (0.135 x 0.190) 8 (16) 20 XT-K-20 Solid 980 1800 2.7 x 3.9 (0.105 x 0.155) 7 (15) Ceramic* 20 XL-K-20 Solid Nextel Ceramic Nextel Ceramic 980 1800 2.4 x 3.4 (0.095 x 0.135) 7 (14) 24 XC-K-24 Solid 870 1600 2.9 x 4.4 (0.115 x 0.175) 6 (12) 24 XT-K-24 Solid 870 1600 2.2 x 3.4 (0.088 x 0.132) 5 (11) 24 XL-K-24 Solid 870 1600 2.0 x 3.0 (0.078 x 0.116) 5 (10) Vitreous Silica* 20 XR-K-20 Solid Refrasil Refrasil 870 1600 2.9 x 4.6 (0.115 x 0.180) 6 (14) 14 XS-K-14 Solid 1090 2000 3.6 x 5.0 (0.140 x 0.200) 16 (35) Silica* 20 XS-K-20 Solid Silica Silica 980 1800 2.7 x 3.9 (0.105 x 0.155) 6 (12) 24 XS-K-24 Solid 870 1600 2.2 x 3.4 (0.088 x 0.132) 5 (10) High Temp. 20 HH-K-20 Solid High High 704 1300 1.5 x 2.7 (0.060 x 0.105) 4 (9) Glass** 24 HH-K-24 Solid Temp Glass Temp Glass 704 1300 1.4 x 2.3 (0.055 x 0.090) 3 (5) 20 GG-K-20 Solid Glass Braid 482 900 1.5 x 2.1 (0.060 x 0.095) 4 (9) 20S GG-K-20S 7 x 28 Glass Braid 482 900 1.5 x 2.5 (0.060 x 0.100) 4 (9) 24 GG-K-24 Solid Glass Braid 482 900 1.3 x 2.0 (0.050 x 0.080) 3 (5) 24S GG-K-24S 7 x 32 Glass Braid 482 900 1.3 x 2.2 (0.050 x 0.085) 3 (5) Glass 26 GG-K-26 Solid Glass Wrap Glass Braid 482 900 1.1 x 1.9 (0.045 x 0.075) 2 (4) 28 GG-K-28 Solid Glass Wrap 482 900 1.0 x 1.4 (0.040 x 0.055) 2 (3) 30 GG-K-30 Solid Glass Wrap 482 900 0.9 x 1.3 (0.037 x 0.050) 2 (3) 36 GG-K-36 Solid Glass Wrap 482 900 0.8 x 1.1 (0.033 x 0.045) 1 (2) Glass with 20 GG-K-20-SB Solid 482 900 2.3 x 3.0 (0.090 x 0.120) 6 (14) Stainless 20S GG-K-20S-SB 7 x 28 Glass Stainless Steel 482 900 2.3 x 3.2 (0.090 x 0.127) 7 (15) Steel 24 GG-K-24-SB Solid Braid over 482 900 2.2 x 3.0 (0.085 x 0.117) 5 (11) Overbraid 24S GG-K-24S-SB 7 x 32 Glass 482 900 2.0 x 2.8 (0.080 x 0.110) 5 (11) Kapton 20 KK-K-20 Solid 260 500 1.5 x 2.5 (0.060 x 0.100) 5 (11) Fused 20S KK-K-20S 7 x 28 Fused Fused 260 500 1.5 x 2.7 (0.060 x 0.105) 5 (11) Polymide 24 KK-K-24 Solid Polymide Polymide 260 500 1.3 x 1.9 (0.050 x 0.075) 3 (6) Tape 24S KK-K-24S 7 x 32 Tape Tape 260 500 1.3 x 2.2 (0.050 x 0.085) 3 (6) 30 KK-K-30 Solid 260 500 1.0 x 1.4 (0.040 x 0.055) 3 (5) 30 TG-K-30 Solid 260 500 0.9 x 1.2 (0.034 x 0.047) 1 (2) PFA 36 TG-K-36 Solid PFA Glass Braid 260 500 0.7 x 1.0 (0.028 x 0.038) 1 (2) Glass 40 TG-K-40 Solid 260 500 0.7 x 0.9 (0.026 x 0.035) 1 (2) 20 TT-K-20 Solid 260 500 1.7 x 3.0 (0.068 x 0.116) 5 (11) 20 TT-K-20S 7 x 28 260 500 1.9 x 3.2 (0.073 x 0.126) 5 (11) Neoflon 22 TT-K-22S 7 x 30 260 500 1.7 x 3.4 (0.065 x 0.133) 4 (9) PFA 24 TT-K-24 Solid PFA PFA 260 500 1.4 x 2.4 (0.056 x 0.093) 3 (6) (High 24 TT-K-24S 7 x 32 260 500 1.6 x 2.6 (0.063 x 0.102) 3 (6) Performance) 30 TT-K-30 Solid 260 500 0.6 x 1.0 (0.024 x 0.040) 1 (2) 36 TT-K-36 Solid 260 500 0.5 x 0.8 (0.019 x 0.030) 1 (2) 40 TT-K-40 Solid 260 500 0.4 x 0.7 (0.017 x 0.026) 1 (2) PFA 20 TT-K-20-TWSH Solid 260 500 3.7 (0.15) 9 (20) Polymer 20S TT-K-20S-TWSH 7 x 28 PFA Polymer PFA Polymer 260 500 3.8 (0.15) 9 (20) w/Twisted 24 TT-K-24-TWSH Solid and Shielding 260 500 2.7 (0.11) 4 (9) and Shielded 24S TT-K-24S-TWSH 7 x 32 260 500 2.9 (0.12) 4 (9) Conductors 20 FF-K-20 Solid 200 392 1.7 x 3.0 (0.068 x 0.116) 5 (11) FEP FEP Neoflon FEP 24 FF-K-24 Solid 200 392 1.7 x 3.0 (0.056 x 0.092) 3 (6) FEP 20 FF-K-20-TWSH Solid 200 392 3.7 (0.15) 9 (20) Polymer 20S FF-K-20S-TWSH 7 x 28 FEP Polymer FEP Polymer 200 392 3.8 (0.15) 9 (20) w/Twisted 24 FF-K-24-TWSH Solid and Shielding 200 392 2.7 (0.11) 4 (9) and Shielded 24S FF-K-24S-TWSH 7 x 32 200 392 2.9 (0.12) 4 (9) Conductors TFE Tape 20 TFE-K-20 Solid 260 500 1.5 x 2.5 (0.060 x 0.100) 5 (11) Fused Polymer 20S TFE-K-20S 7 x 28 TFE Tape 260 500 1.5 x 2.7 (0.060 x 0.105) 5 (11) TFE Tape 24 TFE-K-24 Solid Polymer 260 500 1.3 x 1.9 (0.050 x 0.075) 3 (6) Polymer 24S TFE-K-24S 7 x 32 260 500 1.3 x 2.2 (0.050 x 0.085) 3 (6) Polyvinyl 24 PR-K-24 Solid Polyvinyl (Rip Cord)*** 105 221 1.4 x 2.3 (0.050 x 0.086) 3 (5) 24 PP-K-24S 7 x 32 (Polyvinyl) 105 221 2.0 x 3.4 (0.082 x 0.134) 3 (5) Weight of spool and wire rounded to the next highest kg (lb) (does not include packing material). Overall color clear. To order special limits of error wire, add -SLE to model number before spool length. Has color tracers on jacket and conductors. * HH Wire has trace thread in positive leg, negative leg is red, overall has trace thread. Two insulated leads bonded together, but with no overwrap. ** *** Additional Type K insulated wires are available. See Fused Tape Insulated TFE-K and KK-K Series. Ordering Example: XC-K-20-SLE-1000, 1000 (300 m) of Type K duplex insulated special limits of error thermocouple wire. H-29X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for omega manufacturer: Other Similar products are found below : PX309-5KGI SMPW-J-M 5SC-TT-T-36-36 5SRTC-TT-K-30-72 MJP2-12-T CASS-116U-12 CHAL-002 DH-1-20-J-12 GG-J-24-SLE-1000 HPC-AU-P HPC-IR-P KHSS-18G-RSC-12 KMQIN-125U-6 KMQXL-125G-12 KMQXL-125U-6 KQSS-18G-6 KQXL-14U-36 KQXL- 18G-12 NB3-CAXL-14U-18 PX309-100AI PX309-100AV PX309-100GV PX319-V050G5V PX319-V100G5V PX319-002GI PX319- 050GI PX319-100GV PX319-200AV PX319-200A5V PX319-300G5V PX319-500G5V PX319-7.5KGI PX319-7.5KG5V PX329-1KG5V PX329-10KGI PX329-2KGI PX409-015VUSBH PX409-015VV PX409-050A5V PX409-1.0KGUSBH PX409-10WVI PX409-100A5V PX409-5.0KG5V PX409-500GUSBH PX41T0-300GI PX419-250GI P10R-005 SA1-RTD-4W-120 SA1-T-72-SRTC SA1XL-K-SRTC
