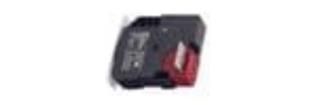

D4JL-2NFA-C5 Omron

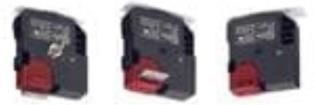

Guard Lock Safety-door Switch D4JL CSM D4JL DS E 4 1 * World s Top Holding Force of 3,000 N *For plastic models, as of May 2008 Two safety circuits and two monitor contacts provide an array of monitoring patterns. Standard gold-clad contacts enable use with ordinary loads and microloads. Models with trapped keys prevent workers from being locked in hazardous work areas. Models with rear release buttons allow people to unlock the Switch and escape if they are locked into hazardous areas. IP67 degree of protection Be sure to read the Safety Precautions on page 21 and the Precautions for All Safety Door Switches. Features Plastic Guard Lock Safety-door Switches Two Safety Circuits and Two Monitor Rank Among the Strongest in the World Contacts A holding force of 3,000 N makes these Switches suitable for large, The D4JL has two safety circuits. It also has two contacts to heavy doors. separately monitor the open/closed status of the door and the status of the lock. Door Open/Closed Lock Monitor Switch Detection Switch 41 42 11 12 To safety circuit To safety circuit 51 52 21 22 To control circuit 63 64 33 34 Monitoring Monitoring the open/ the door lock closed status of the door Models with Rear Release Buttons (See page 4 for a list of models.) A Switch with a rear release button allows the door to be unlocked Models with Trapped Keys from inside a hazardous area in an emergency. OMRON also offers Switches with Special Slide Keys. Refer to the D4NS-SK/D4JL-SK (See page 5 for a list of models.) for details. OMRON also offers Trapped Key Switches (on mechanical lock models only). As long as a person has the trapped key when he enters a hazardous area, he does not have to worry about somebody locking the door and trapping him inside. The door can be opened only by supplying power to the solenoid and then turning the trapped key to unlock the D4JL. There are thirty different types of trapped keys available for use in applications with adjacent hazardous areas. Rear release button Special slide key 1D4JL Model Number Structure Model Number Legend Switches Operation Keys D4JL- - - D4JL-K 123 4 5 6 7 1 1. Conduit Size 1. Operation Key Type 1: Pg13.5 1: Horizontal mounting 2: G1/2 2: Vertical mounting 3: 1/2-14NPT *1 3: Adjustable mounting (horizontal) 4: M20 2. Built-in Switch N: 2NC/1NO + 2NC/1NO (slow-action contacts) P: 2NC/1NO + 3NC (slow-action contacts) Q: 3NC + 2NC/1NO (slow-action contacts) R: 3NC + 3NC (slow-action contacts) 3. Head Material F: Plastic 4. Door Lock and Release A: Mechanical lock/24 VDC solenoid release G: 24 VDC Solenoid lock/Mechanical release 5. Indicator C: 24 VDC (green LED indicator) D: 24 VDC (orange LED indicator) 6. Release Key Type 5: Special release key *2 6: Special release key + rear release button *2 7: Trapped key 7. Trapped Key Type 01 to 30: 30 types *3 Note: A 24 VDC solenoid lock cannot be combined with a trapped key. A 24 VDC solenoid lock cannot be combined with a special release key and rear release button. *1. Models with M20 conduits come with an M20 to 1/2-14NPT Adaptor. *2. Release keys are provided. *3. Thirty types of trapped keys can be manufactured. Specify the trapped key type in numerical order starting from 01 when ordering. Switches (Connector type) D4JL-2RFA-D5N-X 1 2 3 4 5 6 7 8 1. Conduit Size 5. Indicator 2: G1/2 C: 24 VDC (green LED indicator) 2. Built-in Switch D: 24 VDC (orange LED indicator) R: 3NC + 3NC (slow-action contacts) 6. Release Key Type 3. Head Material 5: Standard release key F: Plastic 7. Connection Method 4. Door Lock and Release N: Connector type A: Mechanical lock/24 VDC solenoid release 8. Cover Mounting Screws T: Standard screws X: Special screws Note: For more information about connector types, contact your OMRON sales representative. 2
