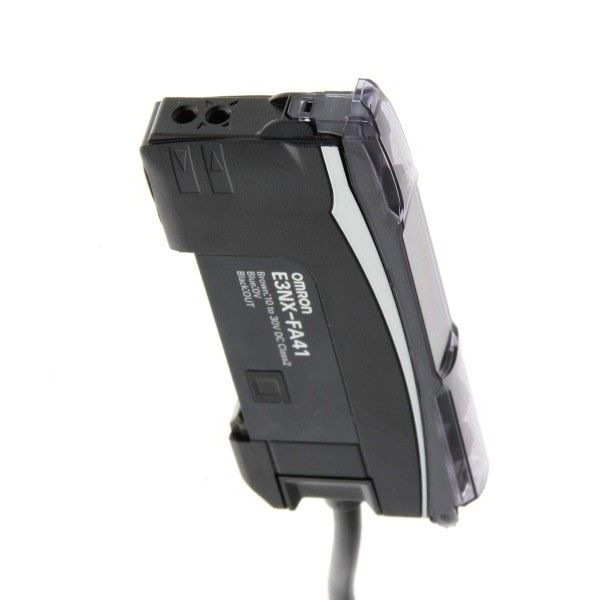

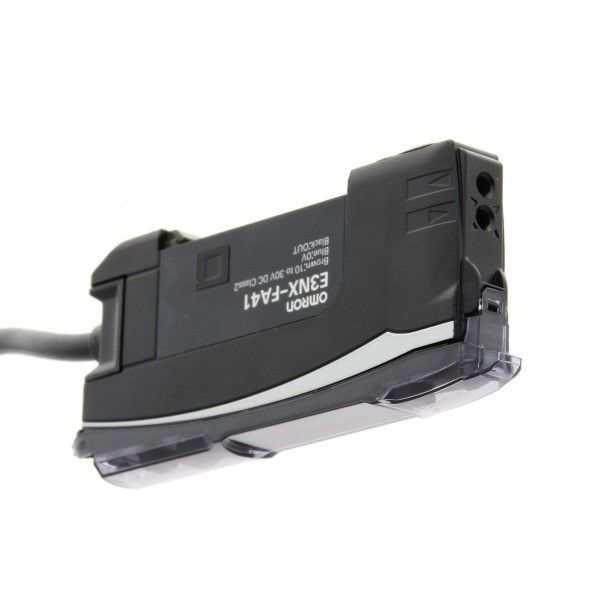

E3NXFA11AN2M Omron

Smart Fiber Amplifier Units E3NX-FA CSM E3NX-FA DS E 16 4 A Smart Fiber Amplifier Unit with Ultra-stable Detection and Ultra-easy Setup Improved basic performance with 1.5 times the sensing distance and approx. 1/10th the minimum sensing object.* Ultra-easy setup with Smart Tuning with a light intensity adjustment range expanded 20 times to 40,000:1. Optimum stable detection achieved with light intensity adjustment even for saturated incident light. White on black display characters for high visibility. Solution Viewer that shows the passing time and difference in incident levels and Change Finder that allows you to see display values even for fast workpieces. For the most recent information on models that have been certified for * Compared to the E3X-HD. safety standards, refer to your OMRON website. Refer to the Safety Precautions on page 17. Ordering Information Fiber Amplifier Units (Dimensions pages 19 and 20) Model Type Connecting method Appearance Inputs/outputs NPN output PNP output E3NX-FA11 2M E3NX-FA41 2M Pre-wired (2 m) 1 output E3NX-FA11-5 2M --- *1 Standard models Wire-saving Connector 1 output E3NX-FA6 E3NX-FA8 Pre-wired (2 m) 2 outputs + 1 input E3NX-FA21 2M E3NX-FA51 2M 1 output + 1 input E3NX-FA7 E3NX-FA9 Advanced models Wire-saving Connector 2 outputs E3NX-FA7TW E3NX-FA9TW 1 output + 1 input E3NX-FA24 E3NX-FA54 M8 Connector 2 outputs --- E3NX-FA54TW *1. This type can prevent mutual interference for two units in the SHS2 mode. 1E3NX-FA Model Type Connecting method Appearance Inputs/outputs NPN output PNP output Pre-wired (2 m) 1 output E3NX-FAH11 2M E3NX-FAH41 2M Infrared models Wire-saving Connector 1 output E3NX-FAH6 E3NX-FAH8 Analog output Pre-wired (2 m) 2 outputs E3NX-FA11AN 2M E3NX-FA41AN 2M models E3NX-FA0 Connector for Sensor --- Communications Unit E3NX-FAH0 Model for Sensor Communications Unit *2 Connector for Sensor Communications Unit 1 output E3NX-FA10 2M E3NX-FA40 2M Pre-wired (2 m) *2. A Sensor Communications Unit is required if you want to use the Fiber Amplifier Unit on a network. Accessories (Sold Separately) Wire-saving Connectors (Required for models for Wire-saving Connectors.) (Dimensions page 21) Connectors are not provided with the Fiber Amplifier Unit and must be ordered separately. Note: Protective stickers are provided. Type Appearance Cable length No. of conductors Model Applicable Fiber Amplifier Units Master Connector 4 E3X-CN21 E3NX-FA7 E3NX-FA7TW E3NX-FA9 E3NX-FA9TW Slave Connector 2 E3X-CN22 2 m Master Connector 3 E3X-CN11 E3NX-FA6 E3NX-FA8 E3NX-FAH6 E3NX-FAH8 Slave Connector 1 E3X-CN12 Sensor I/O Connectors (Required for models for M8 Connectors.) (Dimensions page 21) Connectors are not provided with the Fiber Amplifier Unit and must be ordered separately. Size Cable Appearance Cable type Model 2m XS3F-M421-402-A Straight 5m XS3F-M421-405-A M8 Standard cable 4-wire 2m XS3F-M422-402-A L-shaped 5m XS3F-M422-405-A 2
