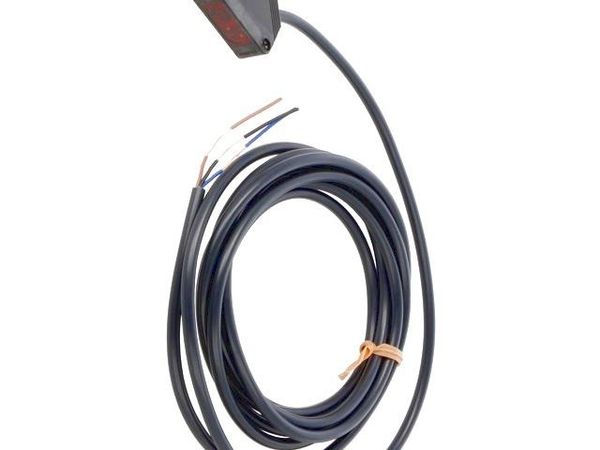

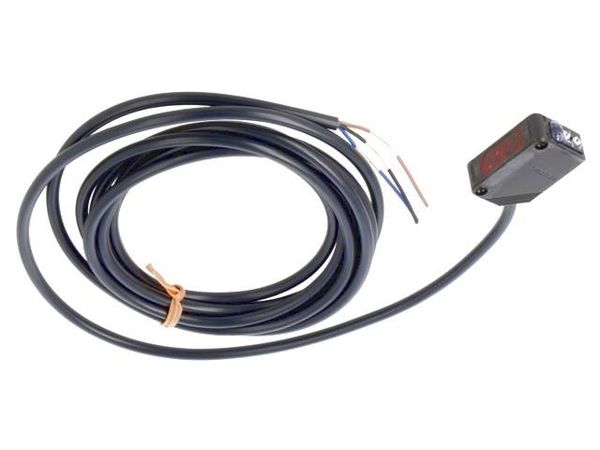

E3Z-L61 2M Omron

F502-EN2-04.book Seite 43 Dienstag, 26. Juli 2005 5:48 17 General purpose sensors in compact plastic housing E3Z Compact housing size and high power LED for excellent performance-size ratio IP67 and IP69k for highest protection in wet environments Basic performance Easy-to- operate Globalization Reliability Environmental protection Features Basic performance Through-beam Model 30m Dimensions Retroreflective model 10.4mm 20mm (with MSR function) 4m Diffuse-reflective model 1m Distance-setting model 0.2m High protection against water and dust contami- High immunity to electrical interference, such Reliability nants as inverter drives. Eliminates the influ- 120 ence of installation 100 E3Z and on-site condi- 80 tions, thus increasing 60 the reliability of the 40 line. 20 0 3 10 100 Inverter frequency (kHz) E3Z A-43 Inverter noise voltage (V) 31mm E3ZF502-EN2-04.book Seite 44 Dienstag, 26. Juli 2005 5:48 17 Stability E3Z-series reliability covers a wide range of object/background combinations, so ensuring stable detection regardless of workpiece color or reflectivity. E3Z is environmental-friendly, energy-saving. Environmental protection Power Consumption Comparison Conventional sensor Photoelectric Sensor Saves energy * with Built-in Amplifier Approx.30 % less E3Z * The above figure is based on measurement under normal operating conditions. 10-quantity packing reduces waste cartons. Packed incombustibl polyethylene bags free of Styrofoam. * This ECO label is indicated on products that meet the environmental standards established by OMRON. * If this bag is burned, dioxins hazardous to humans are minimal. Recycled paper is used. Standard models provided with a 0.5-m cable are On-going elimination of materials containing available for the elimination of unnecessary ca- lead. ble length. Uses environmentally friendly, lead-free solder. 0.5m type Pb Unnecessary cable length eco 2m type A-44 Standard Photoelectric Sensors
