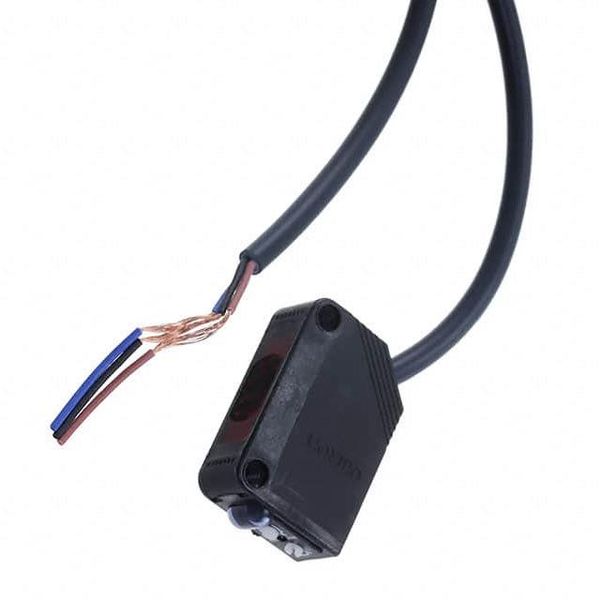

E3Z-T61A-L 2M Omron

Compact Photoelectric Sensor with Built-in Amplifier E3Z E88 I-E-01 rev. 18 The Standard for Photoelectric Sensors with a Secure Track Record of One Million Sold Yearly. Long sensing distance of 30 m for through-beam models, 4 m for retro-reflective models, and 1 m for diffuse-reflective models. Mechanical axis and optical axis offset of less than 2.5 simplifies optical axis adjustment. High stability with unique algorithm that prevents interference of external light. For the most recent information on models that have been certified for safety standards, refer to your OMRON website. Be sure to read Safety Precautions on page 13. Features Industry s Top-level Sensing Distance with Through-beam Built-in Amplifier A separately sold filter is available to prevent mutual interference for 30 m Through-beam Models with red lights sources and a sensing distance of 10 m. Reflective Models include functionality to prevent Retro-reflective with MSR function Distance-settable mutual interference (up to 2 sensors). 4 m 20 cm Long-distance, Through-beam Sensors with a detection distance of 30 m (response time: 2 ms) are also available. Diffuse-reflective 1 m Low-temperature Operation for Applications in Cold-storage Warehouses A wider ambient operating range from 40 to 55C (main models with connectors). We also provide Sensor I/O Connectors with PUR Cables for high resistance to cold environments. Improved Matching of Optical Axis and Mechanical Axis for 30 m mechanical 2.5 max. Through-beam Models and Retro-reflective Models axis The offset between the optical axis and the mechanical axis is kept within 2.5, so the optical axis can Optical axis be accurately set simply by mounting the Sensor according to the mechanical axis. The receiver will always be in the range of light diffusion. Sensor Protection against Incorrect Wiring Through-beam Model receivers and Reflective Models (except the E3Z-LS) 12 to 24 VDC Brown 1 The Sensor includes output reverse polarity protection. Operation Stability indicator indicator Load (A diode to protect against reverse polarity is added to the output line.) 100 mA (orange) (green) (relay) max. Black Photo- 4 electric Sensor ZD main Blue 3 circuit 0 V Protection for NPN output models Complete Compliance with the EU s RoHS Directive Lead, mercury, cadmium hexachrome, polybrominated biphenyl (PBB), and polybrominated diphenyl ether (PBDE) have all been eliminated. Also, burnable polyethylene packaging has Pb been used. eco 1E3Z Ordering Information Sensors Refer to Dimensions on page 14. Red light Infrared light Model Sensing method Appearance Connection method Sensing distance NPN output PNP output Pre-wired (2 m) E3Z-T61 2M *4 *5 E3Z-T81 2M *4 *5 15 m Standard M8 connector E3Z-T66 E3Z-T86 Through-beam Pre-wired (2 m) (Emitter + Receiver) E3Z-T61A 2M *4 E3Z-T81A 2M *4 *3 10 m Standard M8 connector E3Z-T66A E3Z-T86A Pre-wired (2 m) E3Z-T62 2M *4 E3Z-T82 2M 30m Standard M8 connector E3Z-T67 E3Z-T87 Pre-wired (2 m) E3Z-R61 2M *4 *5 E3Z-R81 2M *4 *5 Retro-reflective with *2 4 m MSR function *1 Standard M8 connector (100 mm) E3Z-R66 E3Z-R86 Pre-wired (2 m) E3Z-D61 2M *4 E3Z-D81 2M *4 *5 5 to 100 mm (wide view) Standard M8 connector E3Z-D66 E3Z-D86 Pre-wired (2 m) E3Z-D62 2M *4 *5 E3Z-D82 2M *4 *5 Diffuse-reflective 1 m Standard M8 connector E3Z-D67 E3Z-D87 Pre-wired (2 m) E3Z-L61 2M *4 *5 E3Z-L81 2M *4 *5 9030 mm (narrow beam) Standard M8 connector E3Z-L66 E3Z-L86 20 to 40 mm (BGS min setting) Pre-wired (2 m) E3Z-LS61 2M *4 E3Z-LS81 2M *4 20 to 200 mm (BGS max setting) 40 min. Incident threshold (FGS min setting) Distance-settable Standard M8 Connector E3Z-LS66 E3Z-LS86 Refer to E3Z-LS. 200 min. Incident threshold (FGS max setting) Pre-wired (2 m) E3Z-LS63 2M E3Z-LS83 2M *5 2 to 20 mm (BGS min setting) Standard M8 connector 2 to 80 mm (BGS max setting) E3Z-LS68 E3Z-LS88 1 axis E3Z-G61 2M *4 *5 E3Z-G81 2M *4 *5 Pre-wired (2 m) Slit-type Through- 2 axes E3Z-G62 2M *4 E3Z-G82 2M *4 beam 25 mm 1 axis E3Z-G61-M3J E3Z-G81-M3J Refer to E3Z-G. Pre-wired M8 connector 2 axes E3Z-G62-M3J E3Z-G82-M3J Pre-wired (2 m) E3Z-L63 2M E3Z-L83 2M Limited-reflective for 3020 mm transparent glasses Standard M8 connector E3Z-L68 E3Z-J88 *2 Pre-wired (2 m) E3Z-B61 2M E3Z-B81 2M *4 500 mm (80 mm) Retro-reflective with- Standard M8 connector E3Z-B66 E3Z-B86 out MSR function for *1 *2 Pre-wired (2 m) E3Z-B62 2M *4 E3Z-B82 2M *4 clear, plastic bottles 2 m (500 mm) Standard M8 connector E3Z-B67 E3Z-B87 *1. The Reflector is sold separately. Select the Reflector model most suited to the application. *2. The sensing distance specified is possible when the E39-R1S is used. Values in parentheses indicate the minimum required distance between the Sensor and Reflector. *3. Through-beam Sensors are normally sold in sets that include both the Emitter and Receiver. *4. M12 Standard Pre-wired Connector Models are also availavble. When ordering, add-M1J 0.3 to the end of the model number (e.g., E3Z-T61-M1J 0.3M). The cable is 0.3 m long. *5. M12 Pre-wired Smartclick Connector Models are also availavble. When ordering, add-M1TJ 0.3 to the end of the model number (e.g., E3Z-T61-M1TJ 0.3M). The cable is 0.3 m long. 2
