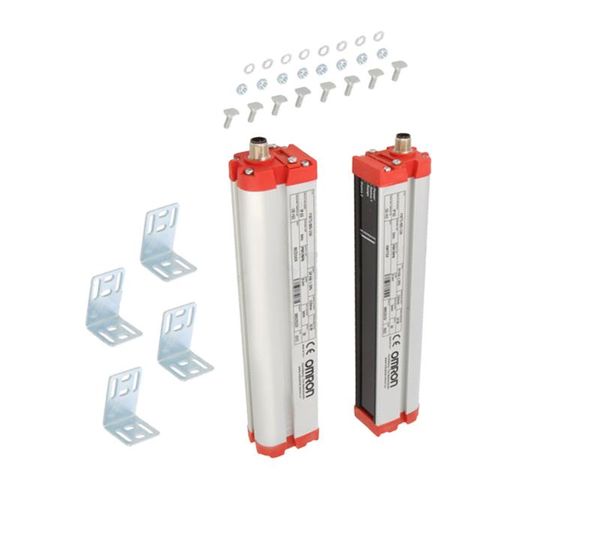

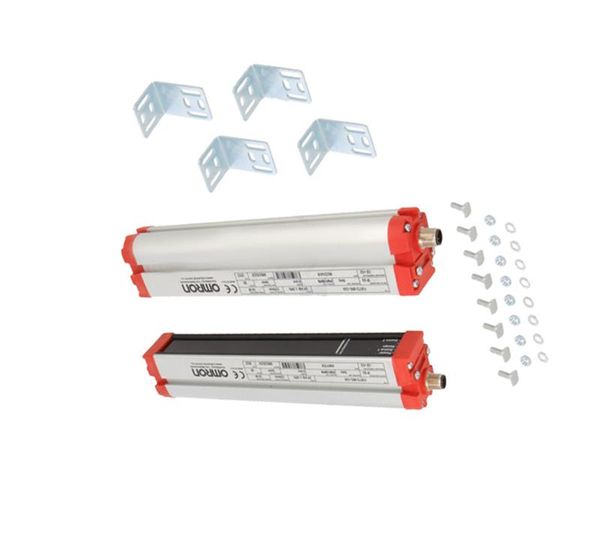

Lightcurtain in robust aluminium housing F3ET2 The F3ET2 lightcurtains provide a reliable area monitoring in a robust housing. The M12 5-pin connectors and optical synchroni- sation between emitter and receiver allow a fast and simple installation without special requirements. Optical synchronisation for reliable operation without additional wiring Robust aluminium housing NPN/PNP and light on/dark on selectable Ordering Information Connection method Sensor Detection Sensing 1 Pitch Channels Output Order code type area (mm) distance Through- 150 5 mm 3 m 30 5 pin PNP/NPN F3ET2-005-150 beam 18 mm 15 m 8 F3ET2-018-150 300 5 mm 3 m 60 F3ET2-005-300 18 mm 15 m 16 F3ET2-018-300 450 5 mm 3 m 90 F3ET2-005-450 18 mm 15 m 24 F3ET2-018-450 600 5 mm 3 m 120 F3ET2-005-600 18 mm 15 m 32 F3ET2-018-600 900 5 mm 3 m 180 F3ET2-005-900 18 mm 15 m 48 F3ET2-018-900 1200 5 mm 3 m 240 F3ET2-005-1200 18 mm 15 m 64 F3ET2-018-1200 1500 5 mm 3 m 300 F3ET2-005-1500 18 mm 15 m 80 F3ET2-018-1500 1800 5 mm 3 m 360 F3ET2-005-1800 18 mm 15 m 96 F3ET2-018-1800 2100 18 mm 15 m 112 F3ET2-018-2100 1 Light-ON / Dark-ON selectable F3ET2 Lightcurtain in robust aluminium housing 1Rating/Specifications Through-beam Item F3ET2-005 F3ET2-018 Sensing distance 0 to 3 m 0 to 15 m Vertical detection area 0 to Max mm Max : 150, 300, 450, 600, 900, 0 to Max mm Max : 150, 300, 600, 900, M M M M 1 2 1200, 1500, 1800 2100 Minimum detectable object size 10 mm 30 mm Pitch 5 mm 18 mm Response time 4 ms + 80 s number of beams Power-on delay 1 s max Light source (wave length) Infrared LED (880 nm) Power supply voltage 24 VDC 20% Current consumption 150 mA max Ambient temperature 10 to 55C Storage temperature 25 to 70C Degree of protection IEC 60529 IP65 Protective circuits Reverse polarity protection, output short-circuit protection Material Case Aluminium Cover Polycarbonate 1 Models with different detection ranges are available in 50 mm intervals. Please contact your OMRON representative. 2 Models with different detection ranges are available in 150 mm intervals. Please contact your OMRON representative. 2 F3ET2 Lightcurtain in robust aluminium housing
