TSA-16A Optifuse

Name: TSA-16A
Brand: Optifuse
SKU: TSA16A_1_Optifuse
Availability: InStock
Rating: 5 (11 reviews)

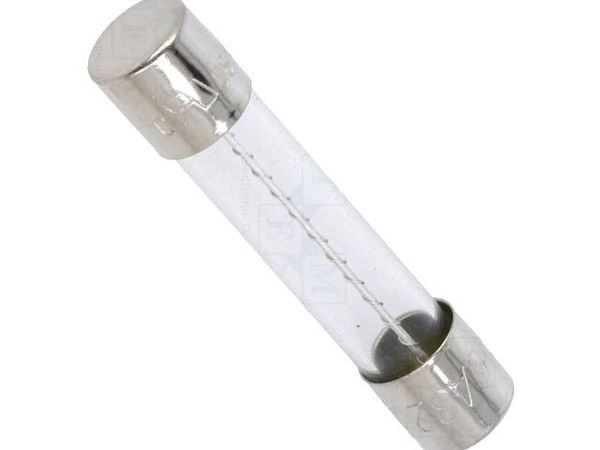

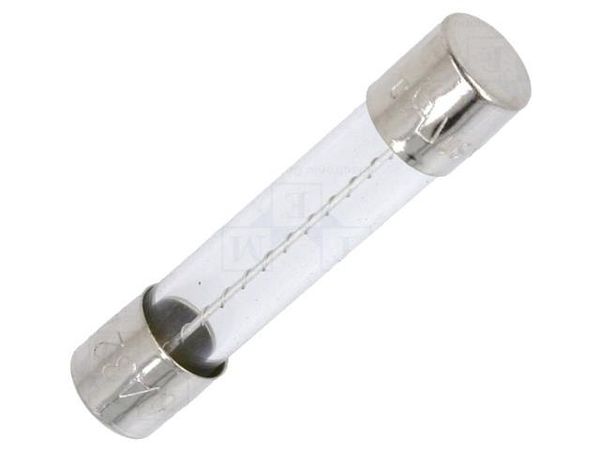

TSA-16A electronic component of Optifuse

Images are for reference only
See Product Specifications

Part No.	TSA-16A
Manufacturer:	Optifuse
Category:	Cartridge Fuses
Description:	Fuse: fuse; time-lag; 16A; 32/250VAC; glass; 6.3x32mm; brass; TSA
Datasheet:	TSA-16A Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 1.8375 ea
Line Total: USD 1.84

Availability - 162
Ship by Mon. 30 Dec to Wed. 01 Jan

MOQ: 1 Multiples: 1
Pack Size: 1

TSA-16A More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

162

Ship by Mon. 30 Dec to Wed. 01 Jan

MOQ : 1
Multiples : 1

1 : USD 1.8375
19 : USD 0.9849
50 : USD 0.9408
100 : USD 0.9261

Specifications

Manufacturer
Optifuse Optifuse

Product Category
Cartridge Fuses Cartridge Fuses

Current Rating
16 A 16 A

Category
Unclassified Unclassified

Contact Plating
nickel plated nickel plated

Contact Material
brass brass

Type Of Fuse
fuse fuse

Kind Of Fuse
glass glass

Fuse Characteristics
time - lag time - lag

Fuse Size
6.3 x 32 mm 6.3 x 32 mm

Breaking Characteristics
2I_n: max 120s 2I_n: max 120s

Breaking Capacity
200A / 250V AC 200A / 250V AC

Rated Voltage
32/250 VAC 32/250 VAC

Energy I2t
5760A²s 5760A²s

Manufacturer Series
TSA TSA

Notes:- Show Stocked Products With Similar Attributes.
