X-On Electronics has gained recognition as a prominent supplier of TSA-20A Cartridge Fuses across the USA, India, Europe, Australia, and various other global locations. TSA-20A Cartridge Fuses are a product manufactured by Optifuse. We provide cost-effective solutions for Cartridge Fuses, ensuring timely deliveries around the world.

TSA-20A Optifuse

Name: TSA-20A
Brand: Optifuse
SKU: TSA20A_Optifuse
Availability: InStock
Rating: 5 (11 reviews)

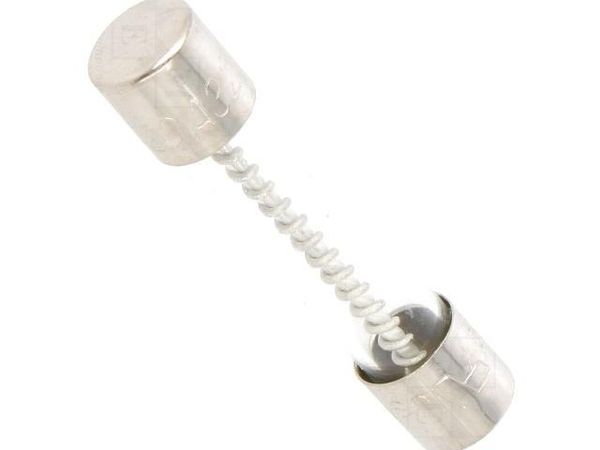

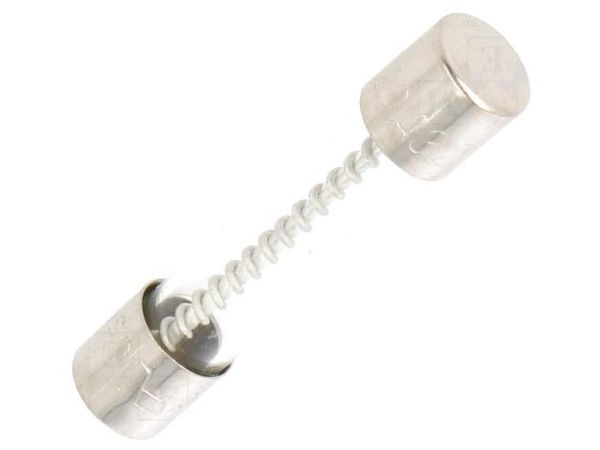

TSA-20A electronic component of Optifuse

Images are for reference only
See Product Specifications

Part No.	TSA-20A
Manufacturer:	Optifuse
Category:	Cartridge Fuses
Description:	Fuse: fuse; time-lag; 20A; 32/250VAC; glass; 6.3x32mm; brass; TSA
Datasheet:	TSA-20A Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 1.8081 ea
Line Total: USD 1.81

Availability - 65
Ship by Tue. 31 Dec to Thu. 02 Jan

MOQ: 1 Multiples: 1
Pack Size: 1

TSA-20A More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

65

Ship by Tue. 31 Dec to Thu. 02 Jan

MOQ : 1
Multiples : 1

1 : USD 1.8081
18 : USD 1.0143
49 : USD 0.9555

Specifications

Manufacturer

Optifuse Optifuse

Product Category

Cartridge Fuses Cartridge Fuses

Current Rating

20 A 20 A

Category

Unclassified Unclassified

Contact Plating

nickel plated nickel plated

Contact Material

brass brass

Type Of Fuse

fuse fuse

Kind Of Fuse

glass glass

Fuse Characteristics

time - lag time - lag

Fuse Size

6.3 x 32 mm 6.3 x 32 mm

Breaking Characteristics

2I_n: max 120s 2I_n: max 120s

Breaking Capacity

200A / 250V AC 200A / 250V AC

Rated Voltage

32/250 VAC 32/250 VAC

Energy I2t

7560A²s 7560A²s

Manufacturer Series

TSA TSA
