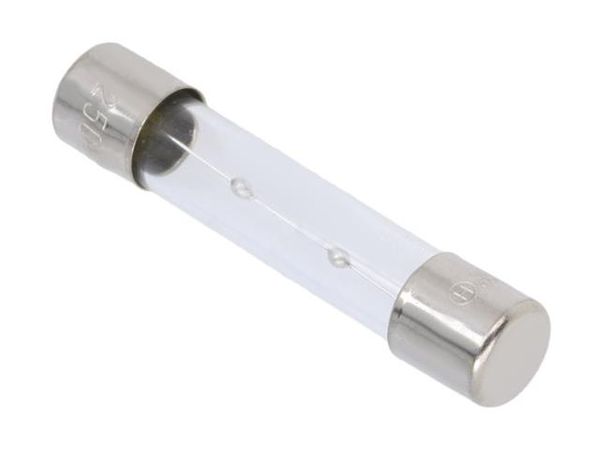

TSA-5A Optifuse

Name: TSA-5A
Brand: Optifuse
SKU: TSA5A_Optifuse
Availability: InStock
Rating: 5 (11 reviews)

Images are for reference only
See Product Specifications

Part No.	TSA-5A
Manufacturer:	Optifuse
Category:	Cartridge Fuses
Description:	Fuse: fuse; time-lag; 5A; 250VAC; glass; 6.3x32mm; brass; TSA
Datasheet:	TSA-5A Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 1.2495 ea
Line Total: USD 1.25

Availability - 35
Ship by Tue. 31 Dec to Thu. 02 Jan

MOQ: 1 Multiples: 1
Pack Size: 1

TSA-5A More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

35

Ship by Tue. 31 Dec to Thu. 02 Jan

MOQ : 1
Multiples : 1

1 : USD 1.2495
20 : USD 1.1613
27 : USD 0.6762
74 : USD 0.6321

Specifications

Manufacturer

Optifuse Optifuse

Product Category

Cartridge Fuses Cartridge Fuses

Current Rating

5 A 5 A

Category

Unclassified Unclassified

Contact Plating

nickel plated nickel plated

Rated Voltage

250 VAC 250 VAC

Contact Material

brass brass

Type Of Fuse

fuse fuse

Kind Of Fuse

glass glass

Fuse Characteristics

time - lag time - lag

Fuse Size

6.3 x 32 mm 6.3 x 32 mm

Breaking Characteristics

2I_n: max 120s 2I_n: max 120s

Breaking Capacity

200A / 250V AC 200A / 250V AC

Energy I2t

57.8A²s 57.8A²s

Manufacturer Series

TSA TSA
