PB8 Opto 22

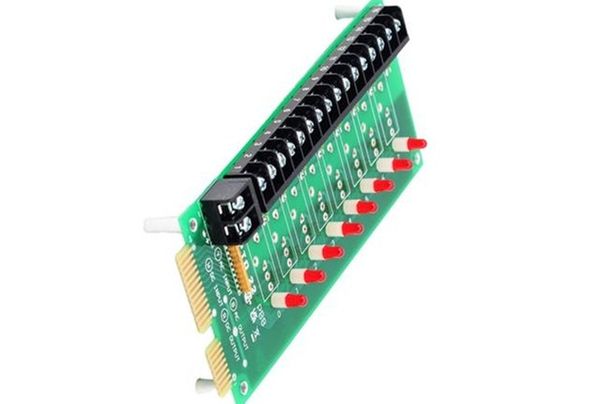

RACKS CLASSIC STANDARD DIGITAL DATA SHEET page 1/2 Form 511-030103 Part Description Number PB8 8-Channel I/O Module Rack Description The PB8 I/O mounting rack uses a 26-pin or 50-pin card edge The PB8 I/O mounting rack accommodates up to eight connector for interface to computer I/O ports. Features include Opto 22 standard (Generation 1) single channel I/O modules. an LED indicator and a plug-in fuse for each I/O module position. Dimensions Opto 22 43044 Business Park Drive Temecula, CA 92590-3614 Phone: (951) 695-3000 (800) 321-OPTO Fax: (951) 695-3095 www.opto22.com Inside Sales: (800) 321-OPTO Product Support: (800) TEK-OPTO (951) 695-3080 Fax: (951) 695-3017 E-mail: sales opto22.comRACKS CLASSIC STANDARD DIGITAL DATA SHEET page 2/2 Form 511-030103 Specifications Schematics 0 0 0 to 70 C, 95% Operating Temperature relative humidity Non-condensing Interface Connector 6-32 screw terminals Field 26- or 50-conductor edge Logic card connector Compatible I/O Module Standard (Generation 1) Family Connections 1. Even pins on control connector are connected by etch to Control Control Field common. Module (26-Pin Edge (50-Pin Edge (Terminal 2. +VCC and return connected to two point terminal strips marked Position Connector) Connector) Strip) +5V and GND. 3. At each module position on the field terminal strip, the lower 023 47 1 & 2 number is always connected to pin 1 of the I/O module. 121 45 3 & 4 219 43 5 & 6 317 41 7 & 8 415 39 9 & 10 5 13 37 11 & 12 6 11 35 13 & 14 7 9 33 15 & 16 Opto 22 43044 Business Park Drive Temecula, CA 92590-3614 Phone: (951) 695-3000 (800) 321-OPTO Fax: (951) 695-3095 www.opto22.com Inside Sales: (800) 321-OPTO Product Support: (800) TEK-OPTO (951) 695-3080 Fax: (951) 695-3017 E-mail: sales opto22.com 19912003 Opto 22. All rights reserved. All trademarks, trade names, logos, and service marks referenced herein belong to their respective companies.
