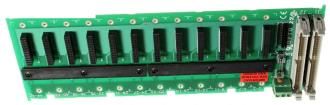

DATA SHEET SNAP D-Series Racks Form 0777-140605 SNAP D-Series Racks Features Ideal for discrete control applications Control directly or through an Opto 22 PC adapter card Use panel or DIN-rail mounting Modules snap into place Description SNAP D-series racks are designed for discrete control SNAP-D8M Rack applications and can accommodate 4, 6, 8, or 12 SNAP 4- channel digital modules. These racks use an industry-standard 50-pin header connector, which allows these racks to be used in a variety of applications. The logic side of the I/O circuitry can be controlled directly or by using an Opto 22 PCIe-AC5 (PCI Express bus), PCI-AC5 (PCI bus) or G4AC5 or AC5 (ISA bus) PC adapter card. In addition, the 4-module-position SNAP-D4M can be used with Opto 22s Classic brain boards. These boards use one of Opto 22s industry-standard protocols (mistic , Optomux , or Pamux ) to control the I/O and communicate either serially or in parallel. Field devices are wired directly to the top-mounted removable connectors on the SNAP I/O modules. The module and rack design allows modules to simply snap on and off the mounting rack. SNAP racks use a retention-rail locking system that holds modules securely to the rack. Normally, a hold-down screw is not required. However, for applications that require additional mounting security, SNAP racks have provisions for two 4-40 by -inch standard machine screws to hold each module in position. All SNAP racks offer panel mounting and the option of DIN-rail mounting. SNAP racks use a single 5 VDC power source. Part Numbers Part Description SNAP-D4M 4-module rack SNAP-D6M 6-module rack SNAP-D8M 8-module rack SNAP-D12M 12-module rack Classic digital brain board DIN rail SNAP-CDBBDIN adapter SNAP-FUSE1AB 1 amp fuse, 25-pack SNAP PAC rack DIN-rail adapter SNAP-TEX-DRC10 clip, 10-pack Narrow end cap for SNAP PAC racks SNAP-TEX-REC10N DIN-rail assemblies, 10-pack Opto 22 43044 Business Park Drive Temecula, CA 92590-3614 www.opto22.com PAGE SALES 800-321-6786 951-695-3000 FAX 951-695-3095 sales opto22.com SUPPORT 800-835-6786 951-695-3080 FAX 951-695-3017 support opto22.com 1 20092014 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.SNAP D-Series Racks Specifications: SNAP-D4M (4 Module Position) Power Schematic Module Mating Connector Pinout (female) Module holding screw 4-40 typical Control Connector (50-pin male) Operating Requirements 5 VDC 0.1 VDC 200 mA max. Module Channel J1 Control Power Requirements (700 mA with brain board) Position Position Connector Operating Temperature Range 0 to 70C 047 Relative Humidity 95%, non-condensing 145 0 243 341 Notes: 439 1. Even pins on control connectors are connected to 5V RTN. 537 1 2. Pin 1 of control connectors J1 and J2 is connected to +5V 635 through jumper JP1. 733 3. Pin 49 of control connectors J1 and J2 is connected to +5V 831 through jumper JP2. 929 4. For operation with PC adapter cards (PCIe-AC5, PCI-AC5, 2 AC5, or G4AC5), remove jumpers JP1 and JP2. 10 27 5. Odd numbered pins 3 through 15 of control connectors 11 25 are not used. 12 23 13 21 3 14 19 15 17 Opto 22 43044 Business Park Drive Temecula, CA 92590-3614 www.opto22.com PAGE SALES 800-321-6786 951-695-3000 FAX 951-695-3095 sales opto22.com SUPPORT 800-835-6786 951-695-3080 FAX 951-695-3017 support opto22.com 2 20092014 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations. DATA SHEET SNAP D-Series Racks Form 0777-140605
