X-On Electronics has gained recognition as a prominent supplier of OSL10396-LW LED Displays & Accessories across the USA, India, Europe, Australia, and various other global locations. OSL10396-LW LED Displays & Accessories are a product manufactured by Optosupply. We provide cost-effective solutions for LED Displays & Accessories, ensuring timely deliveries around the world.

OSL10396-LW Optosupply

Name: OSL10396-LW
Brand: Optosupply
SKU: OSL10396LW_Optosupply
Availability: InStock
Rating: 5 (11 reviews)

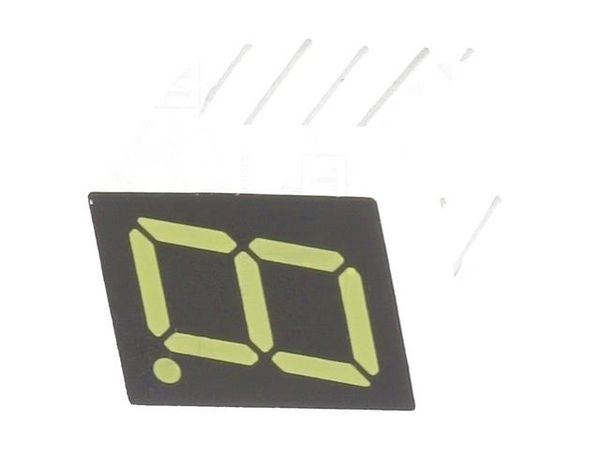

OSL10396-LW electronic component of Optosupply

Images are for reference only
See Product Specifications

Part No.	OSL10396-LW
Manufacturer:	Optosupply
Category:	LED Displays & Accessories
Description:	Display: LED; 7-segment; 10mm; 0.39; No.char: 1; white; 65mcd
Datasheet:	OSL10396-LW Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 1.064 ea
Line Total: USD 1.06

Availability - 2783
Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

OSL10396-LW More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

2783

Ship by Tue. 26 Nov to Thu. 28 Nov

MOQ : 1
Multiples : 1

1 : USD 1.064
10 : USD 0.889
24 : USD 0.7168
66 : USD 0.6776

Specifications

Manufacturer
Optosupply Optosupply

Product Category
LED Displays & Accessories LED Displays & Accessories

Mounting
THT THT

Terminal Pitch
2.54mm 2.54mm

Colour
white white

Operating Current
20 mA 20 mA

Row Pitch
7.62mm 7.62mm

Common Electrode
cathode cathode

Type Of Display
LED LED

Digit Height
0.39 0.39

Colour Temperature
5500 - 8500 K 5500 - 8500 K

Luminosity
65mcd 65mcd

Kind Of Display
7 - segment 7 - segment

Number Of Characters
1 1

Dimensions
12.9x10mm 12.9x10mm

Notes:- Show Stocked Products With Similar Attributes.
