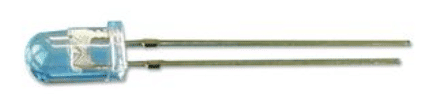

OSA Opto Light GmbH Koepenicker Str. 325b, Haus 201 D-12555 Berlin Fon: +49 (0)30 6576 2683 Fax: +49 (0)30 6576 2681 contact osa-opto.com Product Data Sheet Rev. 01 aus 2011 LED Lamp UV EOLD-355-525 Radiation Type Case Ultra violet resin mold packaged 5mm plastic lens Description: Dimension in mm High power, high-speed, narrow beam angle, high reliablitiy Maximum Ratings T = 25C, unless otherwise specified amb Parameter Test Conditions Symbol Value Unit Forward Current I 25 mA F Peak forward current (d. c.<1/10, p. width<0.1msec) I 100 mA FM Reverse current V = 5V I 85 mA R R P Power dissipation 100 mW D T Operating temp. range -30 to +80 C amb Storage temp. range T -30 to +85 C stg Lead soldering temp. < 5s, 3mm from case T 260 C slg Optical and Electrical Characteristics T = 25C, unless otherwise specified amb Parameter Symbol Conditions Min typ max Unit Forward voltage V I = 20mA 3.0 3.6 4.2 V F F Radiant Power I = 20mA 1.2 mW e F Peak wavelength I = 20mA 353 360 nm p F I = 20mA Viewing angle 15 deg. F Spectral bandwidth at I = 20mA 15 nm 0,5 F 50% We reserve the right to make changes to improve technical design and may do so without further notice. Parameters can vary in different applications. All operating parameters must be validated for each customer application by the customer.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for osa opto light manufacturer: Other Similar products are found below : OLS 330 MY EOLD-355-525 EOLD-1550-525 OIS-330-IT940-T OLS-330GC525-X-T OIS 150 880 OLS 330 MG 525 OCU 400-UC375 OLS-153MSD/GC525-T OIS-330-740-X-T OIS-330-IT855-T OLS 330 EG 525 OIS-150-IT940-T OLS 330 MB 460 OIS 170 880 OIS 330 770 OLS-336BA460-X-TU OLS 159 SR/G
