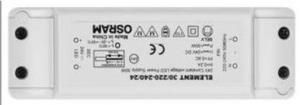

OPTOTRONIC LED Power Supply Product Data Sheet ELEMENT 30/220-240/24 Constant Voltage LED Power Supply 24V The reliable choice for the decorative lighting, compact size and well tested by Osram quality standards, fits all flex applications in retails, hotel, restaurants and industries. Benefits Compatible with OSRAM Flex High efficiency up to 86% Class II design for wide applications Excellent price/quality/watt ratio Applications Hospitality decorative lighting night light Restaurants decorative lighting Shops decorative lighting, shelf lighting Residential cove lighting, under cabinet lighting L: 140mm Housing material: plastic, grey Approval marks (Under preparation if not shown on label) L1: 126mm W: 45mm W1: 33.4mm H: 27.5mm D: 3.2mm R: 2.1mm Product Features 24V constant output voltage Overload protection SELV Over temperature protection Short circuit protection Output power up to 30W Mains voltage 220 240V Wide ta range: -20+45 C High efficiency up to 86% Case temperature up to 85 C 50000 h lifetime at tc = 75 C 3 years Guarantee 1 Edition: Feb 2017 Ver.: 1.2 Status: Preliminary Misprints and technical changes excepted Element LED Power Supply Product Data Sheet Electrical Specifications Item Value Unit Remarks Nominal voltage 220 240 V AC Nominal frequency 50 - 60 Hz AC voltage range 198 264 V AC Nominal current 0.2 A Total Harmonic Distortion (THD) < 20 % Full load, 220-240 V, 50 Hz Power factor > 0.9 Load from 15W to 30W at 220-240V, 50Hz Efficiency 86 % Full load, 220-240 V, 50 Hz Protection class II Inrush current <8 A pk Th = 0,1 ms Max. units per circuit breaker B16: 28 B10:17 I max = 7.1 A Touch current < 0.7 mA Nominal voltage range 24 V DC Minimum voltage 23.3 V DC Maximum voltage 25 V DC Voltage ripple (typical) < 6 % peak-to-peak Nominal power range 5 30 W Maximum power 30 W Galvanic isolation SELV Ambient temperature range t -20 +45 C a Maximum case temperature t 85 C Measured on t point indicated of the product label c c Max. case temp. in fault condition 110 C Storage temperature range -20 +80 C Cool down before operating Relative humidity 5 ... 95 % Not condensing Surge transient protection 1 kV L/N Environmental rating Indoor IP rating IP 20 Mains switching cycles > 50000 10 sec on, 10 sec off Expected lifetime 30000 hrs t = 85C c 50000 hrs t = 75C c Protections Output short circuit protection: short circuit current is limited to approx. 1.9 A without damage to the unit and for unlimited time. Be sure the load is designed to withstand the short circuit current as well. Output overload protection: the unit is intrinsically protected against over loading because the output current is limited. Over temperature protection: the unit is protected against temporary overheating by shut down the unit. The protection is automatically reversible, without mains switchover. Wiring Diagram H03VVH2-F 2x0.75mm cable is recommended. For other cable up to 1.5mm, please make sure cable fulfill IEC 60598-1 clause 5.2 requirement and installed by professional electrician. Ordering information EAN40 Product name EAN10 Pieces / box ELEMENT 30/220-240/24 4052899463776 4052899463783 20 Manufacturers address: Technical support: OSRAM Gmbh Kunden Service Center Germany Steinerne Furt 62 +49 (0)89-6213-60 00 D-86167 Augsburg Germany www.osram.com 2 Edition: Feb 2017 Ver.: 1.2 Status: Preliminary Misprints and technical changes excepted ENVIRONMENT OUTPUT INPUT
