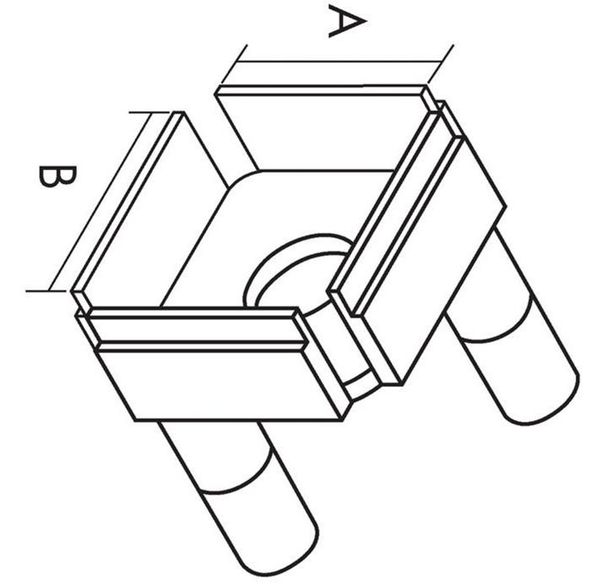

mT-100 ANd TP-100 SmT REmO vAl TIPS TIP SPECIfICATIONS mT-100 TIPS TIP - CHIP/SOT REMOVAL COMPONENT TYPE SIZE - A SIZE - B PART NUMBER Chip (fig.A) 0.2mm (.008) 0.2mm (.008) 1124-1001-P1 (fig.A) Chip, SOT (fig.B) 0.7mm (.03) 0.5mm (.03) 1124-1002-P1 Chip, SOT (fig.B) 0.7mm (.03) 1mm (.04) 1124-1003-P1 (fig.B) Chip, SOT (fig.B) 0.7mm (.03) 2mm (.08) 1124-1004-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (.03) 6mm (.24) 1124-1005-P1 (fig.C) SOIC, SOT, TSOPS (fig.C) 0.7mm (.03) 8mm (.31) 1124-1006-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (.03) 10mm (.39) 1124-1007-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (.03) 13mm (.51) 1124-1008-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (.03) 18mm (.74) 1124-1009-P1 SOIC, SOT, TSOPS (fig.C) 0.7mm (.03) 28mm (1.09) 1124-1010-P1 TP-100 TIPS TIPS TYPE LEAD COUNT SIZE - A SIZE - B COMPONENT COMPONENT PART NUMBER HEIGHT FOOTPRINT 1124-2001-P1 LQFP/TQFP 80 12mm (.472 ) 12mm (.472 ) 1.4mm 2.0mm 64, 80, 100, A LQFP/TQFP 14mm (.551 ) 14mm (.551 ) 1.4mm 2.0mm 1124-2002-P1 120, 128, 168 LQFP/TQFP 128, 144, 160, 176 20mm (.788 ) 20mm (.788 ) 1.4mm 2.0mm 1124-2003-P1 B LQFP/TQFP 176, 216 24mm (.945 ) 24mm (.945 ) 1.4mm 2.0mm 1124-2004-P1 1124-2005-P1 LQFP/TQFP 208, 256 28mm (1.10 ) 28mm (1.10 ) 1.4mm 2.0mm 1124-2006-P1 QFP 52, 64, 80, 100 14mm (.551 ) 14mm (.551 ) 2.7mm 3.2mm 1124-2007-P1 QFP 52, 64, 80, 100 14mm (.551 ) 14mm (.551 ) 2.7mm 3.9mm QFP 64, 80, 100, 128 14mm (.551 ) 20mm (.788 ) 2.7mm 3.2mm 1124-2008-P1 QFP 64, 80, 100, 128 14mm (.551 ) 20mm (.788 ) 2.7mm 3.9mm 1124-2009-P1 120, 128, 144, QFP 28mm (1.10 ) 28mm (1.10 ) 3.4mm 2.6/3.2mm 1124-2010-P1 160, 208 QFP 160 28mm (1.10 ) 28mm (1.10 ) 3.4mm 3.9mm 1124-2011-P1 Page 22 w w w.paceworldwide.comX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Pace manufacturer: Other Similar products are found below : 1309-0018-P50 8883-0111-P5 6010-0150-P1 8007-0522 6993-0153-P1 1121-0528-P5 1121-0690-P5 1124-1004-P1 40210008-03 1128- 0012-P1 1128-0002-P1 1121-0564-P5 1121-0416-P1 1121-0336-P5 6993-0254-P1 1130-0011-P1 1131-0013-P1 6993-0317-P1 6993-0319- P1 8007-0510 1207-0362-06-P1 6010-0107-P1 1121-0335-P5 1121-0359-P5 1121-0933-P5 1265-0011-P1 1265-0009-P1 1128-0013-P1 1124-1005-P1 1121-0941-P5 1121-0680-P5 1121-0357-P5 1130-0016-P1 1131-0037-P1 1131-0054-P1 6010-0166-P1 6993-0267-P1 1121- 0003-P2 1121-0313-P1 1124-0003 1124-1006-P1 1131-0003-P1 8883-0931 1121-0626-P5 1128-0001-P1 1124-0001-P1 1121-0830-P5 1131-0002-P1 6993-0316-P1 8883-0290
