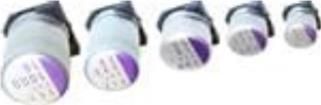

Conductive Polymer Aluminum Solid Capacitors Surface Mount Type SVF series Features High voltage (50 V max.) Large capacitance (1000 F max.) 125 1000 h RoHS compliance, Halogen free Specifications Size code B6 C6 E7 E12 F10 F12 Category temp. range 55 to +125 Rated voltage range 16 V to 25 V 16 V to 50 V 16 V 16 V to 50 V Nominal cap.range 27 F to 82 F 10 F to 180 F 18 F to 270 F 39 F to 560 F 1000 F 68 F to 1000 F Capacitance tolerance 20 % (120 Hz / +20 ) DC leakage current Please see the attached characteristics list Dissipation factor (tan ) Please see the attached characteristics list +125 1000 h, rated voltage applied Capacitance change Within 20 % of the initial value Endurance Dissipation factor (tan) 200 % of the initial limit DC leakage current Within the initial limit +60 , 90 % to 95 % RH, 1000 h, No-applied voltage Capacitance change Within 20 % of the initial value Damp heat (Steady state) Dissipation factor (tan) 150 % of the initial limit DC leakage current Within the initial limit (after voltage processing) Marking Dimensions (not to scale) 0.2 max. W Polarity marking () Lot No. Series code* L R Unit Size +0.1 R. capacitance *2 D0.5 L W0.2 H0.2 C0.2 R P -0.4 code R. voltage (F) (V) 0.6 to 0.8 B6 5.0 5.9 5.3 5.3 6.0 1.4 C6 6.3 5.9 6.6 6.6 7.3 0.6 to 0.8 2.1 0.6 to 0.8 E7 8.0 6.9 8.3 8.3 9.0 3.2 E12 8.0 11.9 8.3 8.3 9.0 0.8 to 1.1 3.2 *1 0.8 to 1.1 F10 10.0 10.3 10.3 11.0 4.6 10.0 * Depends on the case size. F12 10.0 12.6 10.3 10.3 11.0 0.8 to 1.1 4.6 *1 : 0.5, *2 : Reference Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 28-Jun-19 D H P CSVF series Characteristics list Case size Specifications Standard (Reel size : 380) (mm) Rated Rated capacitance Size Allowable Min. voltage Ripple *4 (20 %) code *2 ripple LC Packaging ESR *3 (V) *1 D L tan Part number current *1 (F) Q ty (m max.) current (A (mA rms) (pcs) (mA rms) 82 5.0 5.9 B6 940 3000 27 0.12 262 16SVF82M 1500 180 6.3 5.9 C6 1040 3300 22 0.12 576 16SVF180M 1000 270 8.0 6.9 E7 1040 3300 22 0.12 864 16SVF270M 1000 16 560 8.0 11.9 E12 1560 4950 14 0.12 1792 16SVF560M 400 10.0 10.0 F10 1350 4300 16 0.12 3200 16SVF1000MX 500 1000 10.0 12.6 F12 1700 5400 12 0.12 3200 16SVF1000M 400 56 5.0 5.9 B6 880 2800 30 0.12 224 20SVF56M 1500 120 6.3 5.9 C6 1010 3200 25 0.12 480 20SVF120M 1000 20 180 8.0 6.9 E7 1010 3200 25 0.12 720 20SVF180M 1000 390 8.0 11.9 E12 1560 4950 14 0.12 1560 20SVF390M 400 560 10.0 12.6 F12 1700 5400 12 0.12 2240 20SVF560M 400 27 5.0 5.9 B6 770 2450 40 0.12 135 25SVF27M 1500 47 6.3 5.9 880 2800 30 0.12 235 25SVF47M 1000 C6 56 6.3 5.9 880 2800 30 0.12 280 25SVF56M 1000 25 82 8.0 6.9 940 3000 28 0.12 410 25SVF82M 1000 E7 100 8.0 6.9 1010 3200 24 0.12 500 25SVF100M 1000 180 8.0 11.9 E12 1470 4650 16 0.12 900 25SVF180M 400 330 10.0 12.6 F12 1580 5000 14 0.12 1650 25SVF330M 400 22 6.3 5.9 C6 820 2600 35 0.12 154 35SVF22M 1000 39 8.0 6.9 E7 880 2800 30 0.12 273 35SVF39M 1000 35 82 8.0 11.9 E12 1260 4000 20 0.12 574 35SVF82M 400 120 10.0 12.6 F12 1390 4400 18 0.12 840 35SVF120M 400 10 6.3 5.9 C6 790 2500 40 0.12 100 50SVF10M 1000 18 8.0 6.9 E7 850 2700 35 0.12 180 50SVF18M 1000 50 39 8.0 11.9 E12 1200 3800 25 0.12 390 50SVF39M 400 68 10.0 12.6 F12 1350 4300 20 0.12 680 50SVF68M 400 *1: Ripple current (100 kHz / +105 < Tx +125 ) /Allowable ripple current (100 kHz / Tx +105 ) *2: ESR (100 kHz to 300 kHz / +20 ) *3: tan (120 Hz / +20 ) *4: After 2 minutes Please refer to each page in this catarog for Reflow conditions and Taping specifications. Frequency correction factor for ripple current Frequency(f) 120 Hz f < 1 kHz 1 kHz f < 10 kHz 10 kHz f < 100 kHz 100 kHz f < 500 kHz Coefficient 0.05 0.3 0.7 1 Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 28-Jun-19
