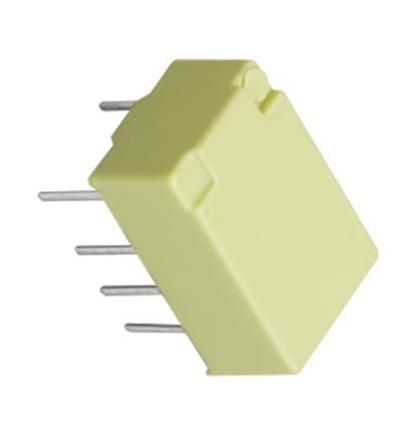

AGQ20T2H Panasonic

High sensitivity, 100 mW Nominal operating power, GQ RELAYS (AGQ) 2 Form C and 2 A Compact at body type relays FEATURES TYPICAL APPLICATIONS 1. High capacity: 2 A 1. Telephone switchboard 2. Flat compact size 2. Telecommunications equipment 10.6 (L) 7.2 (W) 5.2 (H) mm 3. Security .417 (L) .283 (W) .205 (H) inch 4. Measurement equipment 3. High sensitivity single side stable 5. Consumer electronic and audio type (Nominal operating power: visual equipment 100mW) is available 4. Outstanding surge resistance. 1,500 V 10160 s (FCC part 68) (open contacts) RoHS compliant 2,500 V 210 s (Telcordia) (contact and coil) 5. The use of twin crossbar contacts ensures high contact reliability AgPd contact is used because of its good sulde resistance. Adopting low- gas molding material. Coil assembly molding technology which avoids generating volatile gas from coil. ORDERING INFORMATION AGQ 2 0 Contact arrangement 2: 2 Form C Operating function 0: Single side stable 1: 1 coil latching 6: High sensitivity single side stable type Type of operation 0: Standard type (B.B.M.) Terminal shape Nil: Standard PC board terminal A: Surface-mount terminal A type S: Surface-mount terminal S type Nominal coil voltage (DC) 1H: 1.5V 03: 3V 4H: 4.5V 06: 6V 09: 9V 12: 12V 24: 24V Packing style Nil: Tube packing X: Tape and reel packing (picked from 1/2/3/4 pin side) Z: Tape and reel packing (picked from 5/6/7/8 pin side) ASCTB7E 201407-T 1GQ (AGQ) TYPES 1. Standard PC board terminal Single side stable 1 coil latching High sensitivity single side stable Nominal coil voltage Part No. Part No. Part No. 1.5 V DC AGQ2001H AGQ2101H AGQ2601H 3 V DC AGQ20003 AGQ21003 AGQ26003 4.5 V DC AGQ2004H AGQ2104H AGQ2604H 6 V DC AGQ20006 AGQ21006 AGQ26006 9 V DC AGQ20009 AGQ21009 AGQ26009 12 V DC AGQ20012 AGQ21012 AGQ26012 24 V DC AGQ20024 AGQ21024 AGQ26024 Standard packing: Tube: 50 pcs.; Case: 1,000 pcs. 2. Surface-mount terminal 1) Tube packing Single side stable 1 coil latching High sensitivity single side stable Nominal coil voltage Part No. Part No. Part No. 1.5 V DC AGQ2001H AGQ2101H AGQ2601H 3 V DC AGQ20003 AGQ21003 AGQ26003 4.5 V DC AGQ2004H AGQ2104H AGQ2604H 6 V DC AGQ20006 AGQ21006 AGQ26006 9 V DC AGQ20009 AGQ21009 AGQ26009 12 V DC AGQ20012 AGQ21012 AGQ26012 24 V DC AGQ20024 AGQ21024 AGQ26024 : For each surface-mounted terminal identication, input the following letter. A type: A, S type: S Standard packing: Tube: 50 pcs.; Case: 1,000 pcs. 2) Tape and reel packing Single side stable 1 coil latching High sensitivity single side stable Nominal coil voltage Part No. Part No. Part No. 1.5 V DC AGQ2001HZ AGQ2101HZ AGQ2601HZ 3 V DC AGQ20003Z AGQ21003Z AGQ26003Z 4.5 V DC AGQ2004HZ AGQ2104HZ AGQ2604HZ 6 V DC AGQ20006Z AGQ21006Z AGQ26006Z 9 V DC AGQ20009Z AGQ21009Z AGQ26009Z 12 V DC AGQ20012Z AGQ21012Z AGQ26012Z 24 V DC AGQ20024Z AGQ21024Z AGQ26024Z : For each surface-mounted terminal identication, input the following letter. A type: A, S type: S Standard packing: Tape and reel: 900 pcs.; Case: 1,800 pcs. Notes: 1. Tape and reel packing symbol -Z is not marked on the relay. X type tape and reel packing (picked from 1/2/3/4-pin side) is also available. 2. Please inquire if you require a relay, between 1.5 and 24 V DC, with a voltage not listed. RATING 1. Coil data 1) Single side stable type Nominal operating Nominal coil Pick-up voltage Drop-out voltage Coil resistance Nominal operating Max. applied voltage current voltage (at 20C 68F) (at 20C 68F) [10%] (at 20C 68F) power (at 20C 68F) [10%] (at 20C 68F) 1.5 V DC 93.8 mA 16 3 V DC 46.7 mA 64.2 4.5 V DC 31 mA 145 150%V of 140 mW 75%V or less of 10%V or more of nominal voltage 6 V DC 23.3 mA 257 nominal voltage* nominal voltage* 9 V DC 15.5 mA 579 (Initial) (Initial) 12 V DC 11.7 mA 1,028 120%V of 24 V DC 9.6 mA 2,504 230 mW nominal voltage 2) 1 coil latching type Nominal operating Nominal coil Set voltage Reset voltage Coil resistance Nominal operating Max. applied voltage current voltage (at 20C 68F) (at 20C 68F) [10%] (at 20C 68F) power (at 20C 68F) [10%] (at 20C 68F) 1.5 V DC 66.7 mA 22.5 3 V DC 33.3 mA 90 4.5 V DC 22.2 mA 202.5 75%V or less of 75%V or less of 100 mW 150%V of 6 V DC nominal voltage* nominal voltage* 16.7 mA 360 nominal voltage (Initial) (Initial) 9 V DC 11.1 mA 810 12 V DC 8.3 mA 1,440 24 V DC 5.0 mA 4,800 120 mW *Pulse drive (JIS C 5442-1996) ASCTB7E 201407-T 2
