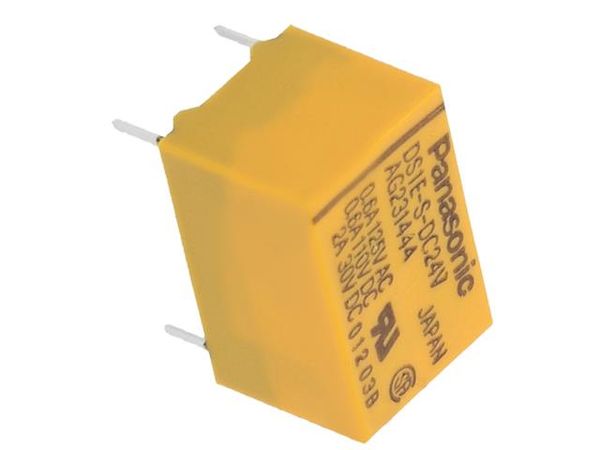

DS Long seller backed by product variety and DS RELAYS high reliability FEATURES 1. Breakthrough height of 9.8 mm .386 5. Polarized magnetic circuits realize inch beats the 10 mm .394 inch limit resistance to shock and vibration 1c and 2c all have the same height High-performance polarized magnetic (9.8 mm .386 inch). The width of the circuits that utilize the energy of relay is also the same (9.9 mm .390 permanent magnets have made it inch). Since the only size variable is possible to create relays with strong the length, the shared form makes resistance to shock and vibration. mounting on printed printing wiring 6. DIL terminal array enables use of IC boards easy. sockets 2. Suitable for use in difcult 7. Widening scope of application with environments multicontact latching Epoxy resin seals the parts and cut off In addition to single side stable types, the external atmosphere, thus enabling you can take advantage of the memory of functions of convenient 1 coil or 2 use in difcult environments. coil latching relays. 3. Can be used with automatic solder RoHS compliant and automatic wash systems Automatic soldering and automatic washing can be carried out once the TYPICAL APPLICATIONS parts are mounted on PC boards. 4. Gold-clad twin contacts ensure high Besides telecommunications, measuring reliability devices, ofce equipment, computers Highly stable gold cladding on the and related equipment, DS relays are contacts ensures that contact also recommended for a broad range of resistance changes little over time. applications including business devices, Furthermore, the use of twin contacts, audio systems, and industrial equipment. a conguration that performs with superior contact reliability, ensures extremely low contact failure rates even under low level loads. ORDERING INFORMATION DS E Contact arrangement 1: 1 Form C 2: 2 Form C Sensitivity S: 200 mW nominal operating power Operating function Nil: Single side stable L: 1 coil latching L2: 2 coil latching Nominal coil voltage DC 1.5, 3, 5, 6, 9, 12, 24, 48 V Note: 1 coil latching type are manufactured by lot upon receipt of order. ASCTB17E 201201-T Panasonic Corporation Automation Controls Business Unit industrial.panasonic.com/ac/eDS TYPES 1. High sensitivity type Single side stable type 2 coil latching type Contact Nominal coil arrangement voltage Part No. Part No. 1.5V DC DS1E-S-DC1.5V DS1E-SL2-DC1.5V 3V DC DS1E-S-DC3V DS1E-SL2-DC3V 5V DC DS1E-S-DC5V DS1E-SL2-DC5V 6V DC DS1E-S-DC6V DS1E-SL2-DC6V 1 Form C 9V DC DS1E-S-DC9V DS1E-SL2-DC9V 12V DC DS1E-S-DC12V DS1E-SL2-DC12V 24V DC DS1E-S-DC24V DS1E-SL2-DC24V 48V DC DS1E-S-DC48V DS1E-SL2-DC48V 3V DC DS2E-S-DC3V DS2E-SL2-DC3V 5V DC DS2E-S-DC5V DS2E-SL2-DC5V 6V DC DS2E-S-DC6V DS2E-SL2-DC6V 2 Form C 9V DC DS2E-S-DC9V DS2E-SL2-DC9V 12V DC DS2E-S-DC12V DS2E-SL2-DC12V 24V DC DS2E-S-DC24V DS2E-SL2-DC24V 48V DC DS2E-S-DC48V DS2E-SL2-DC48V Standard packing: Tube: 50 pcs. Case: 500 pcs. Note: 1 coil latching type are manufactured by lot upon receipt of order. RATING 1. Coil data 1) Single side stable type Nominal operating Coil resistance Nominal coil Pick-up voltage Drop-out voltage Nominal operating Max. applied voltage Type current 10% 10% voltage (at 20C 68F) (at 20C 68F) power (at 50C 122F) (at 20C 68F) (at 20C 68F) 1.5V DC 133.3mA 11.3 3V DC 66.7mA 45 1 Form C: 1 Form C: 5V DC 80%V or less of 40.0mA 125 160%V of High nominal voltage 10%V or more of nominal voltage 6V DC 33.3mA 180 sensitivity 2 Form C: nominal voltage 200mW 9V DC 22.2mA 405 (S) type 70%V or less of (Initial) 2 Form C: 12V DC nominal voltage 16.7mA 720 200%V of (Initial) nominal voltage 24V DC 8.3mA 2,880 48V DC 4.2mA 11,520 2) 2 coil latching type Nominal operating Coil resistance Nominal operating current 10% 10% Nominal coil Set voltage Reset voltage Max. applied voltage power Type (at 20C 68F) (at 20C 68F) voltage (at 20C 68F) (at 20C 68F) (at 50C 122F) Set coil Reset coil Set coil Reset coil Set coil Reset coil 1.5V DC 120mA 120mA 12.5 12.5 1 Form C: 1 Form C: 3V DC 60mA 60mA 50 50 1 Form C: 80%V or less of 80%V or less of 5V DC 36mA 36mA 139 139 160%V of nominal voltage nominal voltage High nominal voltage 6V DC 30mA 30mA 200 200 sensitivity 180mW 180mW 2 Form C: 2 Form C: 9V DC 20mA 20mA 450 450 (S) type 2 Form C: 70%V or less of 70%V or less of 12V DC 15mA 15mA 800 800 200%V of nominal voltage nominal voltage nominal voltage 24V DC 7.5mA 7.5mA 3,200 3,200 (Initial) (Initial) 48V DC 3.75mA 3.75mA 12,800 12,800 ASCTB17E 201201-T Panasonic Corporation Automation Controls Business Unit industrial.panasonic.com/ac/e
