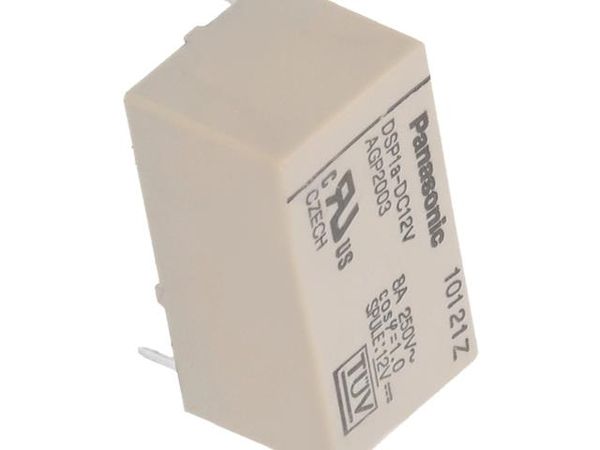

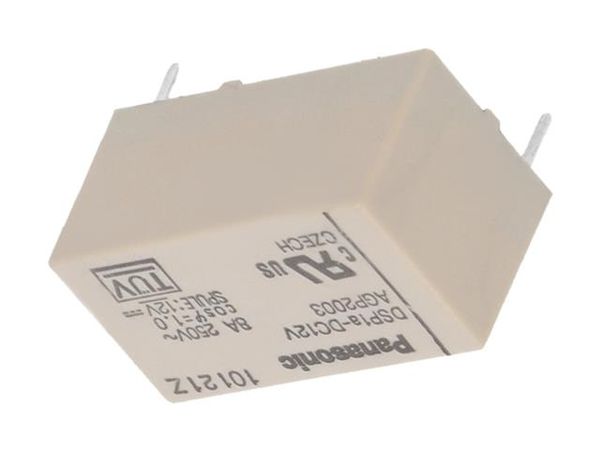

Part No.DSP1A12D
Manufacturer: Panasonic
Category: General Purpose Relays
Description: Electromechanical Relay 12VDC 480Ohm 5ADC/8AAC SPST-NO (( 20.2mm 11mm 10.5mm)) THT Power Relay
Datasheet: DSP1A12D Datasheet (PDF)
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)
1: USD 9.436 ea
Line Total: USD 9.44
Availability - 19
Ship by Fri. 27 Dec to Tue. 31 Dec
MOQ: 1  Multiples: 1
Pack Size: 1
Availability Price Quantity
19
Ship by Fri. 27 Dec to Tue. 31 Dec
MOQ : 1
Multiples : 1
1 : USD 9.436
3 : USD 7.224
