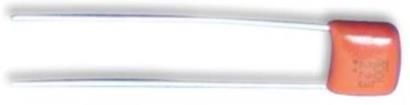

ECQV1H273JL Panasonic

p P1 32 12.11.14 20:49 y W 29 Plastic Film Capacitors Stacked Metallized Plastic Film Capacitor Type: ECQV(L)/(M) Designed for high density insertion applications. Features Small size and large capacitance Excellent electric characteristics in non-inductive construction Wide range for automatic insertion RoHS directive compliant Recommended Applications General purpose Noise suppression for logic circuit Explanation of Part Numbers 12 34 56 789 10 11 12 E C Q V J Product code Dielectric & Rated voltage Capacitance Cap. Tol. Suffix Suffix construction 1H 50 VDC L 50 VDC Suffix Lead Form Blank Straight 1J 63 VDC 63 VDC M 1 100 VDC 100 VDC W Crimped lead A Cut lead 2 Straight taping (Ammo) 3 Crimped taping (Ammo) Specifications Category temp. range 40 C to +105 C (Including temperature-rise on unit surface) 50 VDC, 63 VDC, 100 VDC Rated voltage (Derating of rated voltage by 2.5 %/C at more than 85 C) Capacitance range 0.010 F to 2.2 F Capacitance tolerance 5 %(J) < Dissipation factor (tan ) tan 1.0 % (20 C, 1 kHz) = Withstand voltage Between terminals : Rated volt. (VDC) 150 % 60 s < > C 0.33 F : IR 3000 M 20 C, 50 VDC, 60 s ECQV1H, ECQV1J = = Insulation resistance (IR) () > : C>0.33 F IR 1000 M . F 20 C, 100 VDC, 60 s ECQV1 = In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage, please refer to the page of Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage. Dimensions in mm (not to scale) Packaging Specifications for Bulk Package Packing quantity:100 pcs./bag Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use. Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail. Stacked Metallized Filmp P1 32 12.11.14 20:49 y W 30 Plastic Film Capacitors Taping Specifications for Automatic Insertion Taping style Refer to the page of taping specifications. Packaging Specifications Lead Spacing Style Lead Spacing Taping style Cap. range Type Rated volt. Packing suffix (F) AD 5.0 mm AD AS BC D E 0.010 to 2.2 Ammo JL3 AS 5.0 mm ECQV (L) 50 VDC 0.010 to 1.0 Ammo JL2 See the column Ammo 0.010 to 1.0 JM3 63 VDC Rating, Dimensions 0.010 to 0.15 Ammo JM2 ECQV (M) & Quantity Box for 0.010 to 0.47 Ammo JM3 100 VDC packing quantity. Ammo 0.010 to 0.10 JM2 Rating, Dimensions & Quantity/Ammo Box or Reel Type ECQV(L) Rated voltage : 50 VDC Dimensions (mm) Min. order Q ty Cap. max. Part No. H F S max. max. (F) d L T Taping Bulk Straight Crimped lead Straight Crimped lead ECQV1H103JL( ) 0.010 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H123JL( ) 0.012 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H153JL( ) 0.015 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H183JL( ) 0.018 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H223JL( ) 0.022 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H273JL( ) 0.027 7.3 3.2 5.0 9.0 5.0 5.0 0.50 2000 ECQV1H333JL( ) 0.033 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H393JL( ) 0.039 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H473JL( ) 0.047 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H563JL( ) 0.056 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H683JL( ) 0.068 7.3 3.2 5.0 9.0 5.0 5.0 0.50 ECQV1H823JL( ) 0.082 7.3 3.6 5.0 9.0 5.0 5.0 0.50 ECQV1H104JL( ) 0.10 7.3 4.0 5.0 9.0 5.0 5.0 0.50 ECQV1H124JL( ) 0.12 7.3 4.0 5.0 9.0 5.0 5.0 0.50 500 ECQV1H154JL( ) 0.15 7.3 4.4 5.5 9.5 5.0 5.0 0.50 ECQV1H184JL( ) 0.18 7.3 4.5 5.5 9.5 5.0 5.0 0.50 ECQV1H224JL( ) 0.22 7.3 4.8 5.5 9.5 5.0 5.0 0.50 ECQV1H274JL( ) 0.27 7.3 4.6 7.0 11.0 5.0 5.0 0.50 ECQV1H334JL( ) 0.33 7.3 5.2 7.0 11.0 5.0 5.0 0.50 ECQV1H394JL( ) 0.39 7.3 5.7 7.3 11.3 5.0 5.0 0.50 ECQV1H474JL( ) 0.47 7.3 6.0 7.3 11.3 5.0 5.0 0.50 1000 ECQV1H564JL( ) 0.56 7.3 5.8 10.0 14.0 5.0 5.0 0.50 ECQV1H684JL( ) 0.68 7.3 6.5 10.0 14.0 5.0 5.0 0.50 ECQV1H824JL( ) 0.82 7.3 6.8 10.0 14.0 5.0 5.0 0.50 ECQV1H105JL( ) 1.0 7.3 8.0 11.015.05.0 5.0 0.50 ECQV1H125JL( ) 1.2 10.2 6.5 10.014.0 7.5 5.0 0.50 ECQV1H155JL( ) 1.5 10.2 7.2 10.014.0 7.5 5.0 0.50 ECQV1H185JL( ) 1.8 10.2 7.2 12.016.5 7.5 5.0 0.50 ECQV1H225JL( ) 2.2 10.2 7.9 12.016.5 7.5 5.0 0.50 Style N:0.010 F to 1.0 F Suffix for lead crimped or taped type Style T:1.2 F to 2.2 F Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use. Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
