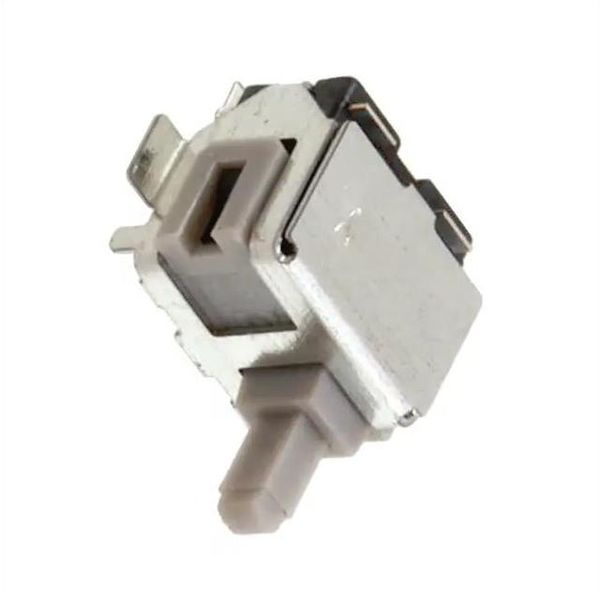

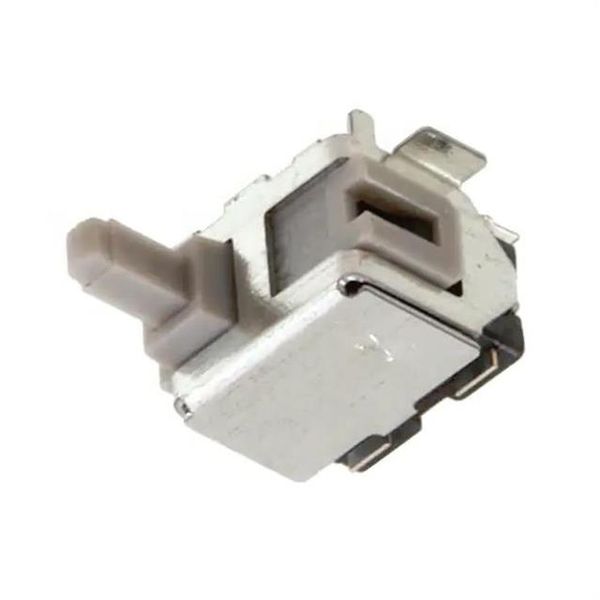

ESE-11MH3 Panasonic

Detector Switches/ESE11 ESE11 Detector Switches Type: ESE11 Features Wide range of customizable featur es including operational directions Light operating force Wide available range for re ow soldering Recommended Ap pli ca tions Detection of media in portable electronic equipment Explanation of Part Numbers 1 2 3 4 567 8 9 Rating 50 A 3 V DC to 10 mA 5 V DC (Resistive load) Contact Resistance 500 m max. (Initial) Insulation Resistance 100 M min. (at 100 V DC for 1 minute) Dielectric Withstanding Voltage 100 V AC (50 Hz or 60 Hz) for 1 minute Operating Force 350 mN max. (Full Travel) ESE11SV Type 4.9 mm ESE11MV Type 4.9 mm Mounting Height ESE11SH Type 5.25 mm ESE11MH Type 4.25 mm ESE11HS, SF Type 3.6 mm Poles and Throws 1-pole 1-throw ESE11SV Type 6.1 mm (2.4 mm) ESE11MV Type 6.1 mm (2.4 mm) Full Travel (Pushing distance) ESE11SH Type 3.0 mm (2.4 mm) ESE11MH Type 1.7 mm (2.4 mm) ESE11HS, SF Type 6.3 mm (2.4 mm) Operating Life 50,000 cycles min. Temperature Range 10 C to +70 C (Standard), 40 C to +85 C (Automotive) Heat Resistance +80 C for 96 hours Low Temperature Resistance 25 C for 96 hours Humidity Resistance +40 C 90 % to 95 % RH for 96 hours Panasonic Corporation 2017 ANCTB52E 201712-Fd 1 +0.05 1.25 0 4 1.10 +0.05 0 2- 1.3 Hole Detector Switches/ESE11 ESE11SV ESE11MV ESE11SH 200 pcs. ESE11MH Polyethylene Bag (Bulk) ESE11HS Minimum Quantity/Packing Unit ESE11SF ESE11MVT 800 pcs. (Excluding : ESE11MV2) Embossed Taping (Reel Pack) 1,500 pcs. ESE11MHT Embossed Taping (Reel Pack) ESE11SV ESE11MV ESE11SH 10,000 pcs. ESE11MH Polyethylene Bag (Bulk) ESE11HS Quantity/ ESE11SF Carton ESE11MVT 4,800 pcs. (Excluding : ESE11MV2) Embossed Taping (Reel Pack) 9,000 pcs. ESE11MHT Embossed Taping (Reel Pack) Dimensions in mm (not to scale) No. 1 ESE11SV1 For wave soldering No. 2 ESE11MV1 For re ow soldering 1-pole 1-throw 1-pole 1-throw 1.51.75 1.0 5.2 5.2 6.4 6.4 A A 1.65 2.45 Full travel 1.27 1.27 Full travel 1.0 1.0 ON starting 0.8 ON starting position position 0.1 1.0 0 0 1.2 0.1 1.20.1 1.65 0.1 1.75 2.3 0.95 (3.3) 1.85 1.4 1.4 Lever center 2.3 0.95 3.25 (2.45) 3.35 PWB mounting hole for reference PWB mounting hole for reference A A View from View from Panasonic Corporation Electromechanical Control Business Division Panasonic Corporation 2017 ANCTB52E 201712-Fd 2 industrial.panasonic.com/ac/e/ Vertical Type 2.2 1.0 4.9 1.0 3.3 3.0 (2.7) 8.5 6.1 7.75 4.9 1.0 2.2 3.0 1.0 8.5 0.2 1.4 2.0 2.0 1.4 0.8 6.1 7.75
