MAM1T92Z11 Panasonic

Name: MAM1T92Z11
Brand: Panasonic
SKU: MAM1T92Z11_Panasonic
Availability: InStock
Rating: 5 (11 reviews)

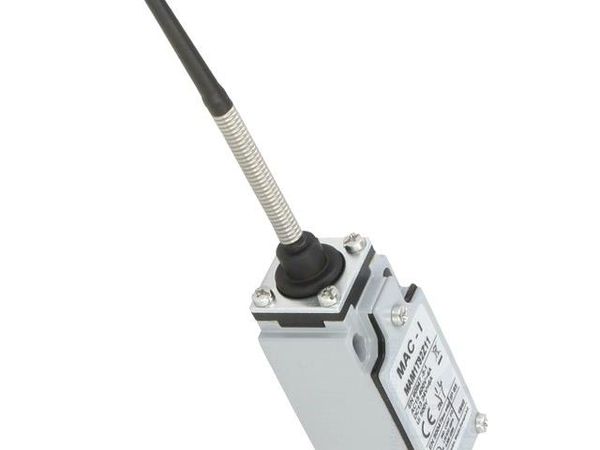

MAM1T92Z11 electronic component of Panasonic

Images are for reference only
See Product Specifications

Part No.	MAM1T92Z11
Manufacturer:	Panasonic
Category:	Limit Switches
Description:	Limit switch; NO + NC; 10A; max.400VAC; max.250VDC; PG13,5; IP66
Datasheet:	MAM1T92Z11 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 25.7691 ea
Line Total: USD 25.77

Availability - 4
Ship by Wed. 12 Mar to Fri. 14 Mar

MOQ: 1 Multiples: 1
Pack Size: 1

MAM1T92Z11 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

4

Ship by Wed. 12 Mar to Fri. 14 Mar

MOQ : 1
Multiples : 1

1 : USD 25.7691
2 : USD 24.3726

Specifications

Manufacturer

Panasonic Panasonic

Product Category

Limit Switches Limit Switches

IP Rating

IP66 IP66

Body Material

Metal Metal

Switches Features

Snap Action Contacts Snap Action Contacts

Connection

PG13,5 PG13,5

Kind Of Actuator

Plastic Plunger On Spring Loaded Element, Total Length 115Mm Plastic Plunger On Spring Loaded Element, Total Length 115Mm

Output Configuration

NO + NC NO + NC

Type Of Sensor

Limit Switch Limit Switch

Contact Current Max.

10 A 10 A

Number Of Mounting Holes

2 2

Operating Temperature

- 25 To 70 C - 25 To 70 C

Switched Voltage

Max . 400 VAC , Max . 250 VDC Max . 400 VAC , Max . 250 VDC

Ac Contacts Rating @R

3.1A / 230V AC 3.1A / 230V AC

Dc Contacts Rating @R

0.27A / 250V DC 0.27A / 250V DC

Body Dimensions

30.3X32.5X55mm 30.3X32.5X55mm

Mounting Holes Pitch

20...22Mm 20...22Mm

Notes:- Show Stocked Products With Similar Attributes.
