ISTPHCH1MGY Panduit

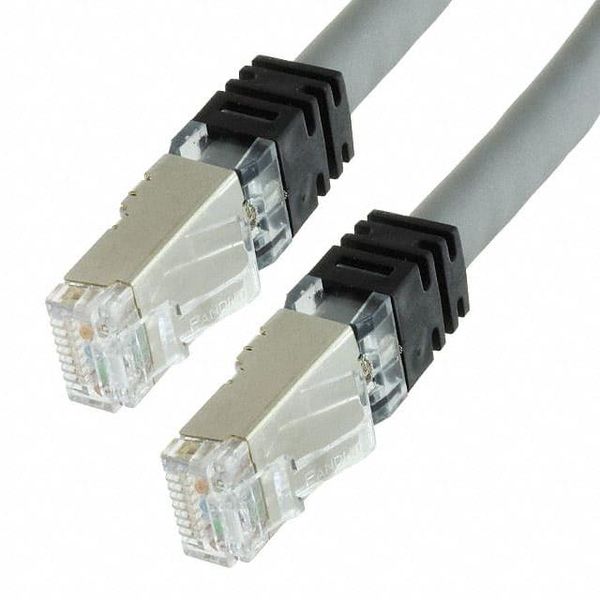

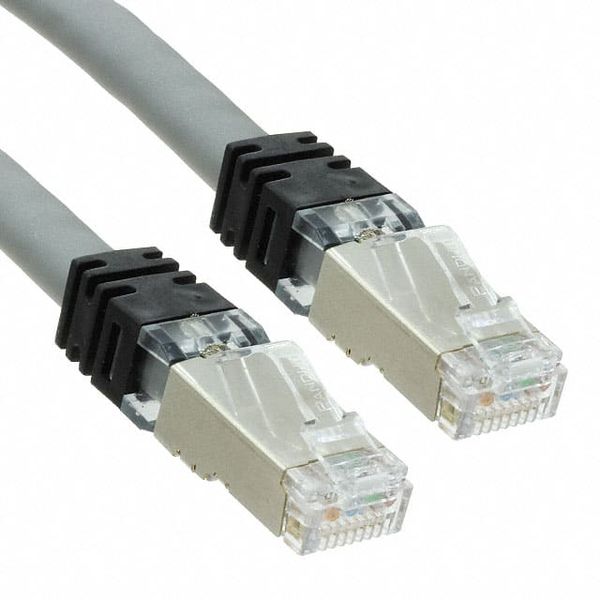

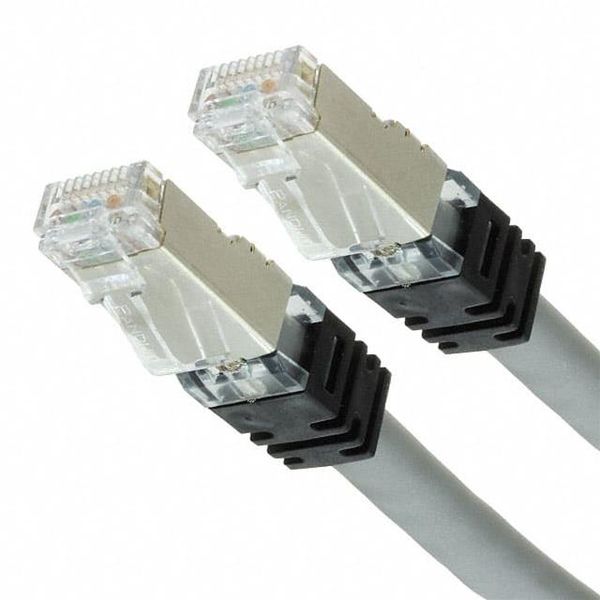

2 1 THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP. NOTES: **1. SEE CURRENT CATALOG FOR VARIOUS APPLICATIONS. TWIST TIE 2. SEE CATALOG FOR A COMPLETE LIST OF PARTS APPLICABLE FOR USE WITH THIS PART. 3. TERMINATED WITH (8 POSITION) SHIELDED MODULAR PLUGS AT BOTH ENDS PER T568B. 4. CONSTRUCTED WITH 24 AWG STRANDED CAT 5E FULLY SHIELDED TWISTED PAIR TYPE CMX OUTDOOR-CM SF/UTP PATCH CABLE. 5. CABLE JACKET DIAMETER IS 0.285 IN (7.24MM) NOMINAL 6. MATERIALS: PLUG: POLYCARBONATE PLUG SHIELD: PLATED CARTRIDGE BRASS CABLE SHIELD: ALUMINUM BOOT: TPE TABLE 1 B TABLE 2 B T568B WIRING SCHEME CABLE COLOR OPTIONS PLUG POSITION CABLE WIRE 1 WHITE/ORANGE CABLE COLORS ** = COLOR 2 ORANGE 3 WHITE/GREEN TEAL TL 4 BLUE 5 WHITE/BLUE BLACK BL 6 GREEN RED RD 7 WHITE/BROWN 8 BROWN YELLOW YL IDENTIFICATION LABEL STRAIN RELIEF BOOT GRAY GY BLUE BU S6 S6 TANGLE-FREE LATCH SHIELD MODULAR PLUG PLUG POSITION 1 SEE SHEET 2 FOR PATCH CORD LENGTHS AND PART NUMBERS TITLE INDUSTRIAL ETHERNET CAT5E SHIELDED PATCH CORD A A (600V RATED) WITH RJ45 CONNECTIVITY CUSTOMER DRAWING ITEM REVISION NAME 13M438AG/03 DATASET FILE NAME 13M438AG DC02/03A MATERIAL: UNLESS OTHERWISE SPECIFIED, DIMENSIONAL TOLERANCES ARE: IN mm SEE NOTES .X .XXX .1 2.54 .005 .127 .XX ANGLES .01 .25 5 DRAWING NUMBER: THIRD ANGLE 06 10-11-17 JBO NWW MARK ADDED PART NUMBERS 13M438AG-02 PROJECTION 13M438AG-02 SIZE DRAWN BY DATE CHK SCALE REV DATE BY CHK APR DESCRIPTION ECN BJN 1-16-14 DCS NONE SHT 1 OF 2 A 2 1 D10100DA/142 1 THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP. INDUSTRIAL ETHERNET CAT5E SHIELDED PATCH CORD (600V RATED) WITH RJ45 CONNECTIVITY TABLE 3 PANDUIT PART NUMBERS CONDUCTOR MIN. CABLE INSULATOR PART NUMBER LENGTH ISTPHCH0.3M** 0.3 METERS 4X TWISTED PAIR CONDUCTOR WIRE B B ISTPHCH0.6M** 0.6 METERS ISTPHCH1M** 1 METER FOAM TAPE ISTPHCH1.5M** 1.5 METER BRAID ISTPHCH2M** 2 METERS ISTPHCH2.5M** 2.5 METERS ISTPHCH3M** 3 METERS FOIL SHIELD ISTPHCH3.5M** 3.5 METERS ISTPHCH4M** 4 METERS JACKET ISTPHCH4.5M** 4.5 METERS ISTPHCH5M** 5 METERS CROSS-SECTIONAL VIEW OF CABLE ISTPHCH7M** 7 METERS ISTPHCH10M** 10 METERS ISTPHCH15M** 15 METERS ISTPHCH20M** 20 METERS ISTPHCH25M** 25 METERS TITLE ISTPHCH40M** 40 METERS INDUSTRIAL ETHERNET CAT5E SHIELDED PATCH CORD A A (600V RATED) WITH RJ45 CONNECTIVITY CUSTOMER DRAWING ITEM REVISION NAME 13M438AG/03 DATASET FILE NAME 13M438AG DC02/03A MATERIAL: UNLESS OTHERWISE SPECIFIED, DIMENSIONAL TOLERANCES ARE: IN mm .X .XXX .1 2.54 .005 .127 .XX ANGLES .01 .25 5 DRAWING NUMBER: THIRD ANGLE 06 10-11-17 JBO NWW MARK SEE SHEET 1 FOR REVISION CONTROL 13M438AG-02 PROJECTION 13M438AG-02 DRAWN BY DATE CHK SCALE SIZE REV DATE BY CHK APR DESCRIPTION ECN BJN 1-16-14 DCS NONE SHT 2 OF 2 A 2 1 D10100DA/14
