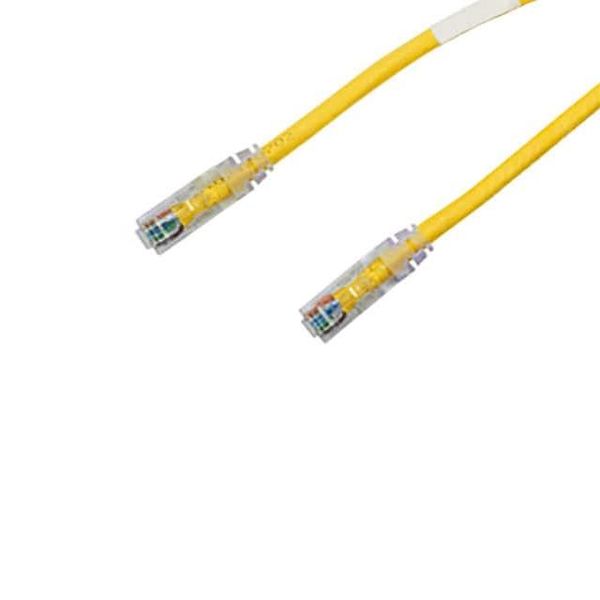

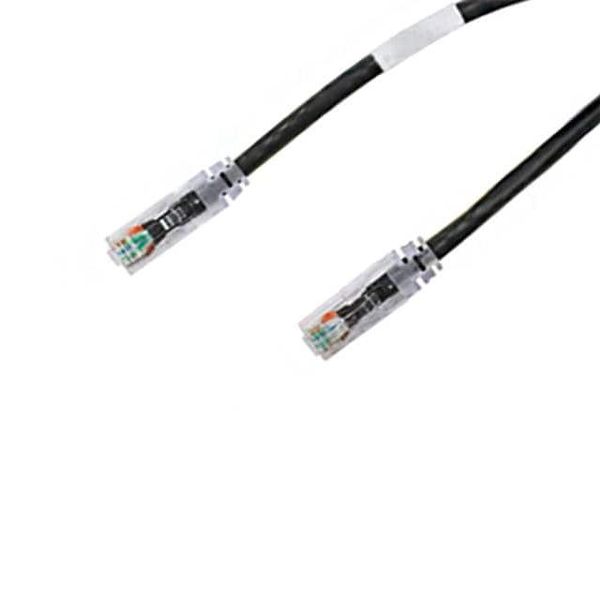

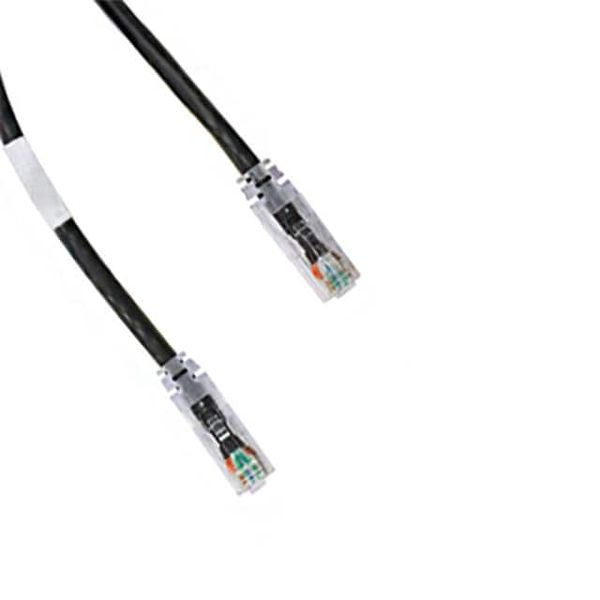

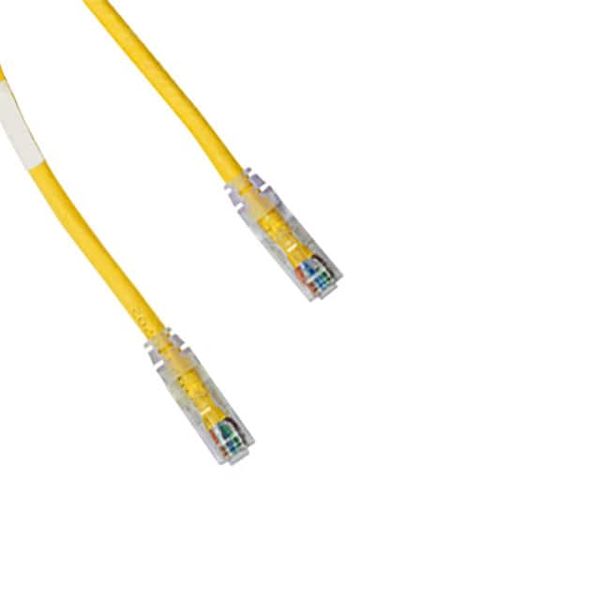

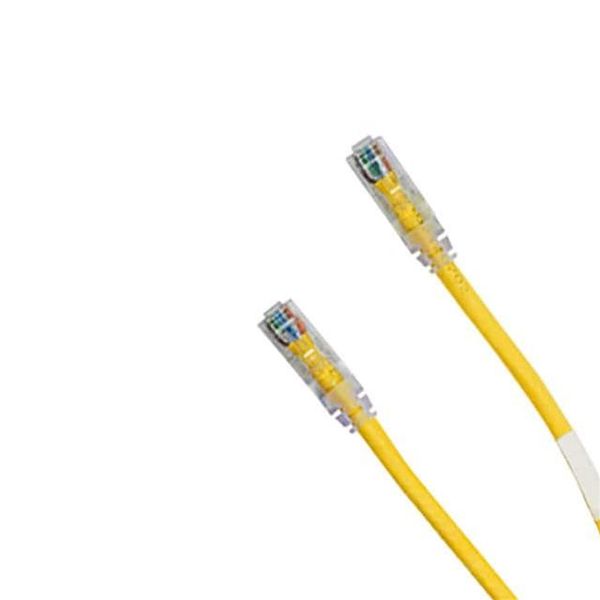

NetKey Category 6 UTP Patch Cords DATA SHEET specifications Category 6/Class E patch cords are constructed of UTP 24 AWG stranded copper cable and a modular plug at each end. Patch cords are used NetKey Network Components in all work area outlets and patch panels. Patch cords are wired to be compatible with both T568A NetKey Category 6 Patch Cords and T568B wiring schemes. Foot lengths: NK6PC3*Y Meter lengths: NK6PC1M Y NetKey Category 6 Jack Modules Module: NK688M** Convenience technical information pack of 25 modules: NK688M**-Q Category 6/Class E Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E performance: channel requirements at swept frequencies up to 250 MHz NetKey Category 6 Punchdown Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6 Patch Panels component requirements at swept frequencies up to 250 MHz 12-port: NK6PPG12WY Cable diameter: 0.235 in. (6.0mm) nominal 24-port, 1 RU: NK6PP24P 48-port, 2 RU: NK6PP48P FCC compliance: Complies with ANSI/TIA-1096A (formerly FCC Part 68) contacts plated with 50 microinches of gold *For standard lengths other than 3 feet (5, 7, 10, 14 or 20) change the length designation in IEC compliance: Meets IEC 60603-7 part number to the desired length. For standard cable colors other than Off White, add suffix PoE compliance: Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and BU (Blue), GR (Green), RD (Red), or YL (Yellow) before the Y at the end of the part type 4 PoE applications number. For example, the part number for a Safety compliance: blue 5 foot patch cord is NK6PC5BUY. cULus Listed UL 1863 and CAN/CSA-C22.2 (UL File E129886) RoHS compliance: Compliant For standard lengths other than 1 meter (2, 3, 4 or 5) change the length designation in part Flammability rating: CM rated number to the desired length. For standard cable colors other than Off White, add suffix BU (Blue), GR (Green), RD (Red), or YL (Yellow) before the Y at the end of the part number. For example, the part number for a blue 5 meter patch cord is NK6PC5MBUY. key features and benefits **To designate a color, add suffix IW (Off 100% performance Confidence that each patch cord delivers specified performance White), EI (Electric Ivory), IG (Intl Gray), WH (White), BL (Black), OR (Orange), RD (Red), tested BU (Blue), GR (Green), or YL (Yellow). Patented tangle free Prevents snags and provides easy release latch Slender strain relief Provides easy access in high-density applications boot Identification Provides identification of performance level, length, and quality control number for future traceability Variety of colors and Meets individual length and color-coding requirements lengths available applications Applications include: Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token Ring 4/16 Voice over internet protocol (VoIP) www.panduit.com NetKey Category 6 UTP Patch Cords Strain relief boot Tangle free Modular plug latch WORLDWIDE SUBSIDIARIES AND SALES OFFICES PANDUIT CANADA PANDUIT EUROPE LTD. PANDUIT SINGAPORE PTE. LTD. PANDUIT JAPAN PANDUIT LATIN AMERICA PANDUIT AUSTRALIA PTY. LTD. Markham, Ontario London, UK Republic of Singapore Tokyo, Japan Guadalajara, Mexico Victoria, Australia cs-cdn panduit.com cs-emea panduit.com cs-ap panduit.com cs-japan panduit.com cs-la panduit.com cs-aus panduit.com Phone: 800.777.3300 Phone: 44.20.8601.7200 Phone: 65.6305.7575 Phone: 81.3.6863.6000 Phone: 52.33.3777.6000 Phone: 61.3.9794.9020 For a copy of Panduit product warranties, log on to www.panduit.com/warranty For more information 2015 Panduit Corp. Visit us at www.panduit.com ALL RIGHTS RESERVED. Contact Customer Service by email: cs panduit.com NKDS31--WW-ENG or by phone: 800.777.3300 6 /2015
