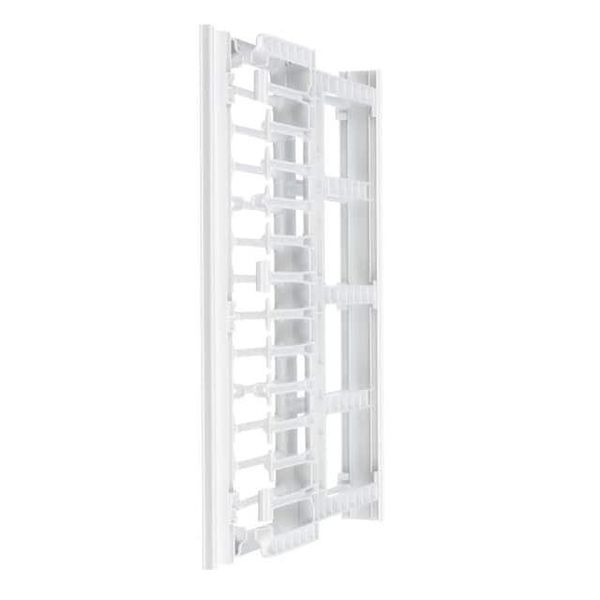

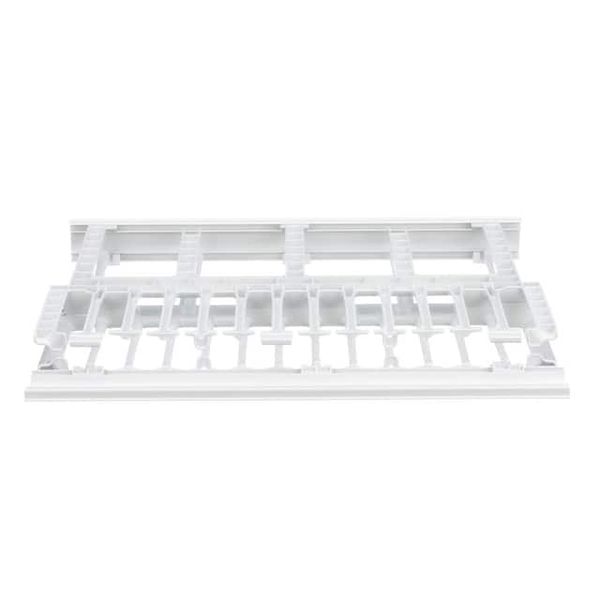

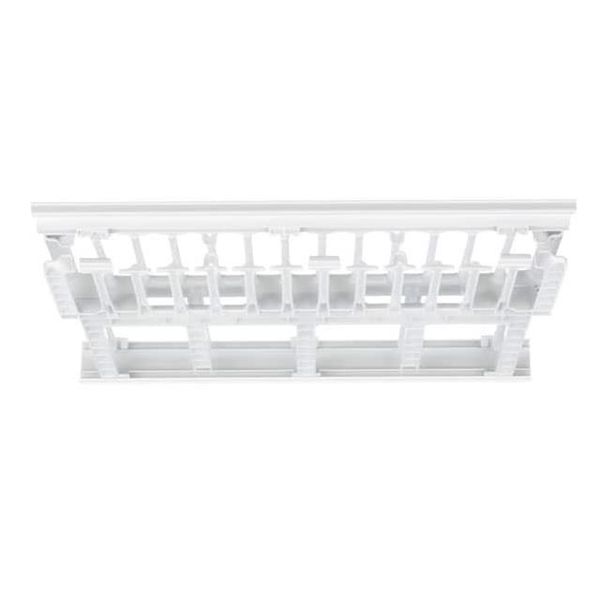

NetManager High Capacity Horizontal Cable Managers SPECIFICATION SHEET specifications NetManager High Capacity The high capacity horizontal cable managers shall Horizontal Cable Managers be capable of managing high performance cable on the front and rear of any 19 EIA rack. The high Front and Rear capacity horizontal cable managers shall be molded 1 RU manager, plastic with bend radius fingers that protect the front and rear: NM1* cable. The fingers shall be inset towards the rack to 2 RU manager, allow easy access to patch cords and terminations. front and rear: NM2* Standard pass through holes shall incorporate bend 3 RU manager, radius control. Dual hinged covers shall allow front and rear: NM3* access to the cable pathway. 4 RU manager, front and rear: NM4* technical information Front Only 1 RU manager Height Width Depth front only: NMF1* Part Number RU in (mm) in (mm) in (mm) 2 RU manager front only: NMF2* NM1 1 1.7 (44) 19 (482) 13.1 (332) 3 RU manager NM2 2 3.5 (88) 19 (482) 13.1 (332) front only: NMF3* 4 RU manager NM3 3 5.2 (133) 19 (482) 13.1 (332) front only: NMF4* NM4 4 7.0 (177) 19 (482) 13.1 (332) Front to Rear Pass NMF1 1 1.7 (44) 19 (482) 6.2 (157) Through Blanking Panels NMF2 2 3.5 (88) 19 (482) 6.2 (157) 1 RU: NM1B 2 RU: NM2B NMF3 3 5.2 (133) 19 (482) 6.2 (157) 3 RU: NM3B NMF4 4 7.0 (177) 19 (482) 6.2 (157) 4 RU: NM4B NetRunner Vertical Managers key features and benefits Front and rear vertical manager: WMPVHC45E Inset fingers Fingers slope inward offering greater access to network Front only cabling for easier moves, adds, and changes vertical manager: WMPVHCF45E Deep channel opening Provides increased cable capacity in less rack space Panduit Racks 2 Post EIA Standard Front finger spacing Wide front finger openings easily accommodate Rack 7 19 Width Category 6A and Category 6 copper cables speeding with 12-24 installation and reducing maintenance costs threaded rails: R2P* 4 post rack 7 30 Rear finger spacing Rear cable management finger spacing utilizes open depth with 12-24 D-rings for greater accessibility threaded rails: R4P * 4 post rack 7 23 Dual hinged cover Opens 110 degrees to the top or bottom to provide depth with 12-24 complete access to the horizontal pathway without having threaded rails: R4P23 to remove the cover 4 post rack 7 36 depth with 12-24 Flush appearance with Used together to improve data center and telecommunication threaded rails: R4P36 * NetRunner High Capacity room aesthetics 4 post rack 7 42 Vertical Cable Manager depth with 12-24 threaded rails: R4P42 Panel Extender Brackets applications 1 RU: PEB1 2 RU: PEB2 Panduit NetManager High Capacity provide the user with a horizontal cable *Part number shown as Black. Add Suffix WH Horizontal Cable Managers provide an efficient management solution that simplifies cable for White. way to manage high performance copper, fiber routing in a finished professional appearance. For racks with cage nut rails, addC to end optic, or coaxial cables on any 19 rack. Fixed When used with Panduit Mini-Com Patch of part number. inset fingers on the front and back allow easier Panels, patch cords, vertical cable managers, access to the ports for moves, adds, and and racks, the user receives a total system changes. Fixed bend radius fingers organize that satisfies functional and aesthetic and protect patch cords as they exit patch requirements for data centers and panels and as they transition into the vertical telecommunications rooms. pathway. All of these features combine to www.panduit.com NetManager High Capacity Horizontal Cable Managers 1.7 3.5 44 88 19.0 19.0 482 5.5 482 5.5 13.1 140 13.1 140 332 332 NM1 NM2 7.0 5.2 177 133 19.0 19.0 482 482 5.5 5.5 13.1 140 13.1 140 332 332 NM3 NM4 3.5 1.7 19.0 88 44 19.0 482 482 6.2 6.2 157 157 NMF1 NMF2 5.2 7.0 133 177 19.0 19.0 482 482 6.2 6.2 157 157 NMF3 NMF4 Dimensions are in inches. Dimensions in brackets are metric. WORLDWIDE SUBSIDIARIES AND SALES OFFICES Dimensions are in inches (Dimensions in parentheses are metric) PANDUIT CANADA PANDUIT EUROPE LTD. PANDUIT SINGAPORE PTE. LTD. PANDUIT JAPAN PANDUIT LATIN AMERICA PANDUIT AUSTRALIA PTY. LTD. Markham, Ontario London, UK Republic of Singapore Tokyo, Japan Guadalajara, Mexico Victoria, Australia cs-cdn panduit.com cs-emea panduit.com cs-ap panduit.com cs-japan panduit.com cs-la panduit.com cs-aus panduit.com Phone: 800.777.3300 Phone: 44.20.8601.7200 Phone: 65.6305.7575 Phone: 81.3.6863.6000 Phone: 52.33.3777.6000 Phone: 61.3.9794.9020 For a copy of Panduit product warranties, log on to www.panduit.com/warranty 2018 Panduit Corp. For more information ALL RIGHTS RESERVED. Printed in the U.S.A. Visit us at www.panduit.com RKSP149-WW-ENG Contact Customer Service by email: cs panduit.com Replaces WW-RKSP23 12/2018 or by phone: 800.777.3300
